Military
Insulated
Terminals

Filter

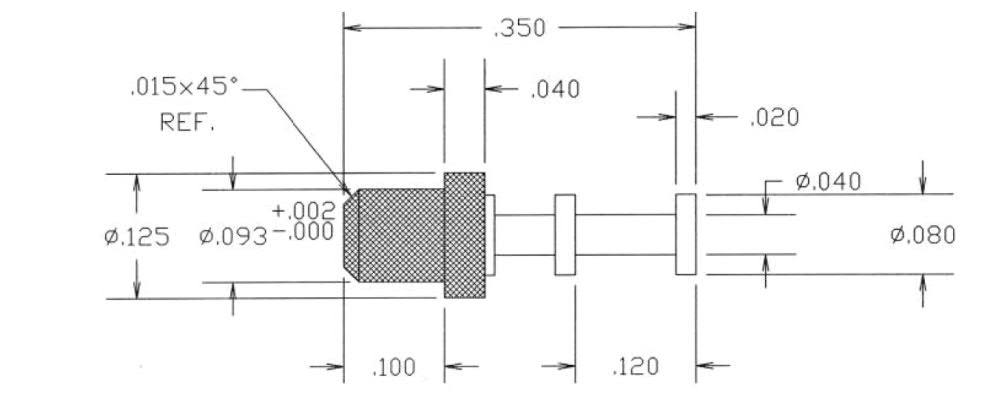

1102-03M-09517Z
1102-03M-09517Z
1102-03M-09517Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/077C03 AA59126/077C03

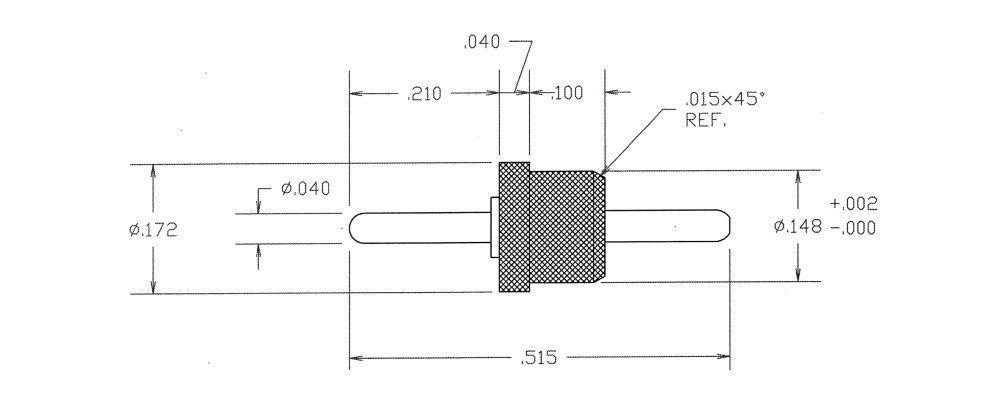

1110-21M-0515Z
1110-21M-0515Z
1110-21M-0515Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035B02 AA59126/035B02

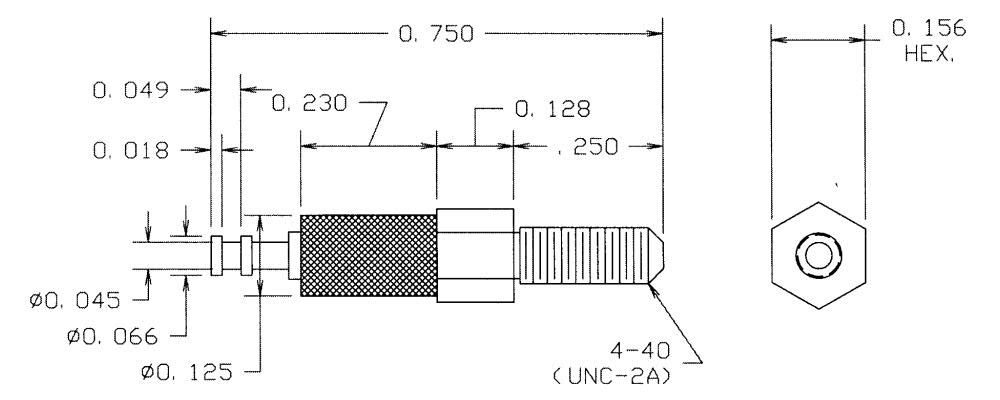

1125-43M-09517
1125-43M-09517
1125-43M-09517
0.750" - 4-40 Nut 1/8 0.120 PTFE Violet M55155/097I01 AA59126/097I01

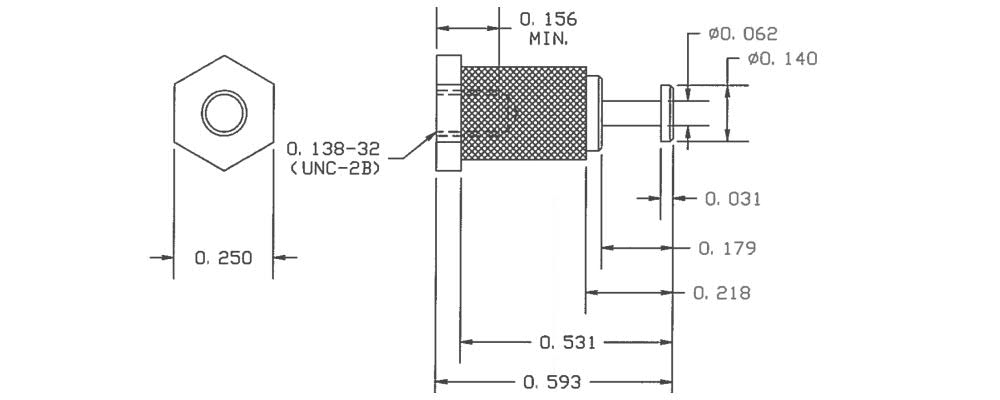

1127-03M-0516Z
1127-03M-0516Z
1127-03M-0516Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/196B03 AA59126/196B03

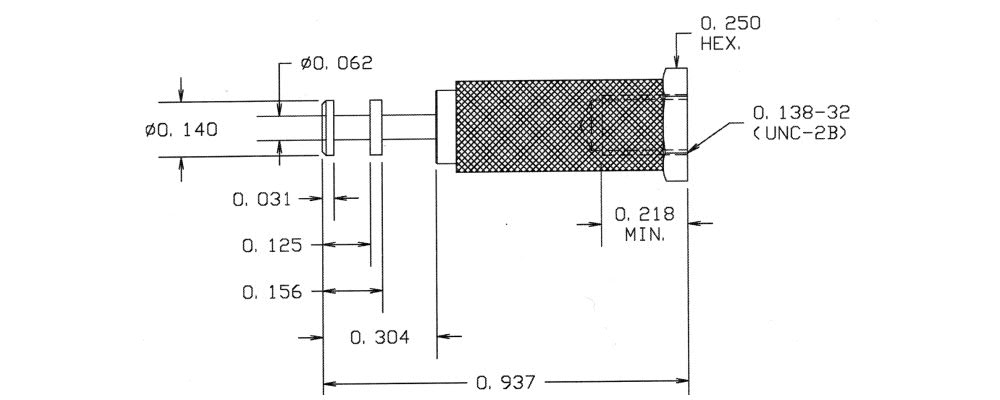

1127-07M-08814Z
1127-07M-08814Z
1127-07M-08814Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Yellow M55155/204D04 AA59126/204D04

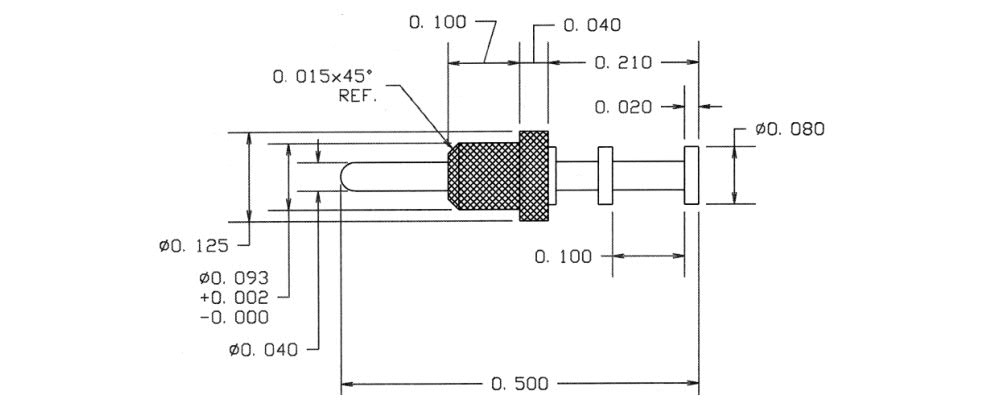

1133-03M-0517Z
1133-03M-0517Z
1133-03M-0517Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Violet M55155/047B03 AA59126/047B03

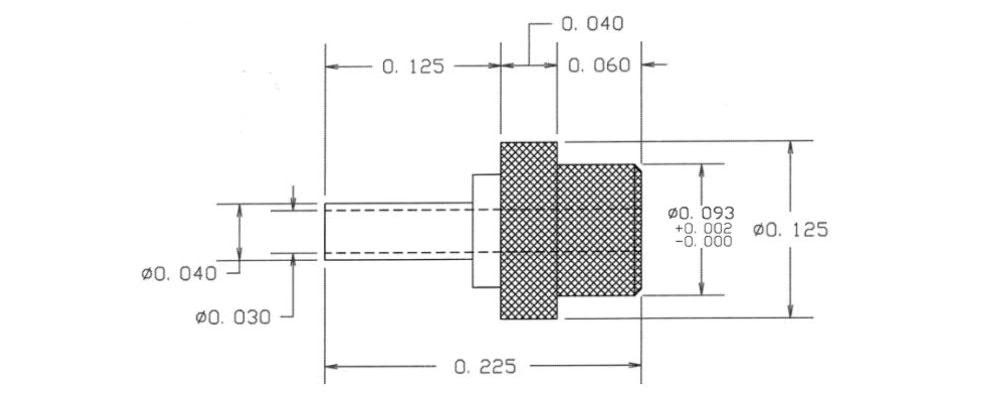

1114-04M-0510Z
1114-04M-0510Z
1114-04M-0510Z
0.225" - Press Fit 1/32 0.086 PTFE Black M55155/050B01 AA59126/050B01

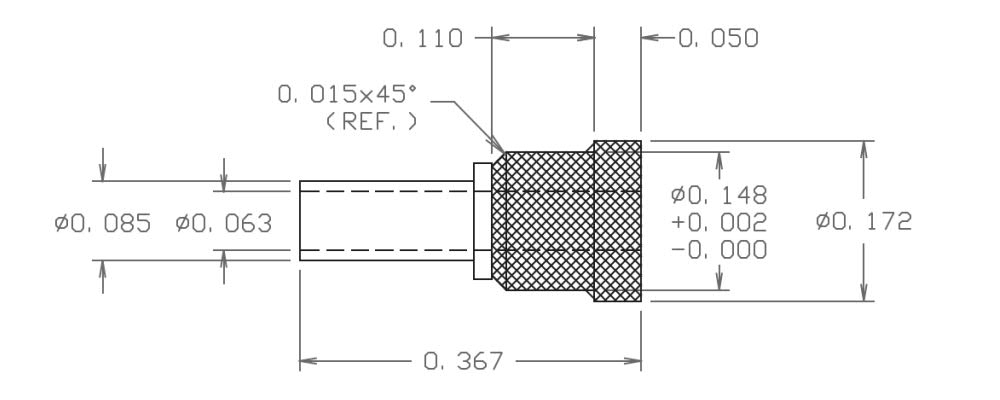

1114R-23M-0518Z
1114R-23M-0518Z
1114R-23M-0518Z
0.367" - Press Fit 1/16 0.136 PTFE Gray M55155/068B02 AA59126/068B02
1102-03M-09518
1102-03M-09518
1102-03M-09518
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/078I03 AA59126/078I03
1110-21M-0516
1110-21M-0516
1110-21M-0516
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036H02 AA59126/036H02
1125-43M-09518
1125-43M-09518
1125-43M-09518
0.750" - 4-40 Nut 1/8 0.120 PTFE Gray M55155/098I01 AA59126/098I01
1127-03M-0517
1127-03M-0517
1127-03M-0517
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/197H03 AA59126/197H03
1127-07M-08815
1127-07M-08815
1127-07M-08815
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205J04 AA59126/205J04
1133-03M-0518
1133-03M-0518
1133-03M-0518
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048H03 AA59126/048H03
1114-04M-0511
1114-04M-0511
1114-04M-0511
0.225" - Press Fit 1/32 0.086 PTFE Brown M55155/051H01 AA59126/051H01
1114R-23M-0519
1114R-23M-0519
1114R-23M-0519
0.367" - Press Fit 1/16 0.136 PTFE White M55155/069H02 AA59126/069H02
1102-03M-09518Z
1102-03M-09518Z
1102-03M-09518Z
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/078C03 AA59126/078C03
1110-21M-0516Z
1110-21M-0516Z
1110-21M-0516Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036B02 AA59126/036B02
1125-43M-09519
1125-43M-09519
1125-43M-09519
0.750" - 4-40 Nut 1/8 0.120 PTFE White M55155/099I01 AA59126/099I01
1127-03M-0517Z
1127-03M-0517Z
1127-03M-0517Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/197B03 AA59126/197B03

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
