Non-Insulated
PC Jacks

Filter

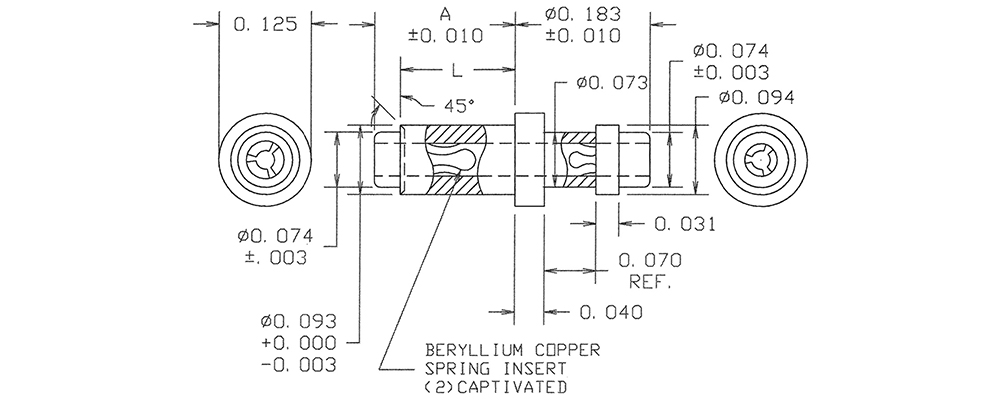

09-9022-3-04
09-9022-3-04
09-9022-3-04
0.025 0.308 " 0.343" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

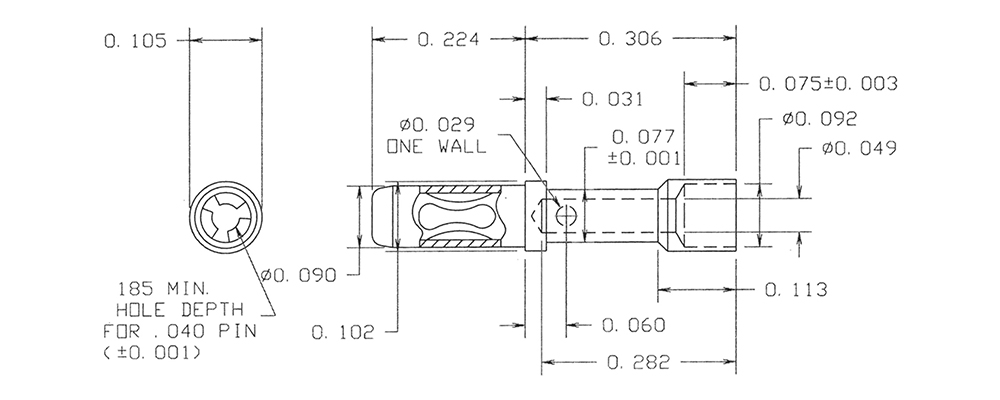

09-9056-1-03
09-9056-1-03
09-9056-1-03
0.040 0.185 " 0.530" - - - - - Brass Gold -

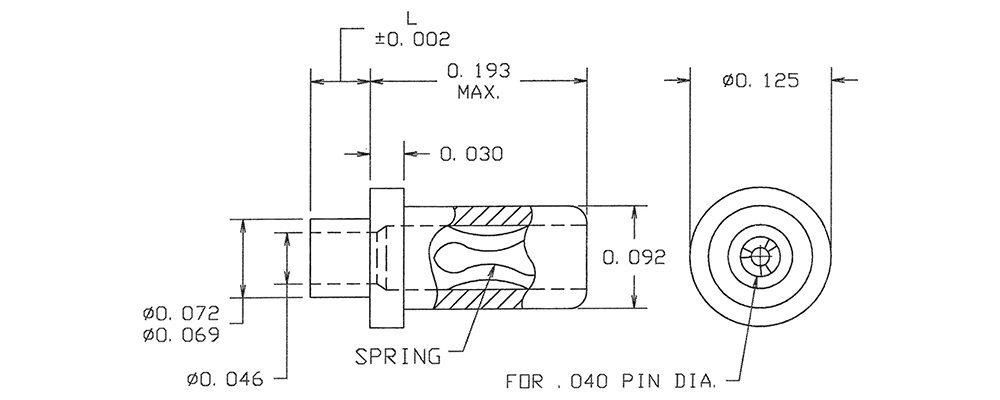

09-9230-4-06
09-9230-4-06
09-9230-4-06
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Electro-Tin Vertical

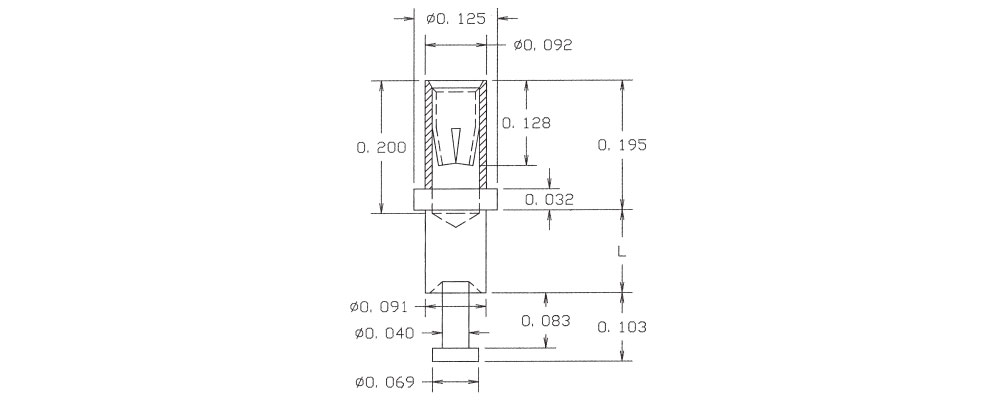

09-9604-6-063
09-9604-6-063
09-9604-6-063
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical

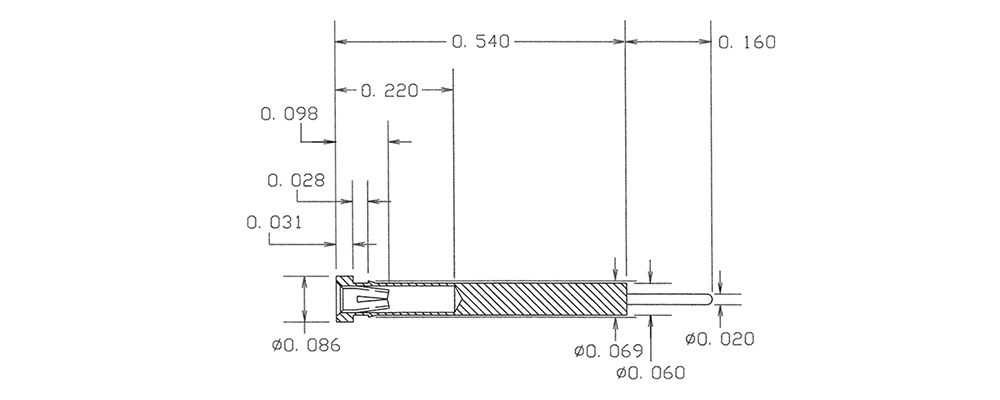

09-9641-1-04
09-9641-1-04
09-9641-1-04
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Electro-Tin Vertical

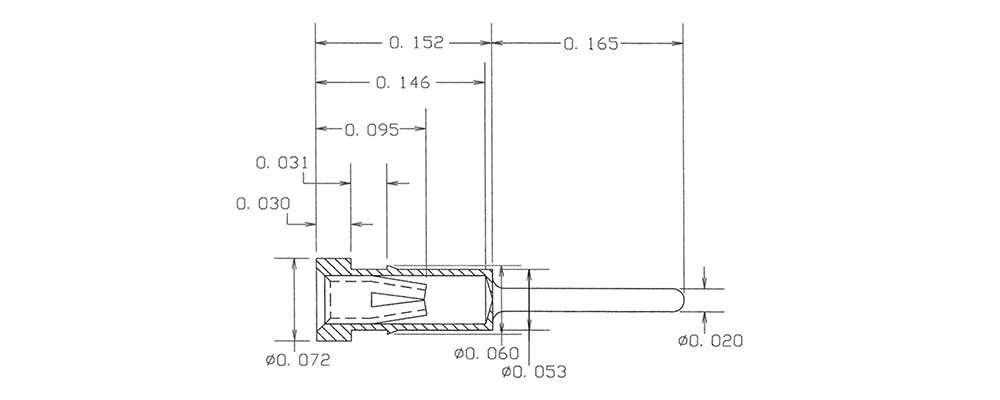

09-9679-1-03
09-9679-1-03
09-9679-1-03
0.015 - 0.025 0.146 " 0.317" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical

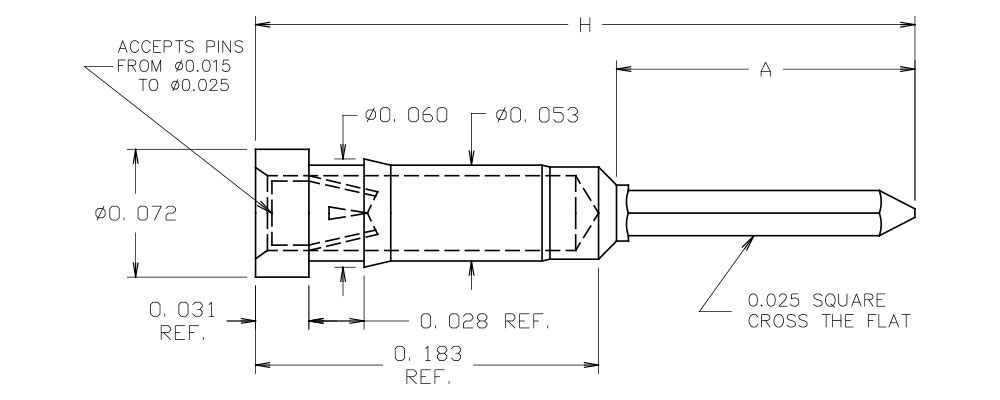

09-6010-1-063
09-6010-1-063
09-6010-1-063
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical

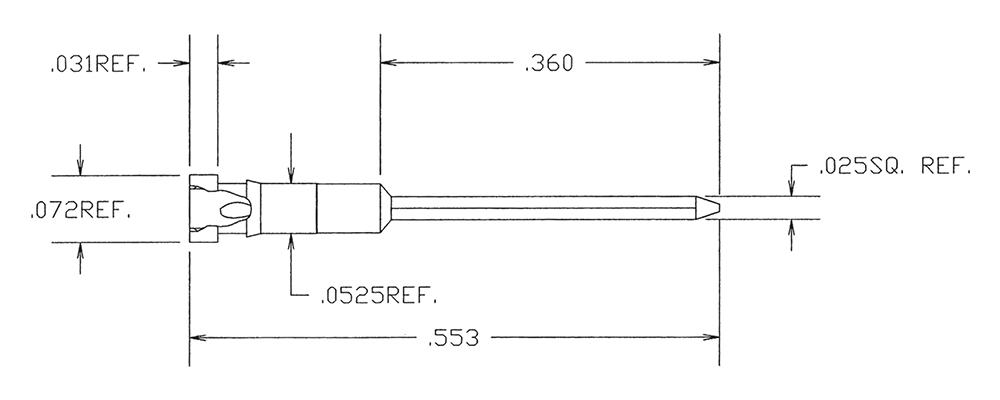

09-6019-1-03
09-6019-1-03
09-6019-1-03
0.015 - 0.025 0.140 " 0.553" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Gold Vertical
09-9022-3-06
09-9022-3-06
09-9022-3-06
0.025 0.308 " 0.343" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9056-1-035
09-9056-1-035
09-9056-1-035
0.040 0.185 " 0.530" - - - - - Brass Gold -
09-9230-4-063
09-9230-4-063
09-9230-4-063
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Bright Tin-Lead Vertical
09-9604-6-088
09-9604-6-088
09-9604-6-088
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical
09-9641-1-06
09-9641-1-06
09-9641-1-06
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Electro-Tin Vertical
09-9679-1-035
09-9679-1-035
09-9679-1-035
0.015 - 0.025 0.146 " 0.317" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-6010-1-088
09-6010-1-088
09-6010-1-088
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-6019-1-035
09-6019-1-035
09-6019-1-035
0.015 - 0.025 0.140 " 0.553" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Gold Vertical
09-9022-3-063
09-9022-3-063
09-9022-3-063
0.025 0.308 " 0.343" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9056-1-04
09-9056-1-04
09-9056-1-04
0.040 0.185 " 0.530" - - - - - Brass Electro-Tin -
09-9230-4-088
09-9230-4-088
09-9230-4-088
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Bright Tin-Lead Vertical

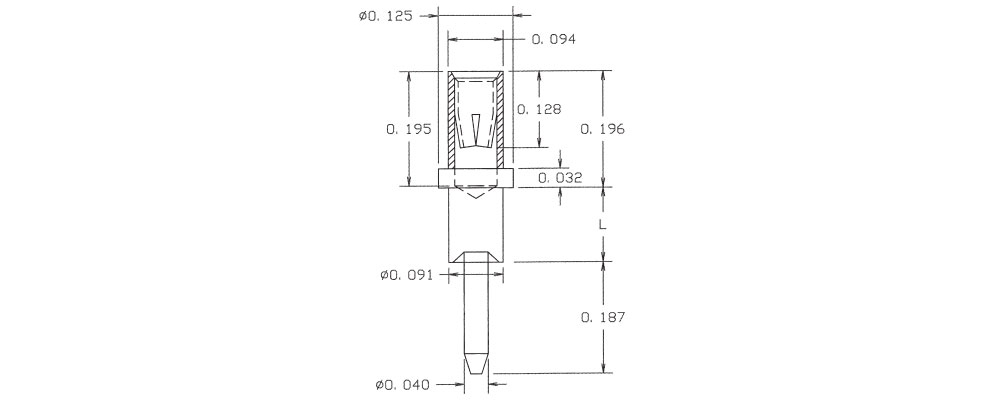

09-9605-1-03
09-9605-1-03
09-9605-1-03
0.032 - 0.046 0.195 " 0.445" Jack/Pin Swage Mount 0.062" 1/32 0.094 Brass Gold Vertical
