Insulated
PC Jacks

Filter

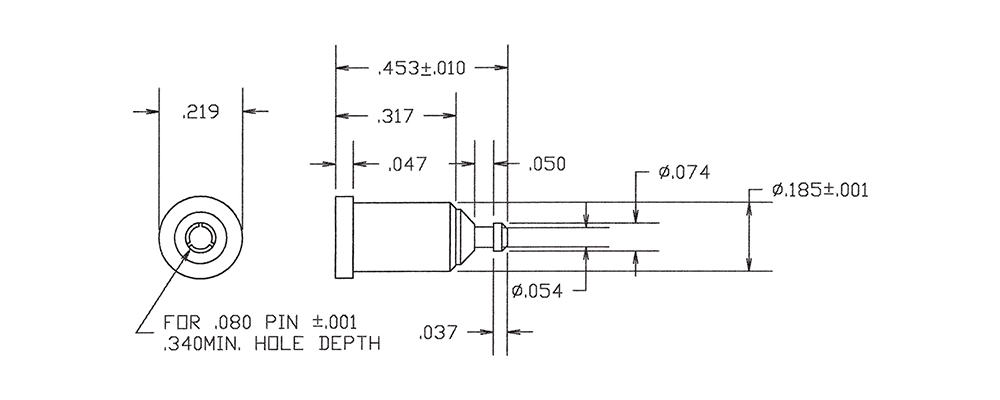

09-9084-1-06315
09-9084-1-06315
09-9084-1-06315
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Green -

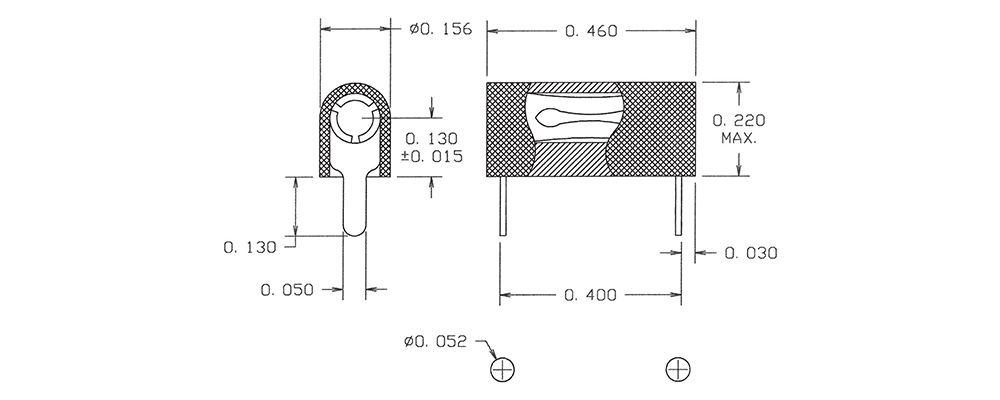

09-9201-1-0311
09-9201-1-0311
09-9201-1-0311
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown -

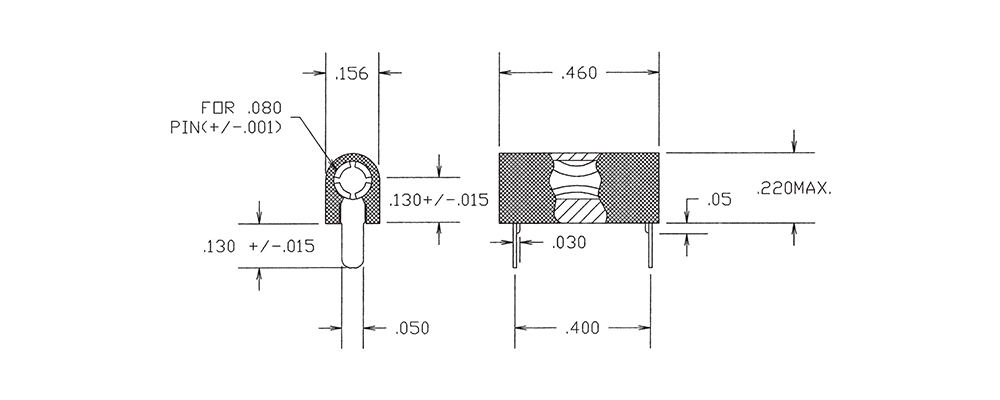

09-9252-1-04417
09-9252-1-04417
09-9252-1-04417
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Violet -

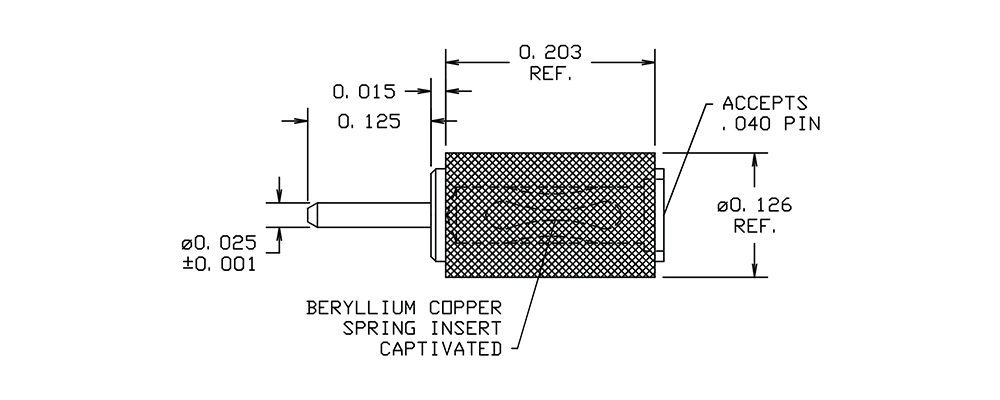

09-9010-1-0615
09-9010-1-0615
09-9010-1-0615
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Electro-Tin Polyolefin Green -

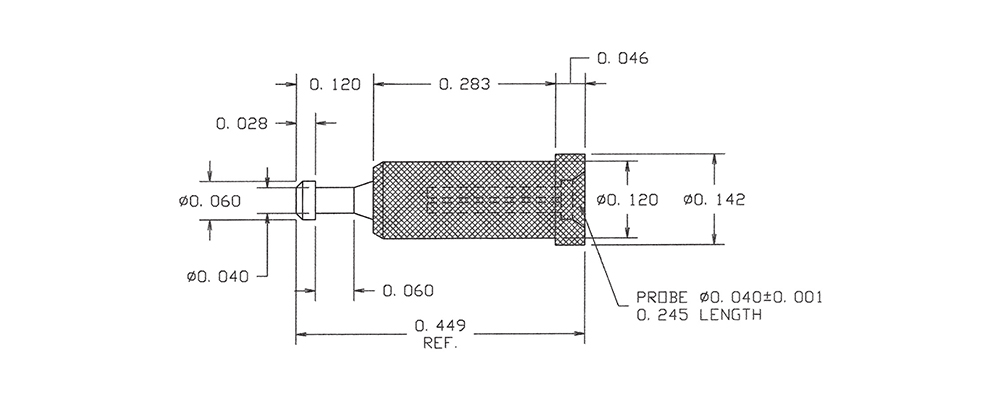

1128-03-03513
1128-03-03513
1128-03-03513
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Orange -

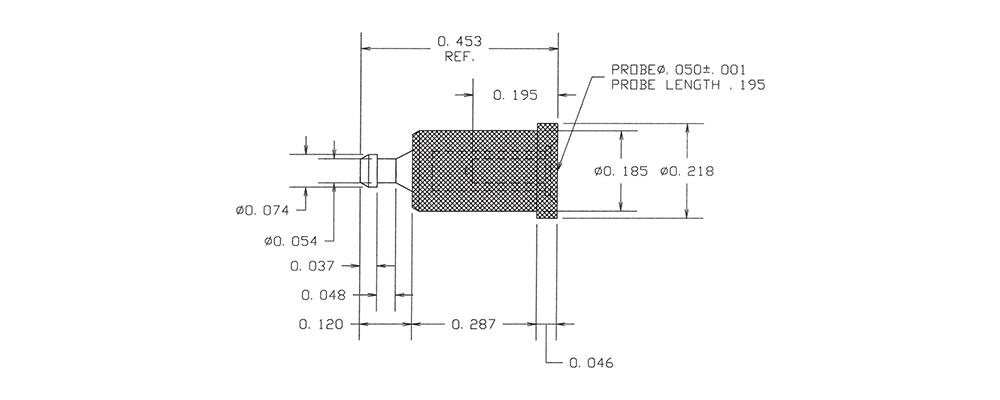

1128-17-0319
1128-17-0319
1128-17-0319
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE White -

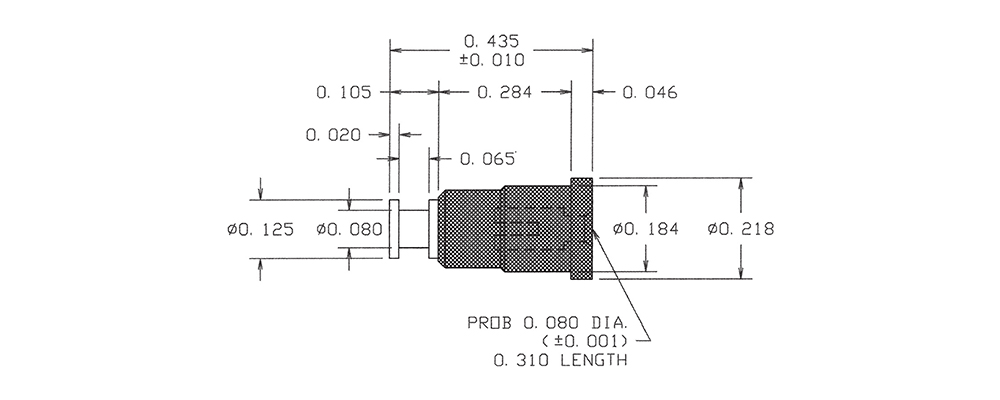

1128-35-03515
1128-35-03515
1128-35-03515
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Green -

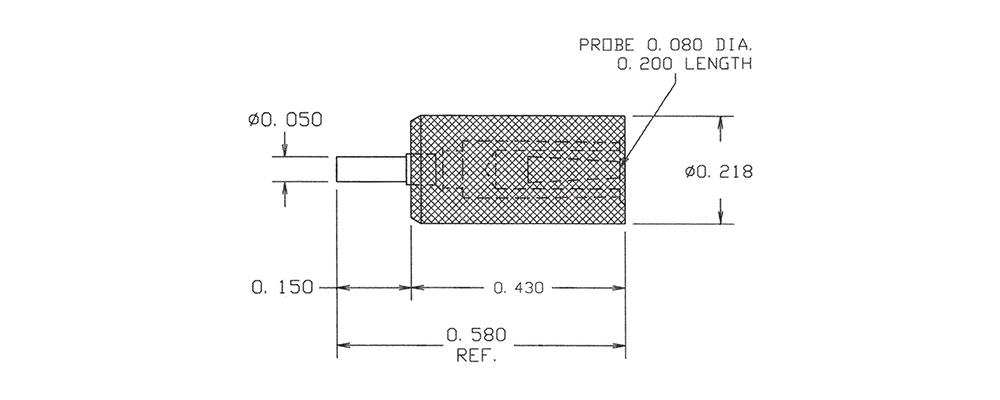

1128-58-03511
1128-58-03511
1128-58-03511
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Brown -

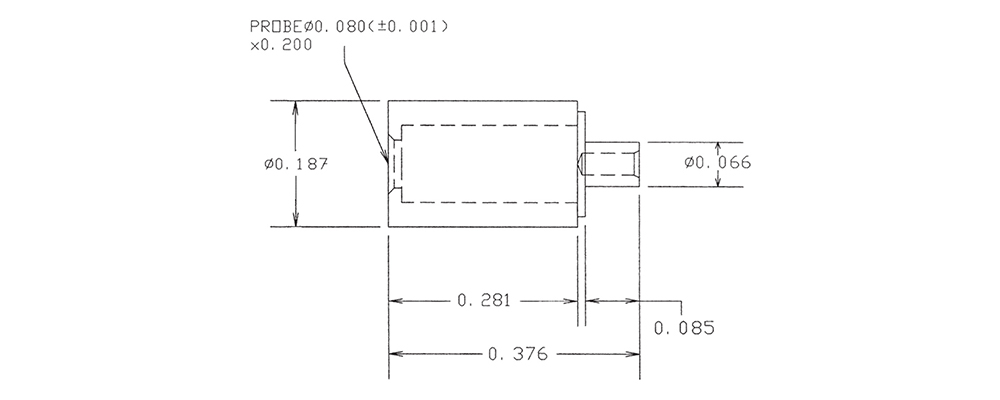

1138-06-0317
1138-06-0317
1138-06-0317
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Violet -
09-9294-1-08813
09-9294-1-08813
09-9294-1-08813
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange -
09-9011-1-03510
09-9011-1-03510
09-9011-1-03510
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Black M39024/12-14
09-9084-1-06316
09-9084-1-06316
09-9084-1-06316
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Blue -
09-9201-1-0312
09-9201-1-0312
09-9201-1-0312
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red -
09-9252-1-04418
09-9252-1-04418
09-9252-1-04418
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Gray -
09-9010-1-0616
09-9010-1-0616
09-9010-1-0616
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Electro-Tin Polyolefin Blue -
1128-03-03514
1128-03-03514
1128-03-03514
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Yellow -
1128-17-03510
1128-17-03510
1128-17-03510
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Black -
1128-35-03516
1128-35-03516
1128-35-03516
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Blue -
1128-58-03512
1128-58-03512
1128-58-03512
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Red -
1138-06-0318
1138-06-0318
1138-06-0318
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Gray -
