Commercial
Non-Insulated
Wire-Applied
Terminals

Filter

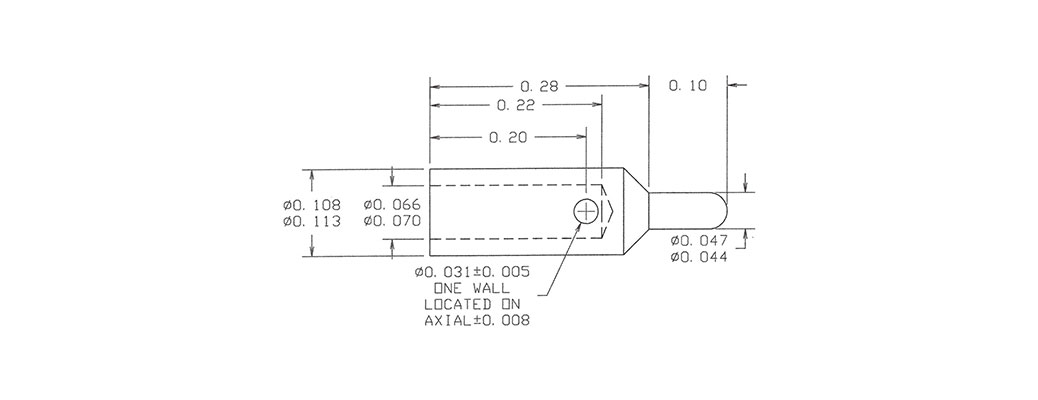

09-0211-4-03
09-0211-4-03
09-0211-4-03
Brass Gold 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG YES
09-0211-4-035
09-0211-4-035
09-0211-4-035
Brass Gold 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG YES
09-0211-4-04
09-0211-4-04
09-0211-4-04
Brass Electro-Tin 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG YES
09-0211-4-044
09-0211-4-044
09-0211-4-044
Brass Bright Tin 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG YES
09-0211-4-05
09-0211-4-05
09-0211-4-05
Brass Electro Solder 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG NO
09-0211-4-088
09-0211-4-088
09-0211-4-088
Brass Bright Tin-Lead 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG NO

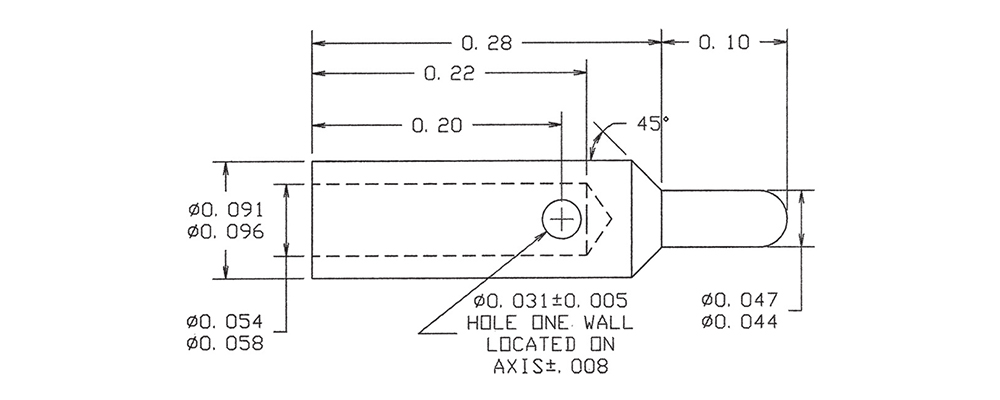

09-0220-4-03
09-0220-4-03
09-0220-4-03
Brass Gold 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG YES
09-0220-4-035
09-0220-4-035
09-0220-4-035
Brass Gold 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG YES
09-0220-4-04
09-0220-4-04
09-0220-4-04
Brass Electro-Tin 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG YES
09-0220-4-044
09-0220-4-044
09-0220-4-044
Brass Bright Tin 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG YES
09-0220-4-05
09-0220-4-05
09-0220-4-05
Brass Electro Solder 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG NO
09-0220-4-088
09-0220-4-088
09-0220-4-088
Brass Bright Tin-Lead 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG NO

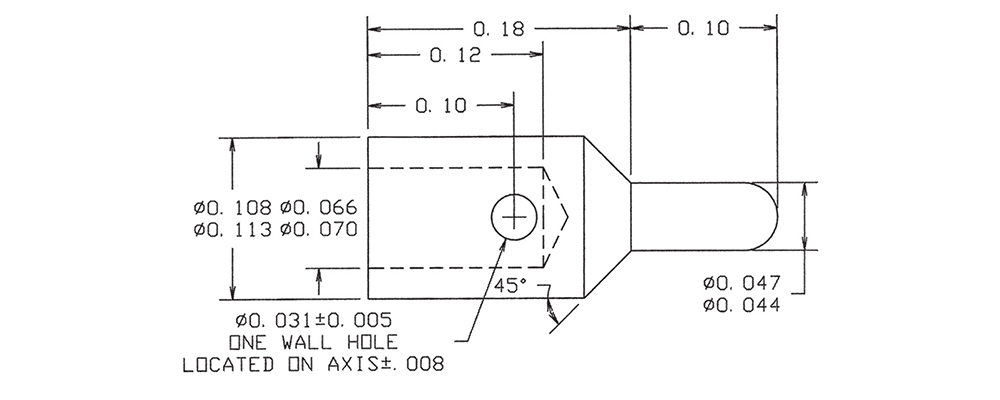

09-0225-4-03
09-0225-4-03
09-0225-4-03
Brass Gold 0.280" 0.045 (+0.002/-0.001) 0.120 " 20 AWG YES
09-0225-4-035
09-0225-4-035
09-0225-4-035
Brass Gold 0.280" 0.045 (+0.002/-0.001) 0.120 " 20 AWG YES
09-0225-4-04
09-0225-4-04
09-0225-4-04
Brass Electro-Tin 0.280" 0.045 (+0.002/-0.001) 0.120 " 20 AWG YES
09-0225-4-044
09-0225-4-044
09-0225-4-044
Brass Bright Tin 0.280" 0.045 (+0.002/-0.001) 0.120 " 20 AWG YES
09-0225-4-05
09-0225-4-05
09-0225-4-05
Brass Electro Solder 0.280" 0.045 (+0.002/-0.001) 0.120 " 20 AWG NO
09-0225-4-088
09-0225-4-088
09-0225-4-088
Brass Bright Tin-Lead 0.280" 0.045 (+0.002/-0.001) 0.120 " 20 AWG NO

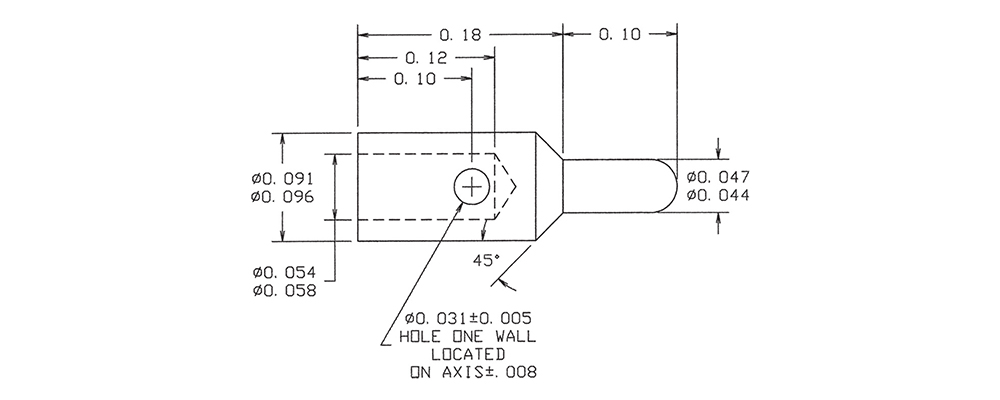

09-0229-4-03
09-0229-4-03
09-0229-4-03
Brass Gold 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG YES
09-0229-4-035
09-0229-4-035
09-0229-4-035
Brass Gold 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG YES
