Military
Insulated
Terminals

Filter
1125-45M-08816
1125-45M-08816
1125-45M-08816
0.890" - 6-32 Nut 1/8 0.144 PTFE Blue M55155/096J02 AA59126/096J02
1169-38M-0515
1169-38M-0515
1169-38M-0515
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Green M55155/095H05 AA59126/095H05
1169-37M-09512
1169-37M-09512
1169-37M-09512
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Red M55155/092I04 AA59126/092I04

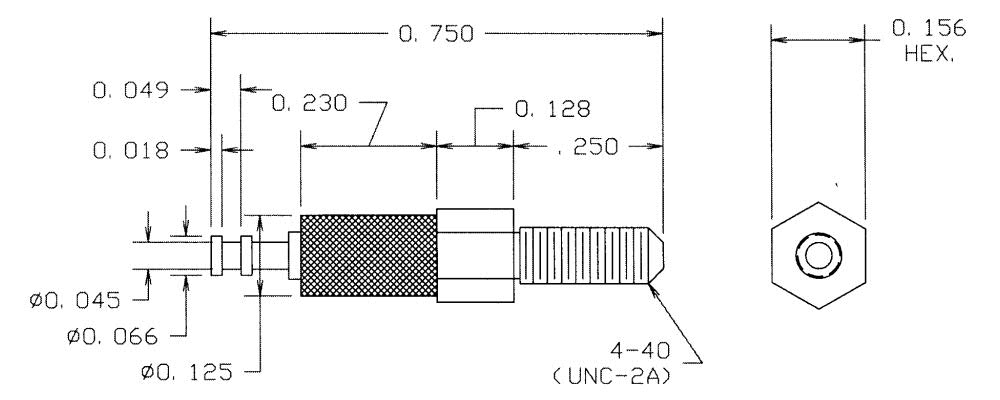

1125-43M-0515
1125-43M-0515
1125-43M-0515
0.750" - 4-40 Nut 1/8 0.120 PTFE Green M55155/095H01 AA59126/095H01
1169-36M-0517
1169-36M-0517
1169-36M-0517
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Violet M55155/097H03 AA59126/097H03
1169-38M-08812Z
1169-38M-08812Z
1169-38M-08812Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Red M55155/092D05 AA59126/092D05
1125-42M-08819
1125-42M-08819
1125-42M-08819
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE White M55155/109J01 AA59126/109J01
1125-46M-0513
1125-46M-0513
1125-46M-0513
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Orange M55155/103H02 AA59126/103H02
1125-42M-09512
1125-42M-09512
1125-42M-09512
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Red M55155/102I01 AA59126/102I01
1125-42M-08811
1125-42M-08811
1125-42M-08811
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Brown M55155/101J01 AA59126/101J01
1125-46M-08810
1125-46M-08810
1125-46M-08810
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Black M55155/100J02 AA59126/100J02
1125-46M-0518
1125-46M-0518
1125-46M-0518
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Gray M55155/108H02 AA59126/108H02
1125-46M-08817
1125-46M-08817
1125-46M-08817
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107J02 AA59126/107J02
1125-46M-08818
1125-46M-08818
1125-46M-08818
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Gray M55155/108J02 AA59126/108J02
1125-46M-09515
1125-46M-09515
1125-46M-09515
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Green M55155/105I02 AA59126/105I02
1125-46M-0511
1125-46M-0511
1125-46M-0511
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Brown M55155/101H02 AA59126/101H02
1125-42M-08812
1125-42M-08812
1125-42M-08812
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Red M55155/102J01 AA59126/102J01
1125-42M-08813
1125-42M-08813
1125-42M-08813
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Orange M55155/103J01 AA59126/103J01
1125-46M-08819
1125-46M-08819
1125-46M-08819
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109J02 AA59126/109J02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
