Military
Insulated
Terminals

Filter
1127-02M-08813Z
1127-02M-08813Z
1127-02M-08813Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/193D02 AA59126/193D02
1110-75M-08814Z
1110-75M-08814Z
1110-75M-08814Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034D05 AA59126/034D05
1133-02M-08818Z
1133-02M-08818Z
1133-02M-08818Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Gray M55155/048D02 AA59126/048D02
1125-46M-09519Z
1125-46M-09519Z
1125-46M-09519Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109C02 AA59126/109C02
1133-02M-09516Z
1133-02M-09516Z
1133-02M-09516Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Blue M55155/046C02 AA59126/046C02
1125-42M-09515Z
1125-42M-09515Z
1125-42M-09515Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Green M55155/105C01 AA59126/105C01
1110-16M-09515Z
1110-16M-09515Z
1110-16M-09515Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035C01 AA59126/035C01

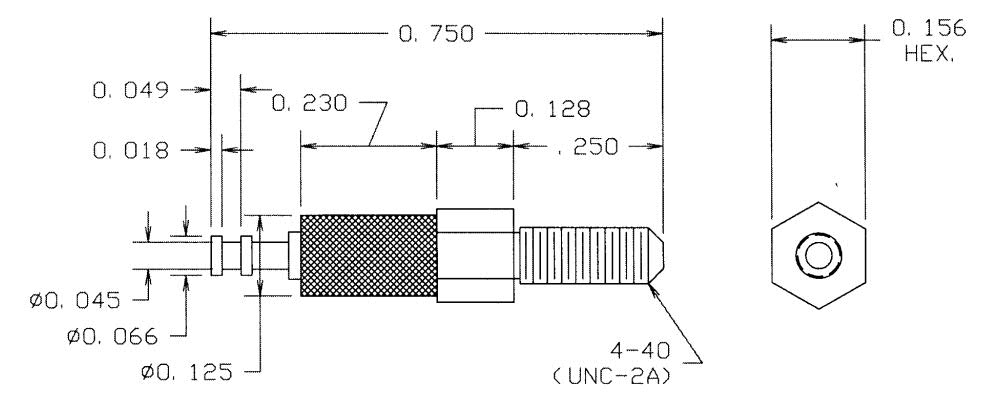

1125-43M-08810Z
1125-43M-08810Z
1125-43M-08810Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Black M55155/090D01 AA59126/090D01
1133-01M-0513
1133-01M-0513
1133-01M-0513
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Orange M55155/043H01 AA59126/043H01
1133-02M-09512
1133-02M-09512
1133-02M-09512
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042I02 AA59126/042I02
1133-01M-08811
1133-01M-08811
1133-01M-08811
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Brown M55155/041J01 AA59126/041J01
1133-02M-08813
1133-02M-08813
1133-02M-08813
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Orange M55155/043J02 AA59126/043J02
1133-01M-08819
1133-01M-08819
1133-01M-08819
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE White M55155/049J01 AA59126/049J01
1133-02M-09513
1133-02M-09513
1133-02M-09513
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Orange M55155/043I02 AA59126/043I02
1133-02M-09514
1133-02M-09514
1133-02M-09514
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044I02 AA59126/044I02

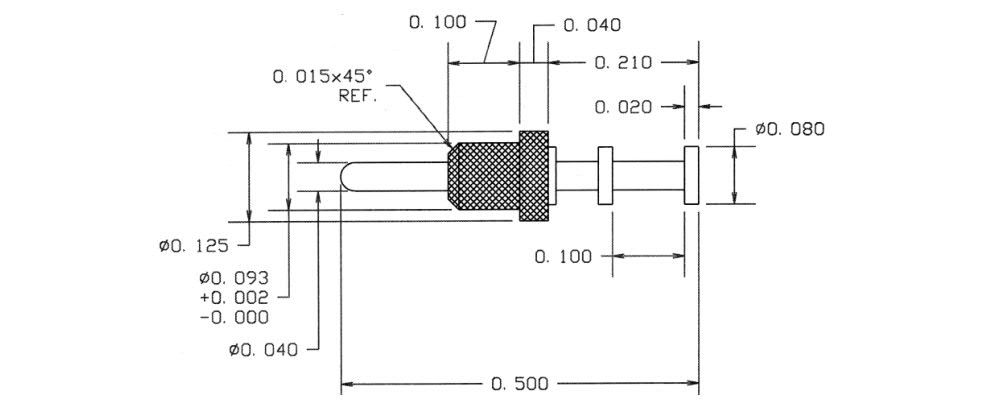

1133-03M-08810
1133-03M-08810
1133-03M-08810
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Black M55155/040J03 AA59126/040J03
1133-03M-08813
1133-03M-08813
1133-03M-08813
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Orange M55155/043J03 AA59126/043J03
1133-01M-08817
1133-01M-08817
1133-01M-08817
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Violet M55155/047J01 AA59126/047J01
1133-02M-0514
1133-02M-0514
1133-02M-0514
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044H02 AA59126/044H02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
