Military
Insulated
Terminals

Filter
1127-07M-08815Z
1127-07M-08815Z
1127-07M-08815Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205D04 AA59126/205D04

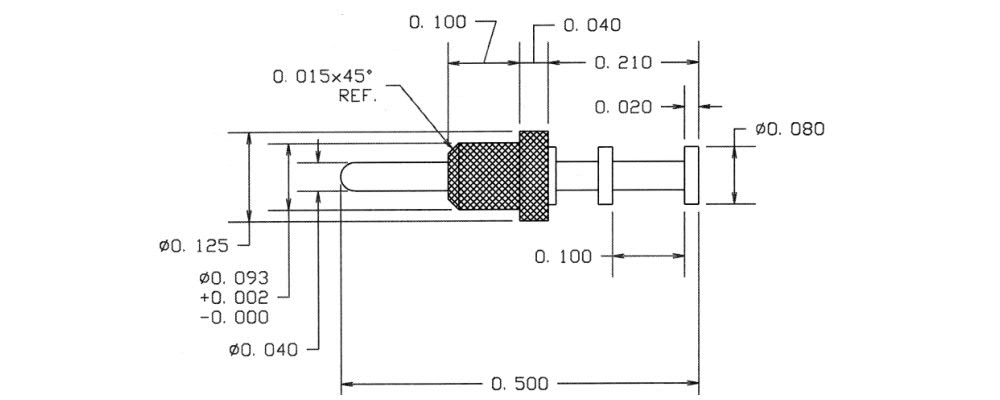

1133-03M-0518Z
1133-03M-0518Z
1133-03M-0518Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048B03 AA59126/048B03
1114-04M-0511Z
1114-04M-0511Z
1114-04M-0511Z
0.225" - Press Fit 1/32 0.086 PTFE Brown M55155/051B01 AA59126/051B01
1114R-23M-0519Z
1114R-23M-0519Z
1114R-23M-0519Z
0.367" - Press Fit 1/16 0.136 PTFE White M55155/069B02 AA59126/069B02

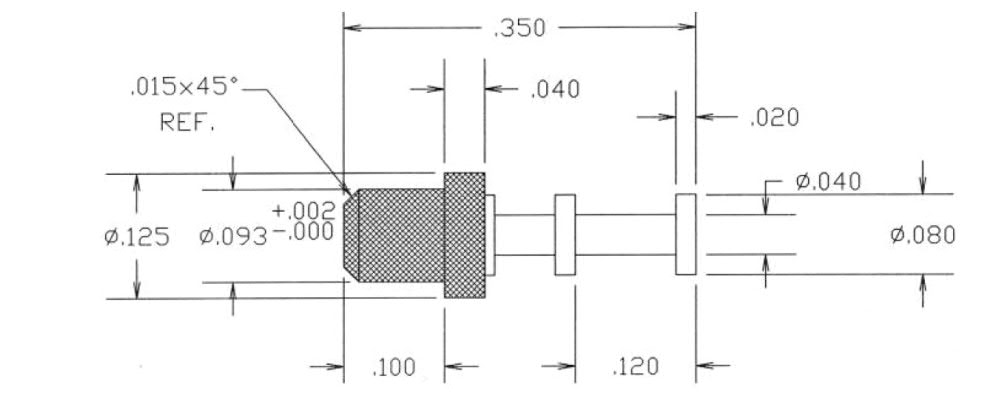

1102-03M-09519
1102-03M-09519
1102-03M-09519
0.350" - Press Fit 1/16 0.086 PTFE White M55155/079I03 AA59126/079I03
1110-21M-0517
1110-21M-0517
1110-21M-0517
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037H02 AA59126/037H02
1125-45M-0510
1125-45M-0510
1125-45M-0510
0.890" - 6-32 Nut 1/8 0.144 PTFE Black M55155/090H02 AA59126/090H02
1127-03M-0518
1127-03M-0518
1127-03M-0518
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/198H03 AA59126/198H03
1127-07M-08816
1127-07M-08816
1127-07M-08816
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/206J04 AA59126/206J04
1133-03M-0519
1133-03M-0519
1133-03M-0519
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE White M55155/049H03 AA59126/049H03
1114-04M-0512
1114-04M-0512
1114-04M-0512
0.225" - Press Fit 1/32 0.086 PTFE Red M55155/052H01 AA59126/052H01
1114R-23M-08810
1114R-23M-08810
1114R-23M-08810
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/060J02 AA59126/060J02
1102-03M-09519Z
1102-03M-09519Z
1102-03M-09519Z
0.350" - Press Fit 1/16 0.086 PTFE White M55155/079C03 AA59126/079C03
1110-21M-0517Z
1110-21M-0517Z
1110-21M-0517Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037B02 AA59126/037B02
1125-45M-0510Z
1125-45M-0510Z
1125-45M-0510Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Black M55155/090B02 AA59126/090B02
1127-03M-0518Z
1127-03M-0518Z
1127-03M-0518Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/198B03 AA59126/198B03
1127-07M-08816Z
1127-07M-08816Z
1127-07M-08816Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/206D04 AA59126/206D04
1133-03M-0519Z
1133-03M-0519Z
1133-03M-0519Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE White M55155/049B03 AA59126/049B03
1114-04M-0512Z
1114-04M-0512Z
1114-04M-0512Z
0.225" - Press Fit 1/32 0.086 PTFE Red M55155/052B01 AA59126/052B01
1114R-23M-08810Z
1114R-23M-08810Z
1114R-23M-08810Z
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/060D02 AA59126/060D02
