Military
Insulated
Terminals

Filter
1110-05M-0517Z
1110-05M-0517Z
1110-05M-0517Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037B04 AA59126/037B04
1110-75M-08815Z
1110-75M-08815Z
1110-75M-08815Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035D05 AA59126/035D05
1127-01M-0518Z
1127-01M-0518Z
1127-01M-0518Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/198B01 AA59126/198B01
1127-05M-08816Z
1127-05M-08816Z
1127-05M-08816Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206D02 AA59126/206D02
1133-01M-0519Z
1133-01M-0519Z
1133-01M-0519Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE White M55155/049B01 AA59126/049B01
1169-37M-08817Z
1169-37M-08817Z
1169-37M-08817Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Violet M55155/097D04 AA59126/097D04
1114-23M-08810Z
1114-23M-08810Z
1114-23M-08810Z
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/050D03 AA59126/050D03
1127-69M-0517Z
1127-69M-0517Z
1127-69M-0517Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187B02 AA59126/187B02

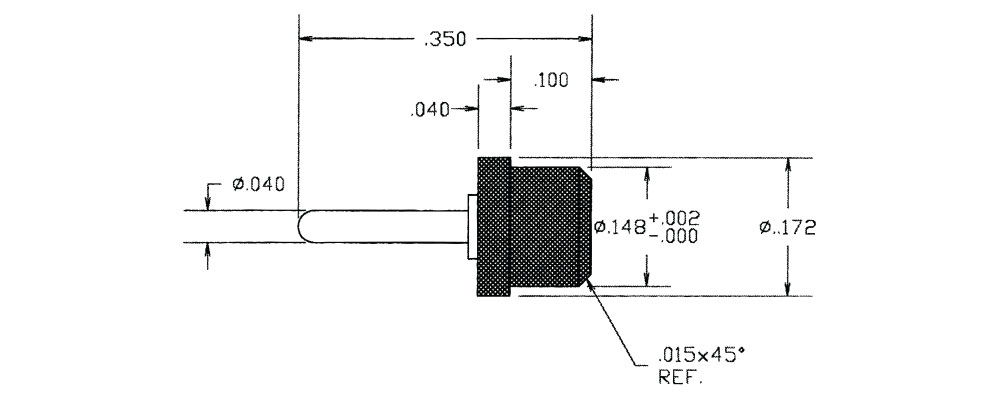

1100-28M-0510
1100-28M-0510
1100-28M-0510
0.350" - Press Fit 1/16 0.136 PTFE Black M55155/080H01 AA59126/080H01
1110-05M-0518
1110-05M-0518
1110-05M-0518
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Gray M55155/038H04 AA59126/038H04
1110-75M-08816
1110-75M-08816
1110-75M-08816
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036J05 AA59126/036J05
1127-01M-0519
1127-01M-0519
1127-01M-0519
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE White M55155/199H01 AA59126/199H01
1127-05M-08817
1127-05M-08817
1127-05M-08817
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207J02 AA59126/207J02
1133-01M-08810
1133-01M-08810
1133-01M-08810
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Black M55155/040J01 AA59126/040J01
1169-37M-08818
1169-37M-08818
1169-37M-08818
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Gray M55155/098J04 AA59126/098J04
1114-23M-08811
1114-23M-08811
1114-23M-08811
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/051J03 AA59126/051J03
1127-69M-0518Z
1127-69M-0518Z
1127-69M-0518Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188B02 AA59126/188B02
1100-28M-0510Z
1100-28M-0510Z
1100-28M-0510Z
0.350" - Press Fit 1/16 0.136 PTFE Black M55155/080B01 AA59126/080B01
1110-05M-0518Z
1110-05M-0518Z
1110-05M-0518Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Gray M55155/038B04 AA59126/038B04
1110-75M-08816Z
1110-75M-08816Z
1110-75M-08816Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036D05 AA59126/036D05
