Military
Insulated
Terminals

Filter

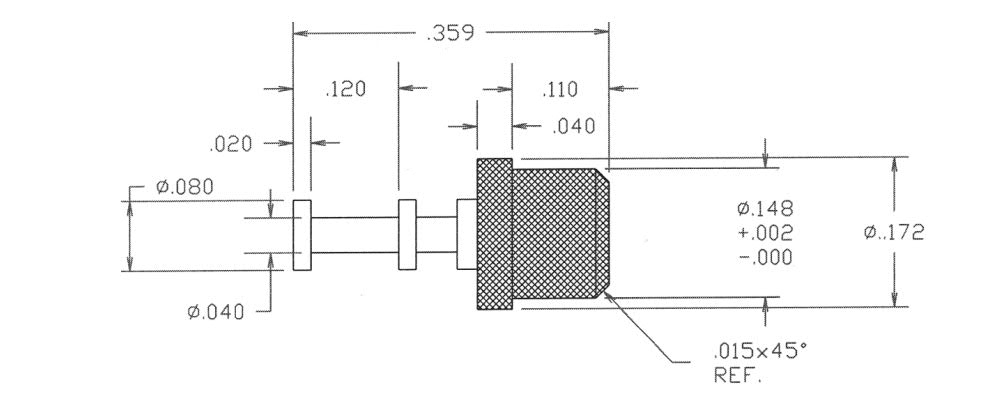

1102-14M-0510
1102-14M-0510
1102-14M-0510
0.359" - Press Fit 1/16 0.136 PTFE Black M55155/070H01 AA59126/070H01

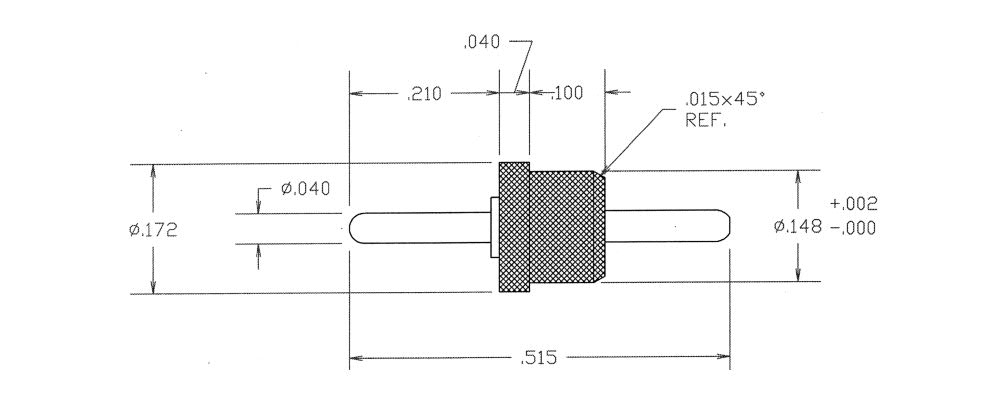

1110-21M-0518
1110-21M-0518
1110-21M-0518
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038H02 AA59126/038H02

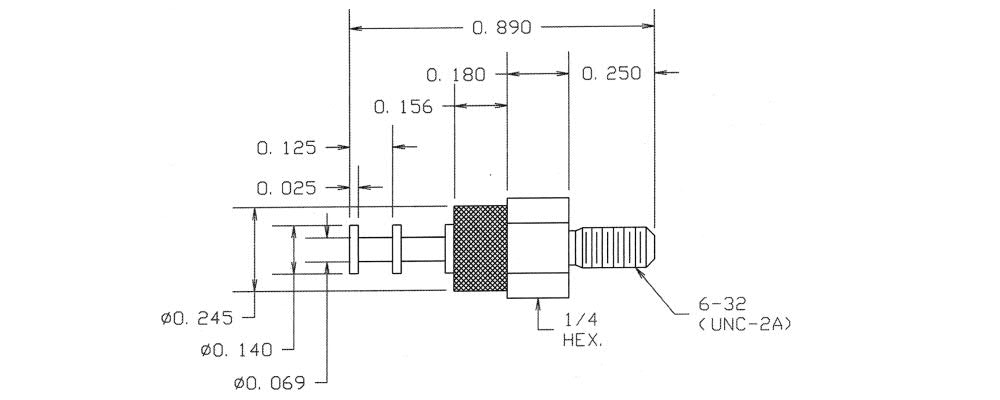

1125-45M-0511
1125-45M-0511
1125-45M-0511
0.890" - 6-32 Nut 1/8 0.144 PTFE Brown M55155/091H02 AA59126/091H02

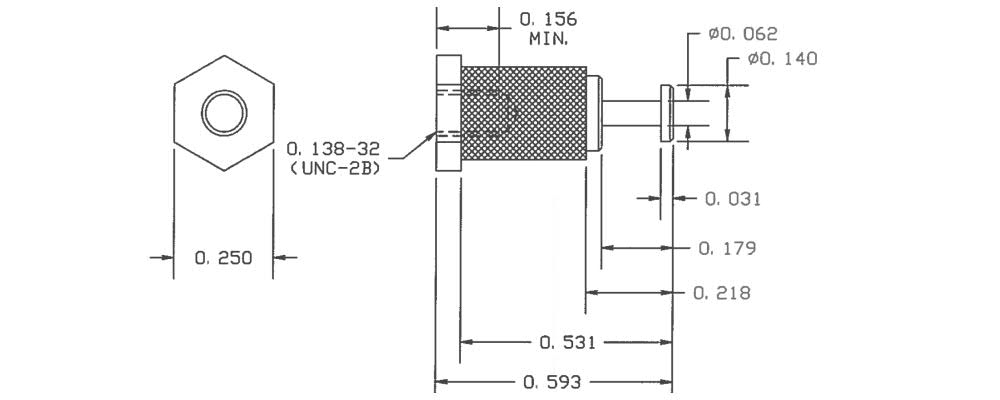

1127-03M-0519
1127-03M-0519
1127-03M-0519
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE White M55155/199H03 AA59126/199H03

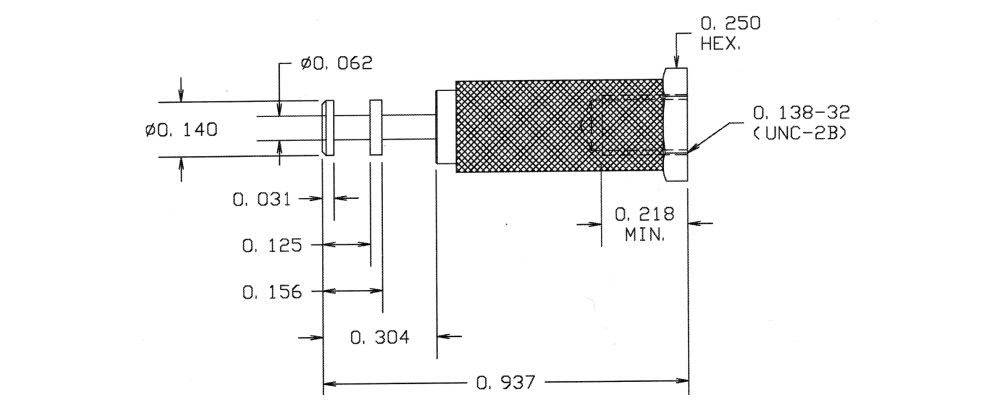

1127-07M-08817
1127-07M-08817
1127-07M-08817
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/207J04 AA59126/207J04

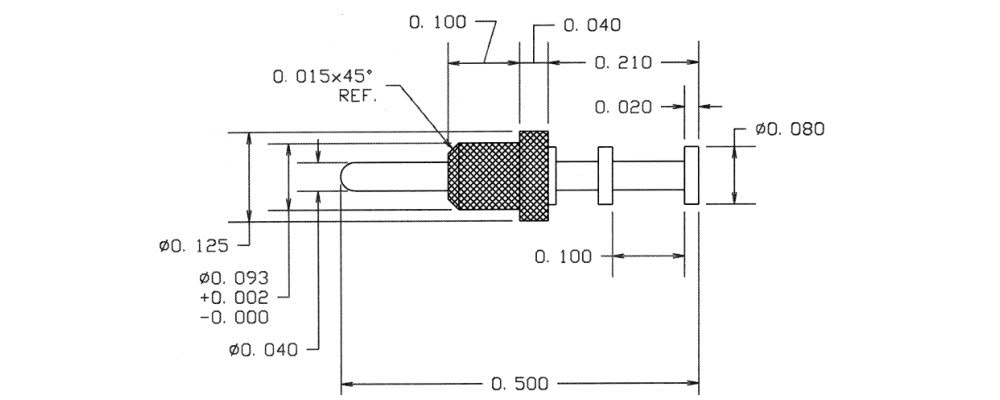

1133-03M-08810
1133-03M-08810
1133-03M-08810
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Black M55155/040J03 AA59126/040J03

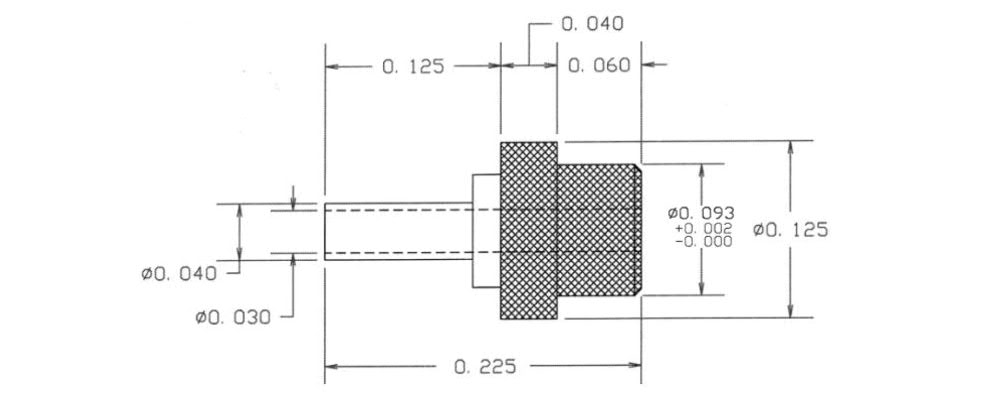

1114-04M-0513
1114-04M-0513
1114-04M-0513
0.225" - Press Fit 1/32 0.086 PTFE Orange M55155/053H01 AA59126/053H01

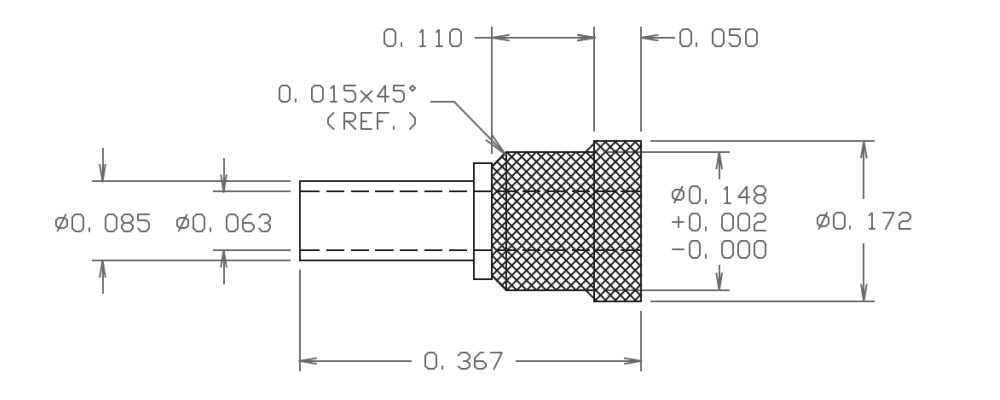

1114R-23M-08811
1114R-23M-08811
1114R-23M-08811
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/061J02 AA59126/061J02
1102-14M-0510Z
1102-14M-0510Z
1102-14M-0510Z
0.359" - Press Fit 1/16 0.136 PTFE Black M55155/070B01 AA59126/070B01
1110-21M-0518Z
1110-21M-0518Z
1110-21M-0518Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038B02 AA59126/038B02
1125-45M-0511Z
1125-45M-0511Z
1125-45M-0511Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Brown M55155/091B02 AA59126/091B02
1127-03M-0519Z
1127-03M-0519Z
1127-03M-0519Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE White M55155/199B03 AA59126/199B03
1127-07M-08817Z
1127-07M-08817Z
1127-07M-08817Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/207D04 AA59126/207D04
1133-03M-08810Z
1133-03M-08810Z
1133-03M-08810Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Black M55155/040D03 AA59126/040D03
1114-04M-0513Z
1114-04M-0513Z
1114-04M-0513Z
0.225" - Press Fit 1/32 0.086 PTFE Orange M55155/053B01 AA59126/053B01
1114R-23M-08811Z
1114R-23M-08811Z
1114R-23M-08811Z
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/061D02 AA59126/061D02
1102-14M-0511
1102-14M-0511
1102-14M-0511
0.359" - Press Fit 1/16 0.136 PTFE Brown M55155/071H01 AA59126/071H01
1110-21M-0519
1110-21M-0519
1110-21M-0519
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039H02 AA59126/039H02
1125-45M-0512
1125-45M-0512
1125-45M-0512
0.890" - 6-32 Nut 1/8 0.144 PTFE Red M55155/092H02 AA59126/092H02
1127-03M-08810
1127-03M-08810
1127-03M-08810
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Black M55155/190J03 AA59126/190J03

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
