Non-Insulated
Banana Jacks

Filter

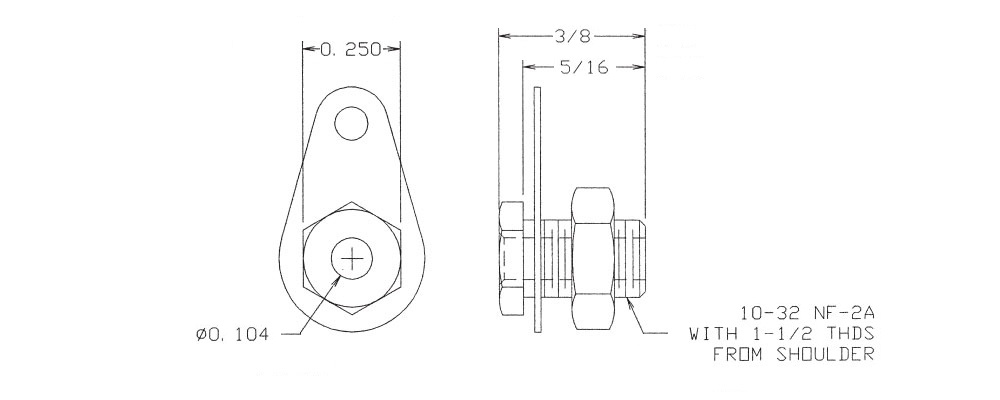

01-2405-1-02
01-2405-1-02
01-2405-1-02
0.375" 0.375 " Miniature 10-32 Nut 0.196" UP TO 3/16' Brass Nickel -

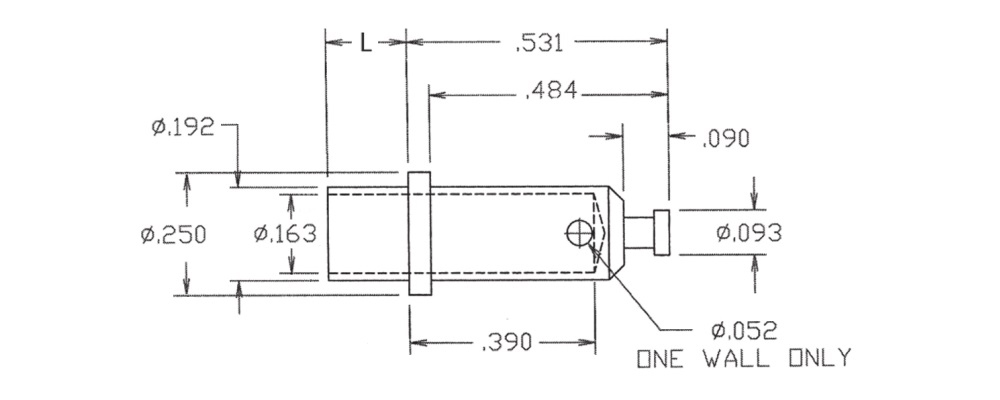

01-2520-2-02
01-2520-2-02
01-2520-2-02
0.636" 0.452 " Standard Swage Mount 0.196 1/16 Brass Nickel 0.105"

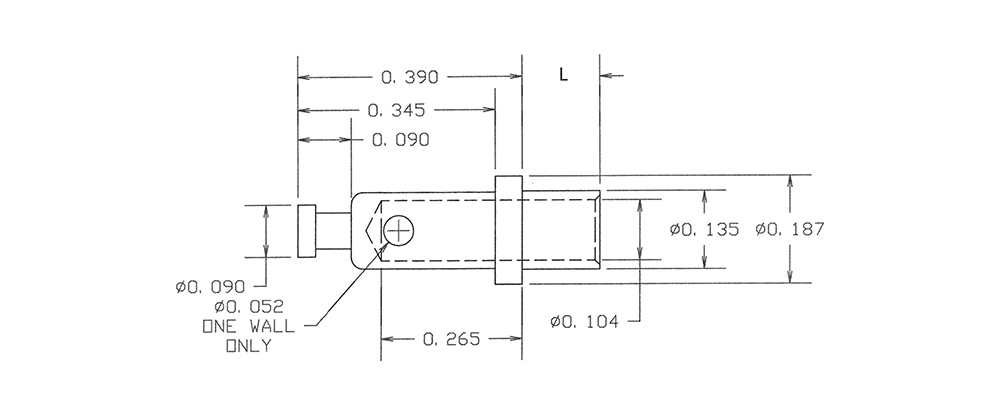

01-2515-4-03
01-2515-4-03
01-2515-4-03
0.555" 0.390 " Miniature Swage Mount 0.1405 1/8 Brass Gold 0.165"
01-2520-4-02
01-2520-4-02
01-2520-4-02
0.696" 0.515 " Standard Swage Mount 0.196 1/8 Brass Nickel 0.165"
01-2520-3-02
01-2520-3-02
01-2520-3-02
0.666" 0.484 " Standard Swage Mount 0.196 3/32 Brass Nickel 0.135"
01-2520-4-03
01-2520-4-03
01-2520-4-03
0.696" 0.515 " Standard Swage Mount 0.196 1/8 Brass Gold 0.165"
01-2515-4-02
01-2515-4-02
01-2515-4-02
0.555" 0.390 " Miniature Swage Mount 0.1405 1/8 Brass Nickel 0.165"

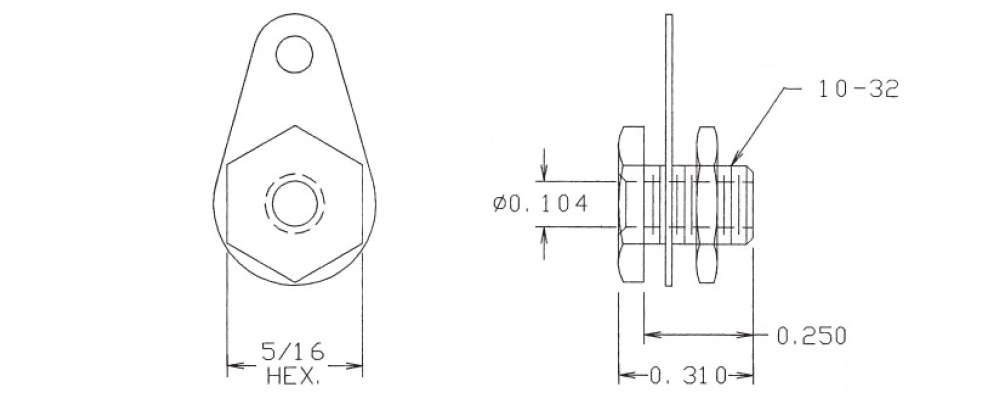

01-2406-1-044
01-2406-1-044
01-2406-1-044
0.310" 0.310 " Miniature 10-32 Nut 0.196 1/8 Brass Bright Tin 0.312"
01-2406-1-02
01-2406-1-02
01-2406-1-02
0.310" 0.310 " Miniature 10-32 Nut 0.196 1/8 Brass Nickel 0.312"
01-2405-1-03
01-2405-1-03
01-2405-1-03
0.375" 0.375 " Miniature 10-32 Nut 0.196 Up to 3/16 Brass Gold 0.312"
01-2515-2-02
01-2515-2-02
01-2515-2-02
0.495" 0.327 " Miniature Swage Mount 0.1405 1/16 Brass Nickel 0.105"
01-2515-2-044
01-2515-2-044
01-2515-2-044
0.495" 0.327 " Miniature Swage Mount 0.1405 1/16 Brass Bright Tin 0.105"
01-2541-1-03
01-2541-1-03
01-2541-1-03
0.625" 0.625 " Standard 1/4-28 Nut 0.257 Up to 3/8 Brass Gold 0.500"
01-2540-1-044
01-2540-1-044
01-2540-1-044
0.500" 0.500 " Standard 1/4-32 Nut 0.257 Up to 5/16 Brass Bright Tin 0.406"
01-2540-1-02
01-2540-1-02
01-2540-1-02
0.500" 0.500 " Standard 1/4-32 Nut 0.257 Up to 5/16 Brass Nickel 0.406"
01-2406-1-03
01-2406-1-03
01-2406-1-03
0.310" 0.310 " Miniature 10-32 Nut 0.196 1/8 Brass Gold 0.312"
01-2405-1-044
01-2405-1-044
01-2405-1-044
0.375" 0.375 " Miniature 10-32 Nut 0.196 Up to 3/16 Brass Bright Tin 0.312"
01-2542-1-044
01-2542-1-044
01-2542-1-044
0.625" 0.625 " Standard 1/4-32 Nut 0.257 Up to 3/8 Brass Bright Tin 0.500"
01-2542-1-02
01-2542-1-02
01-2542-1-02
0.625" 0.625 " Standard 1/4-32 Nut 0.257 Up to 3/8 Brass Nickel 0.500"
01-2540-1-03
01-2540-1-03
01-2540-1-03
0.500" 0.500 " Standard 1/4-32 Nut 0.257 Up to 5/16 Brass Gold 0.406"
