Military
Insulated
Terminals

Filter

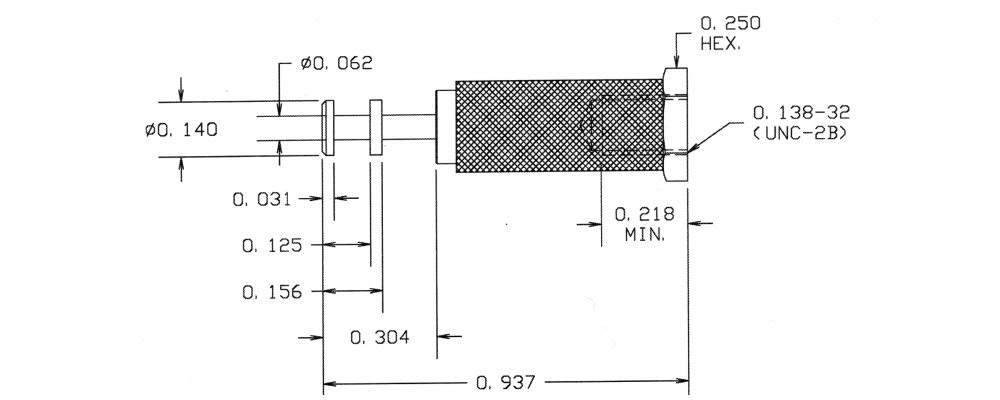

1127-07M-08818
1127-07M-08818
1127-07M-08818
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/208J04 AA59126/208J04

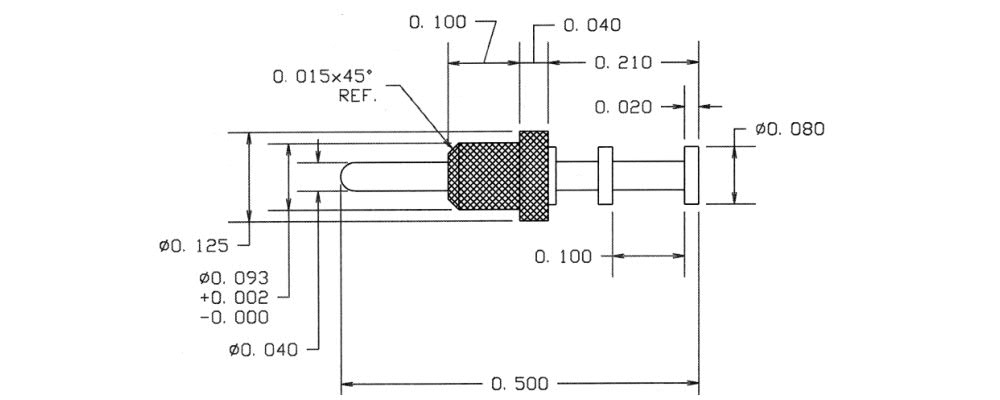

1133-03M-08811
1133-03M-08811
1133-03M-08811
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Brown M55155/041J03 AA59126/041J03

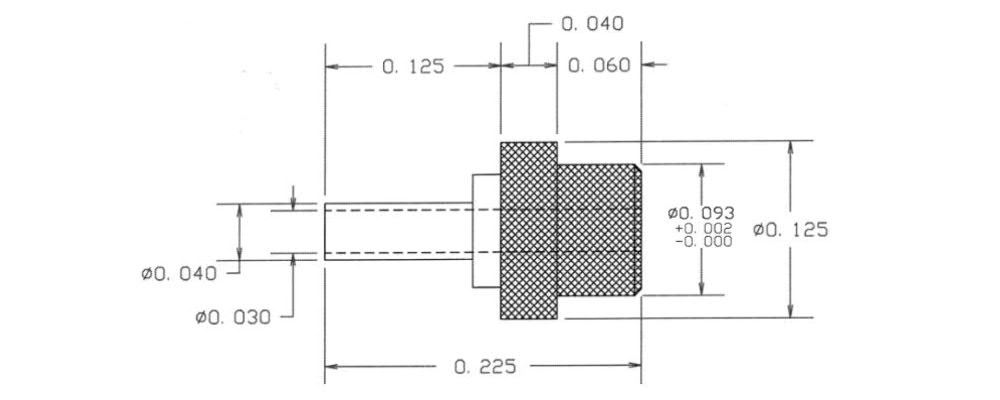

1114-04M-0514
1114-04M-0514
1114-04M-0514
0.225" - Press Fit 1/32 0.086 PTFE Yellow M55155/054H01 AA59126/054H01

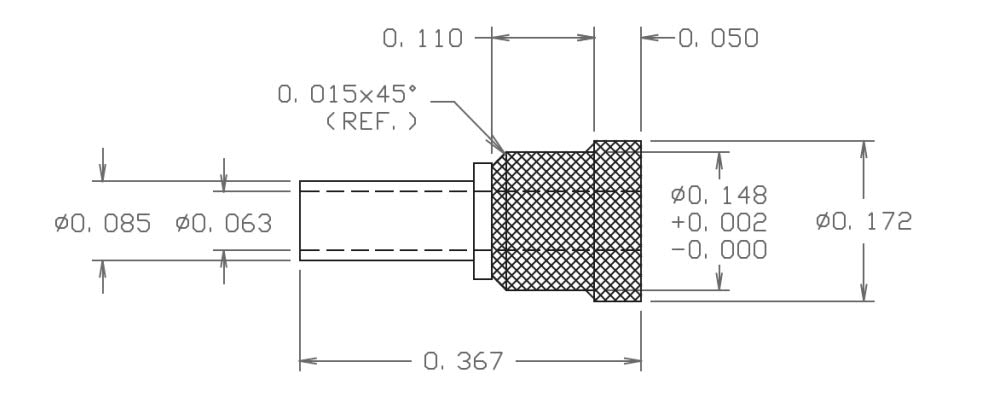

1114R-23M-08812
1114R-23M-08812
1114R-23M-08812
0.367" - Press Fit 1/16 0.136 PTFE Red M55155/062J02 AA59126/062J02

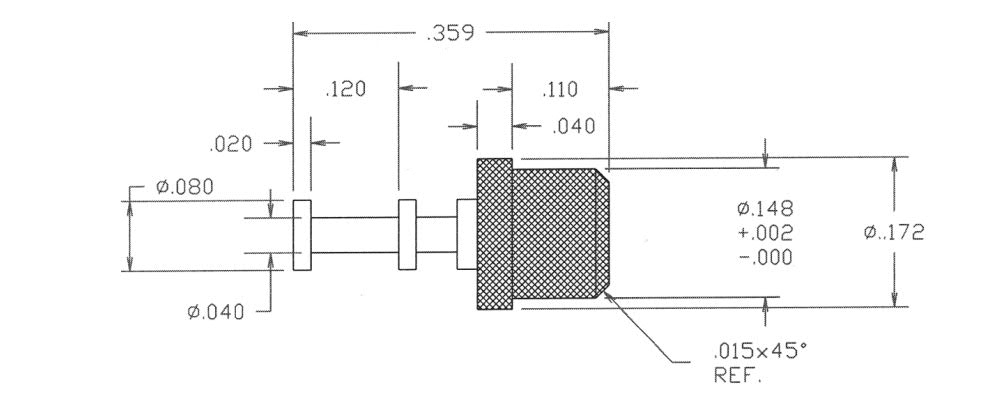

1102-14M-0511Z
1102-14M-0511Z
1102-14M-0511Z
0.359" - Press Fit 1/16 0.136 PTFE Brown M55155/071B01 AA59126/071B01

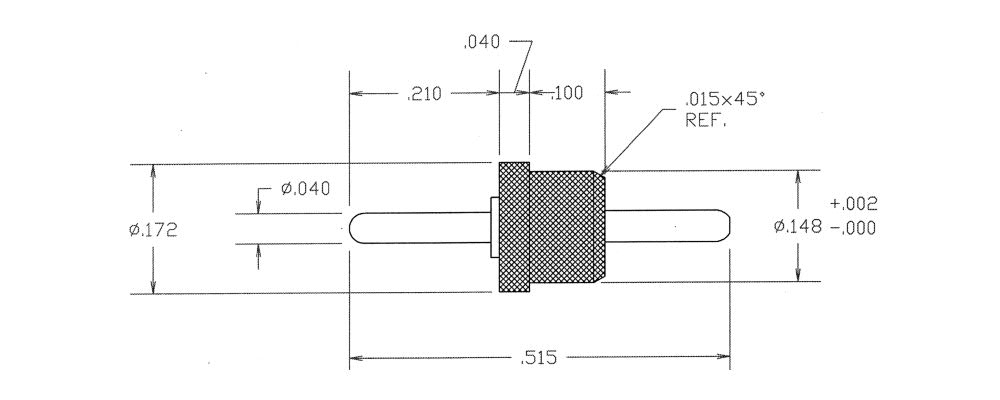

1110-21M-0519Z
1110-21M-0519Z
1110-21M-0519Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039B02 AA59126/039B02
1125-45M-0512Z
1125-45M-0512Z
1125-45M-0512Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Red M55155/092B02 AA59126/092B02

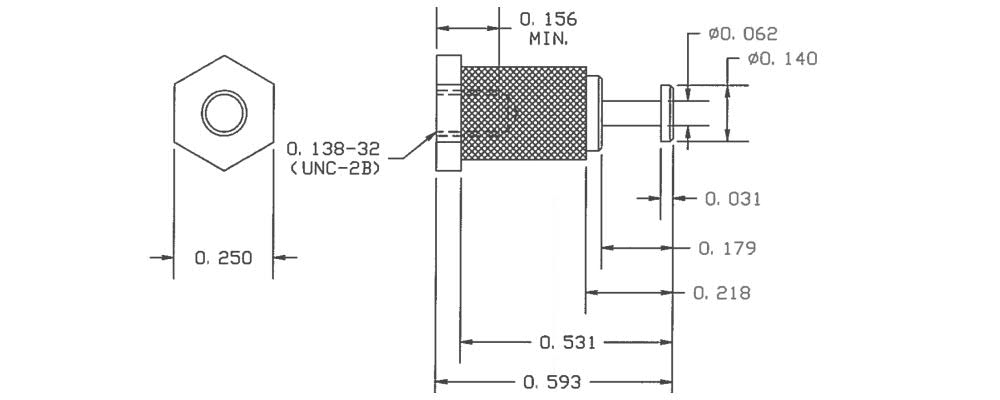

1127-03M-08810Z
1127-03M-08810Z
1127-03M-08810Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Black M55155/190D03 AA59126/190D03
1127-07M-08818Z
1127-07M-08818Z
1127-07M-08818Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/208D04 AA59126/208D04
1133-03M-08811Z
1133-03M-08811Z
1133-03M-08811Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Brown M55155/041D03 AA59126/041D03
1114-04M-0514Z
1114-04M-0514Z
1114-04M-0514Z
0.225" - Press Fit 1/32 0.086 PTFE Yellow M55155/054B01 AA59126/054B01
1114R-23M-08812Z
1114R-23M-08812Z
1114R-23M-08812Z
0.367" - Press Fit 1/16 0.136 PTFE Red M55155/062D02 AA59126/062D02
1102-14M-0512
1102-14M-0512
1102-14M-0512
0.359" - Press Fit 1/16 0.136 PTFE Red M55155/072H01 AA59126/072H01
1110-21M-08810
1110-21M-08810
1110-21M-08810
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Black M55155/030J02 AA59126/030J02
1125-45M-0513
1125-45M-0513
1125-45M-0513
0.890" - 6-32 Nut 1/8 0.144 PTFE Orange M55155/093H02 AA59126/093H02
1127-03M-08811
1127-03M-08811
1127-03M-08811
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/191J03 AA59126/191J03
1127-07M-08819
1127-07M-08819
1127-07M-08819
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE White M55155/209J04 AA59126/209J04
1133-03M-08812
1133-03M-08812
1133-03M-08812
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Red M55155/042J03 AA59126/042J03
1114-04M-0515
1114-04M-0515
1114-04M-0515
0.225" - Press Fit 1/32 0.086 PTFE Green M55155/055H01 AA59126/055H01
1114R-23M-08813
1114R-23M-08813
1114R-23M-08813
0.367" - Press Fit 1/16 0.136 PTFE Orange M55155/063J02 AA59126/063J02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
