Military
Insulated
Terminals

Filter
1110-75M-09516Z
1110-75M-09516Z
1110-75M-09516Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036C05 AA59126/036C05
1133-02M-09510Z
1133-02M-09510Z
1133-02M-09510Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Black M55155/040C02 AA59126/040C02
1125-42M-08816Z
1125-42M-08816Z
1125-42M-08816Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Blue M55155/106D01 AA59126/106D01
1127-05M-0517Z
1127-05M-0517Z
1127-05M-0517Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207B02 AA59126/207B02

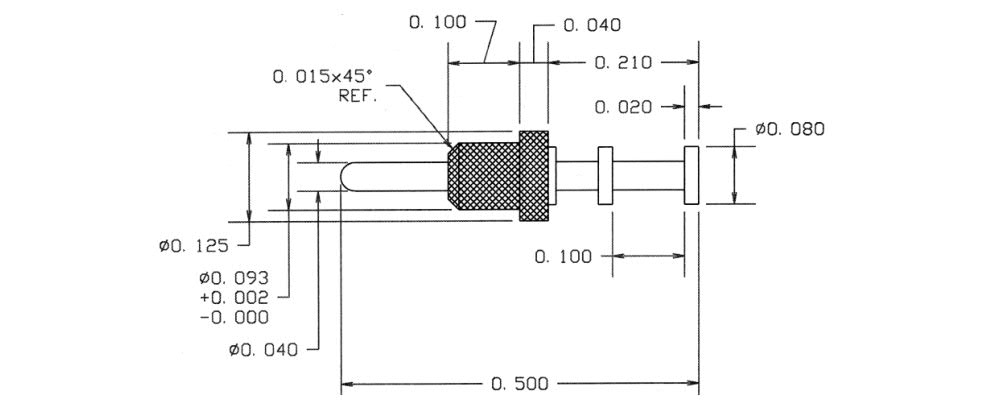

1133-03M-09518Z
1133-03M-09518Z
1133-03M-09518Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048C03 AA59126/048C03
1127-06M-09513Z
1127-06M-09513Z
1127-06M-09513Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/203C03 AA59126/203C03
1102-31M-0513Z
1102-31M-0513Z
1102-31M-0513Z
0.431" - Press Fit 1/8 0.152 PTFE Orange M55155/073B02 AA59126/073B02
1102-03M-09512Z
1102-03M-09512Z
1102-03M-09512Z
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/072C03 AA59126/072C03
1133-03M-0512Z
1133-03M-0512Z
1133-03M-0512Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Red M55155/042B03 AA59126/042B03
1125-42M-0517Z
1125-42M-0517Z
1125-42M-0517Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Violet M55155/107B01 AA59126/107B01
1127-05M-0519
1127-05M-0519
1127-05M-0519
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE White M55155/209H02 AA59126/209H02
1117-01M-08817
1117-01M-08817
1117-01M-08817
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Violet M55155/027J01 AA59126/027J01
1102-14M-0515Z
1102-14M-0515Z
1102-14M-0515Z
0.359" - Press Fit 1/16 0.136 PTFE Green M55155/075B01 AA59126/075B01
1133-02M-09513Z
1133-02M-09513Z
1133-02M-09513Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Orange M55155/043C02 AA59126/043C02
1110-40M-0514Z
1110-40M-0514Z
1110-40M-0514Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Yellow M55155/034B03 AA59126/034B03
1100-07M-0517Z
1100-07M-0517Z
1100-07M-0517Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087B02 AA59126/087B02
1133-03M-0517Z
1133-03M-0517Z
1133-03M-0517Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Violet M55155/047B03 AA59126/047B03
1169-37M-08815Z
1169-37M-08815Z
1169-37M-08815Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Green M55155/095D04 AA59126/095D04
1169-36M-0519Z
1169-36M-0519Z
1169-36M-0519Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE White M55155/099B03 AA59126/099B03
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
