Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS
10-410-3-035	0.463"	-	-	Swage Mount	0.135"	3/32	0.116	Brass	Gold	YES

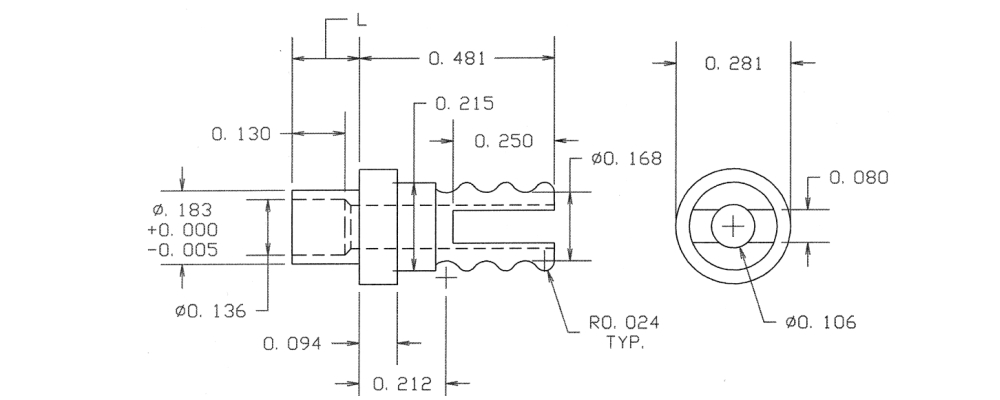

10-439-2-088	0.586"	-	-	Swage Mount	0.105"	1/16	0.1875	Brass	Bright Tin-Lead	NO

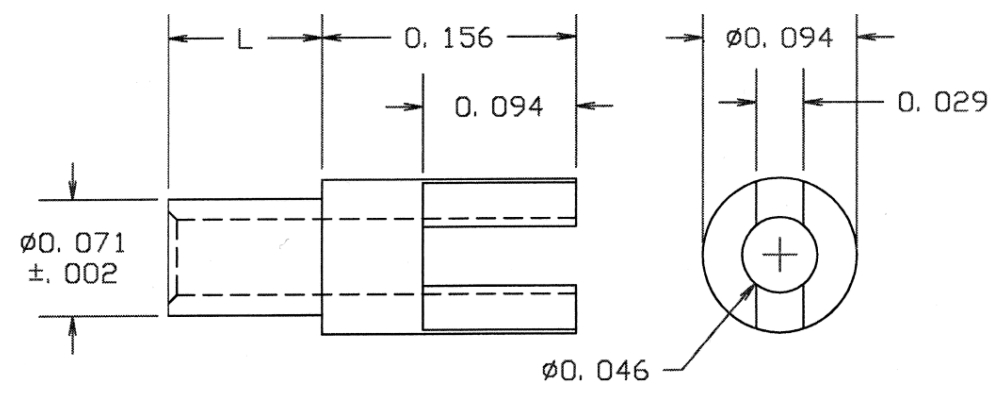

10-457-6-04	0.375"	-	-	Swage Mount	0.219"	3/16	0.076	Brass	Electro-Tin	YES

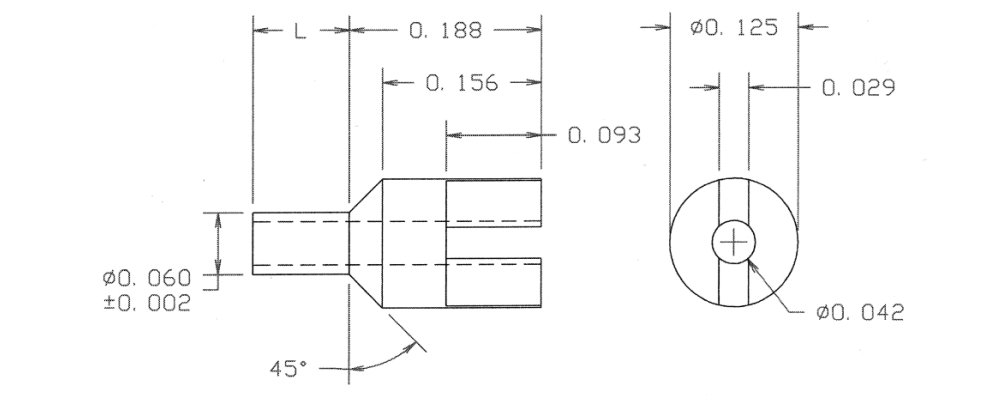

10-903-2-01	0.282"	-	-	Swage Mount	0.094"	1/16	0.063	Brass	Silver	YES

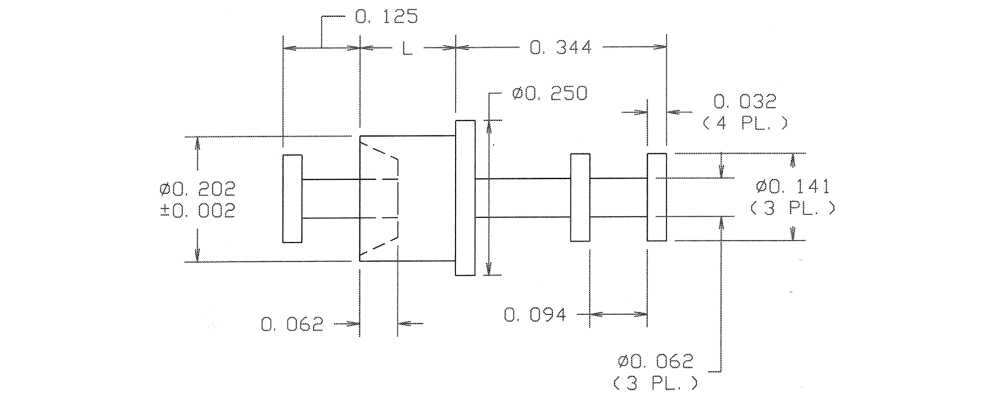

09-0033-1-01	0.563"	-	TURRET/DOUBLE TURRET	Swage Mount	0.094"	1/16	0.206	Brass	Silver	YES

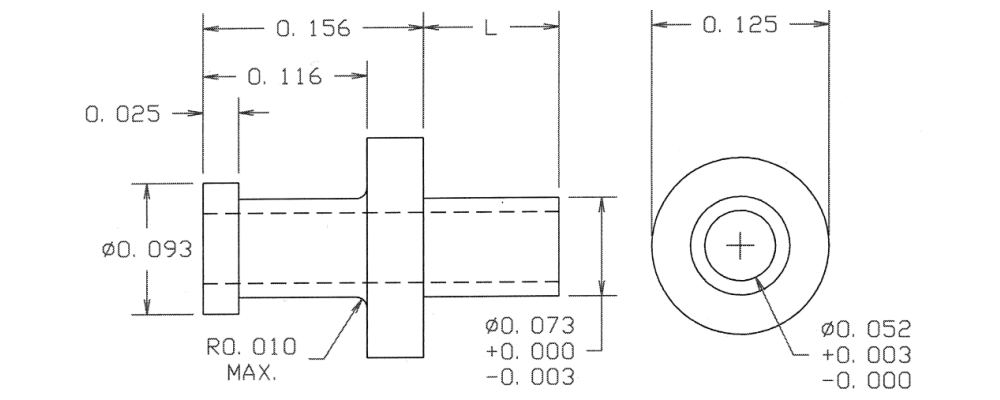

09-0078-4-01	0.303"	-	-	Swage Mount	0.147"	1/8	0.076	Brass	Silver	YES

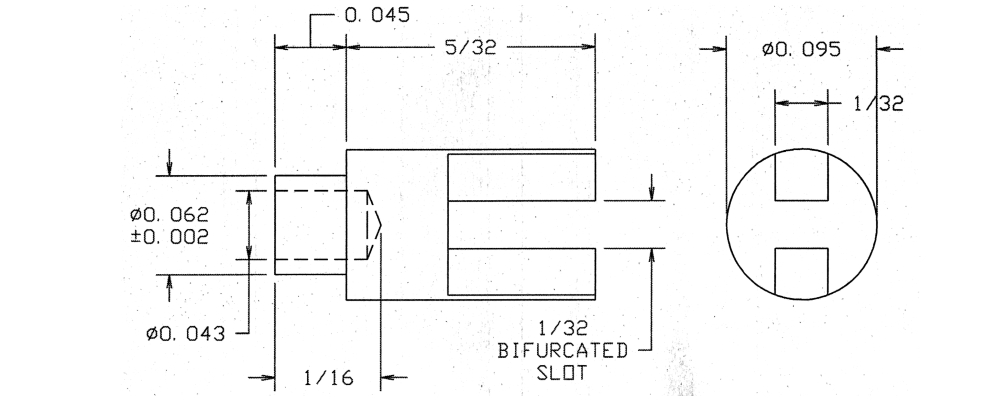

09-0166-1-03	0.201"	-	-	Swage Mount	0.045"	1/32	0.067	Brass	Gold	YES

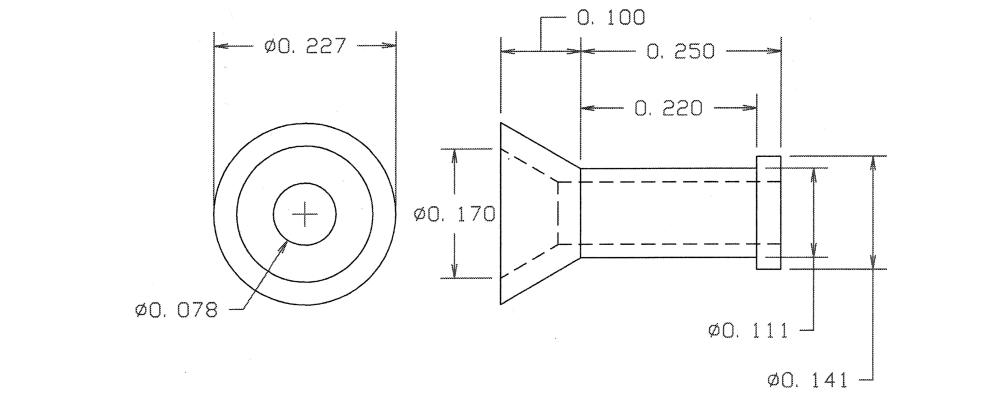

09-0205-1-04	0.350"	-	-	Solder	-	-	-	Brass	Electro-Tin	YES

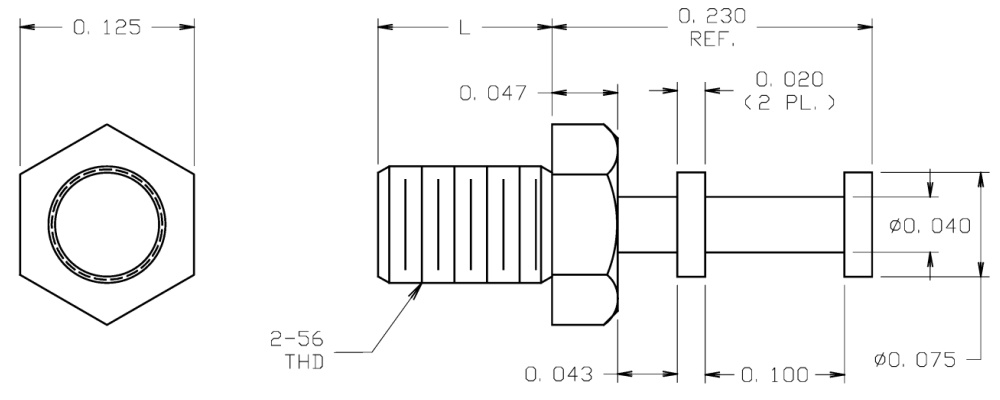

09-0241-1-03	0.293"	-	-	2-56	-	-	2-56 THREAD	Brass	Gold	YES

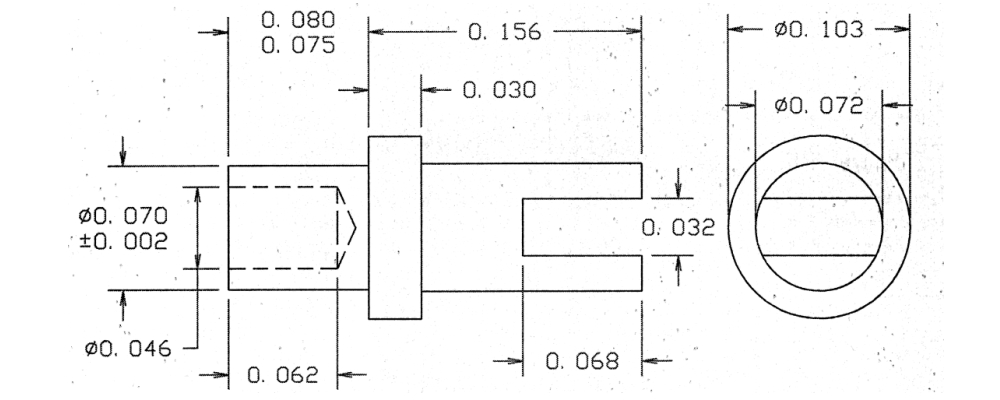

09-0286-2-035	0.234"	-	-	Swage Mount	0.078"	1/16	0.076	Brass	Gold	YES

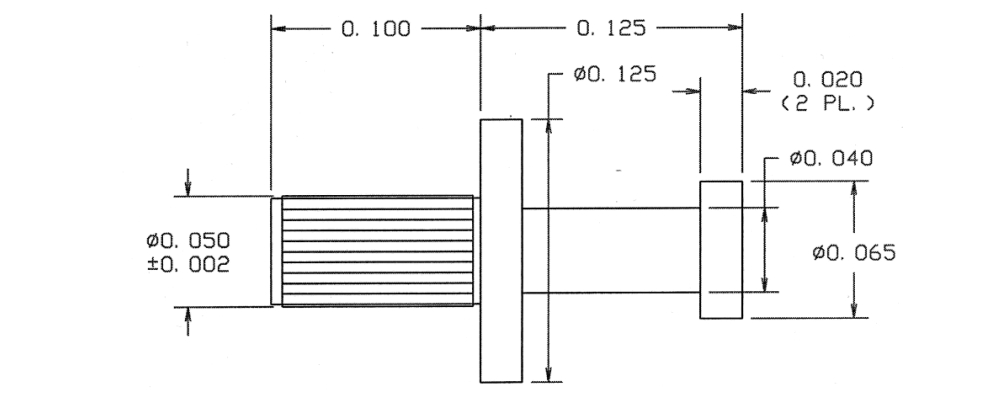

09-0352-3-04	0.225"	-	-	Press Fit/Solder	0.100"	3/32	0.047	Brass	Electro-Tin	YES

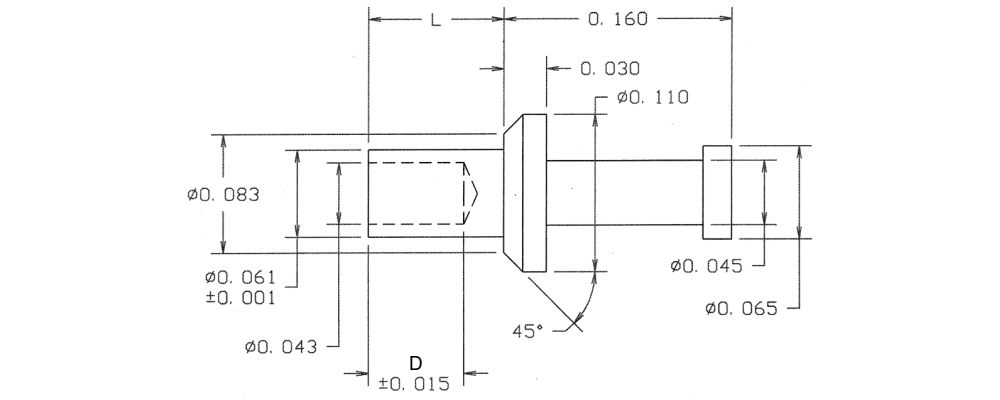

09-7012-2-01	0.255"	-	-	Swage Mount	0.095"	1/16	0.067	Brass	Silver	YES

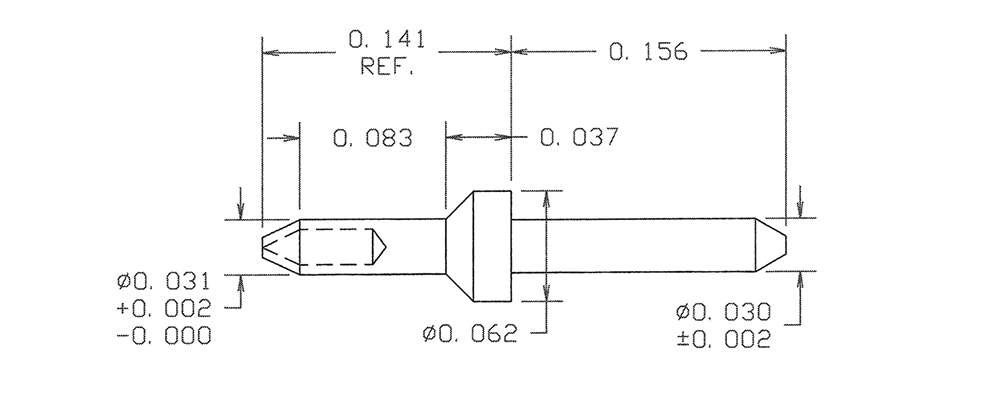

09-7115-2-04	0.297"	0.030	-	RIVET MOUNT	0.083"	1/16	0.035	Brass	Electro-Tin	YES
09-7148-3-01	0.453"	0.040	-	RIVET MOUNT	0.152"	3/32	0.048	Brass	Silver	YES

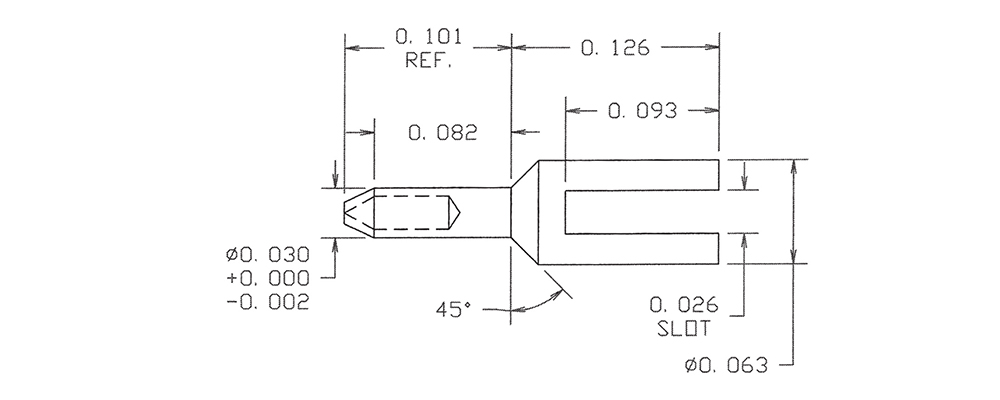

09-7180-2-044	0.227"	-	-	RIVET MOUNT	0.083"	1/16	0.032	Brass	Bright Tin	YES

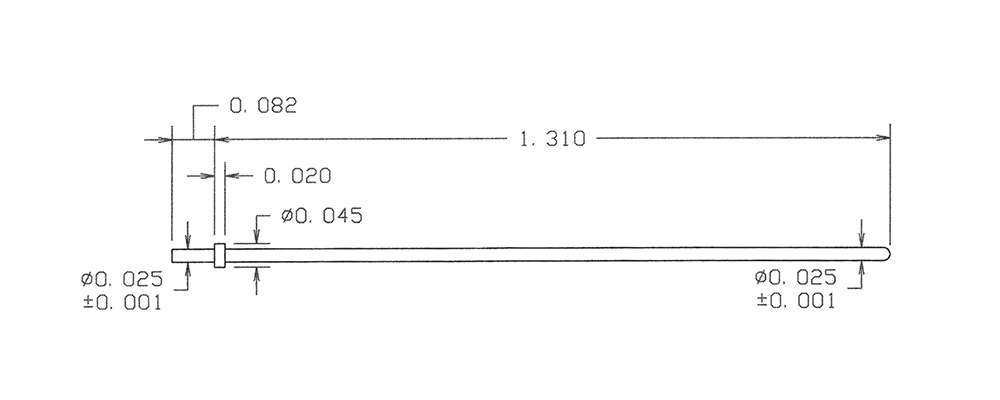

09-8021-2-03	1.392"	0.025	-	Solder	0.082"	1/16	0.028	Brass	Gold	YES

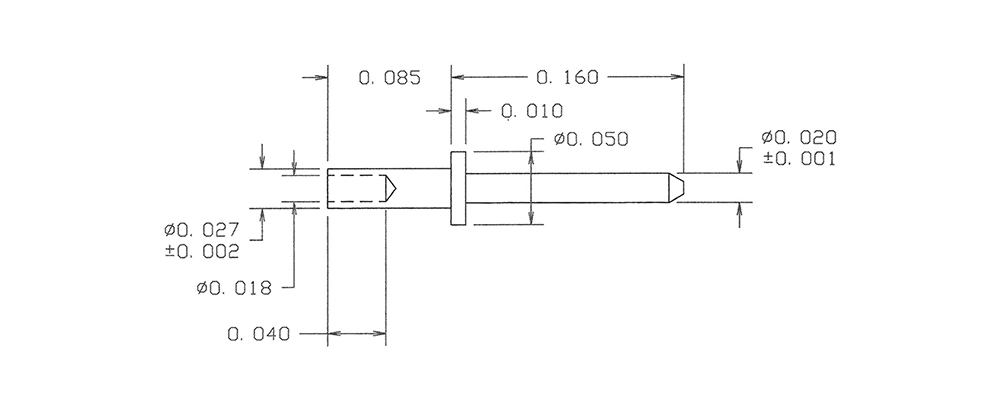

09-8056-2-044	0.245"	0.020	-	Swage Mount	0.085"	1/16	0.031	Brass	Bright Tin	YES

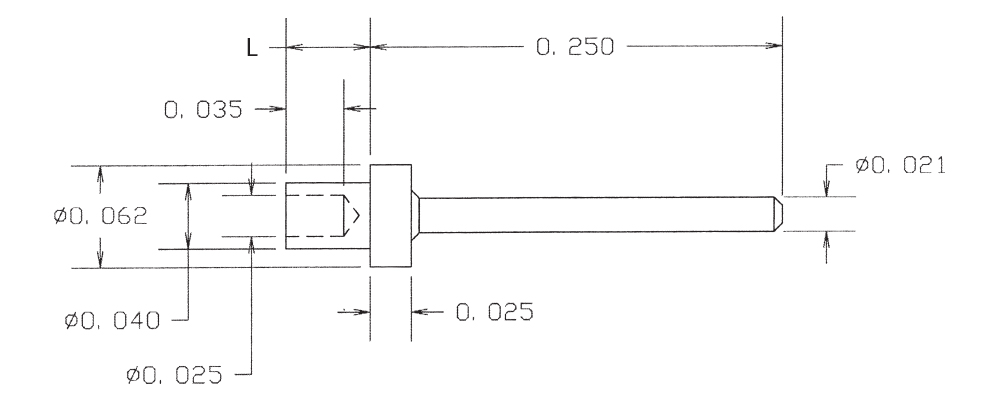

09-8096-1-03	0.301"	0.021	-	Swage Mount	0.051"	1/32	0.043	Brass	Gold	YES

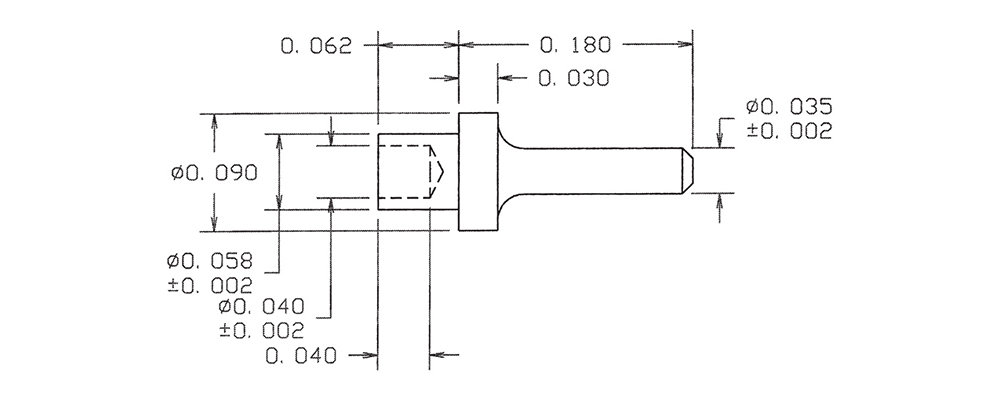

09-8153-1-05	0.242"	0.035	-	Swage Mount	0.062"	1/32	0.0625	Brass	Electro Solder	NO

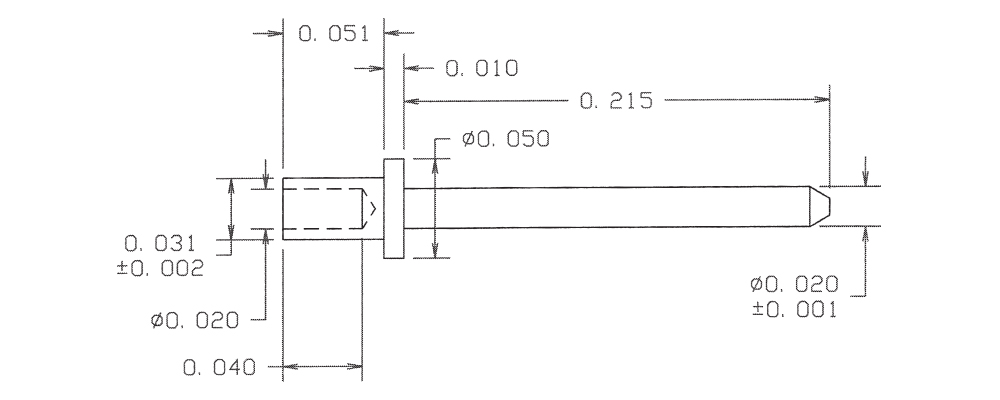

09-8181-1-035	0.276"	0.020	-	Swage Mount	0.051"	1/32	0.035	Brass	Gold	YES
