Military
Insulated
Terminals

Filter
1133-02M-08816
1133-02M-08816
1133-02M-08816
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Blue M55155/046J02 AA59126/046J02

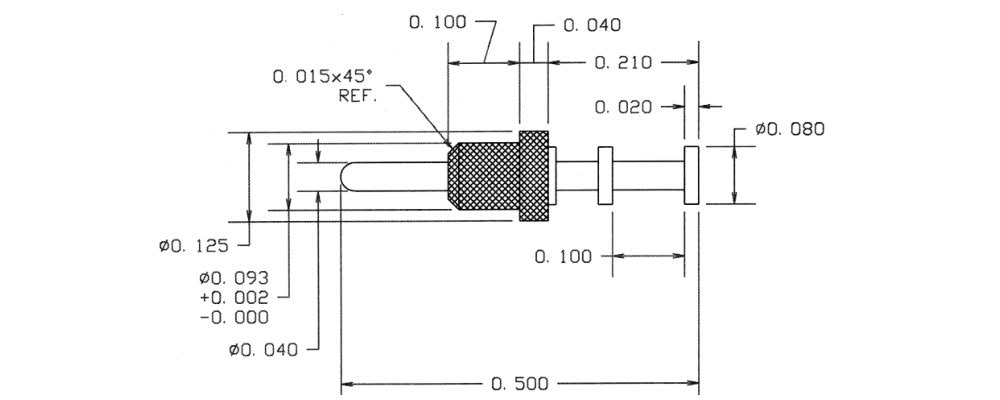

1133-03M-09512
1133-03M-09512
1133-03M-09512
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Red M55155/042I03 AA59126/042I03
1133-01M-0519
1133-01M-0519
1133-01M-0519
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE White M55155/049H01 AA59126/049H01
1133-03M-08816
1133-03M-08816
1133-03M-08816
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Blue M55155/046J03 AA59126/046J03
1133-02M-08818
1133-02M-08818
1133-02M-08818
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Gray M55155/048J02 AA59126/048J02
1133-03M-0516
1133-03M-0516
1133-03M-0516
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Blue M55155/046H03 AA59126/046H03
1133-02M-0512
1133-02M-0512
1133-02M-0512
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042H02 AA59126/042H02
1133-03M-09510
1133-03M-09510
1133-03M-09510
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Black M55155/040I03 AA59126/040I03
1133-03M-0514
1133-03M-0514
1133-03M-0514
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044H03 AA59126/044H03
1133-03M-08818
1133-03M-08818
1133-03M-08818
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048J03 AA59126/048J03
1133-03M-09516
1133-03M-09516
1133-03M-09516
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Blue M55155/046I03 AA59126/046I03
1133-03M-0517
1133-03M-0517
1133-03M-0517
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Violet M55155/047H03 AA59126/047H03
1133-01M-08816
1133-01M-08816
1133-01M-08816
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Blue M55155/046J01 AA59126/046J01
1133-01M-0516
1133-01M-0516
1133-01M-0516
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Blue M55155/046H01 AA59126/046H01
1133-03M-0511
1133-03M-0511
1133-03M-0511
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Brown M55155/041H03 AA59126/041H03
1133-03M-09514
1133-03M-09514
1133-03M-09514
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044I03 AA59126/044I03
1133-01M-0517
1133-01M-0517
1133-01M-0517
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Violet M55155/047H01 AA59126/047H01
1133-02M-08819
1133-02M-08819
1133-02M-08819
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE White M55155/049J02 AA59126/049J02
1102-14M-09519
1102-14M-09519
1102-14M-09519
0.359" - Press Fit 1/16 0.136 PTFE White M55155/079I01 AA59126/079I01

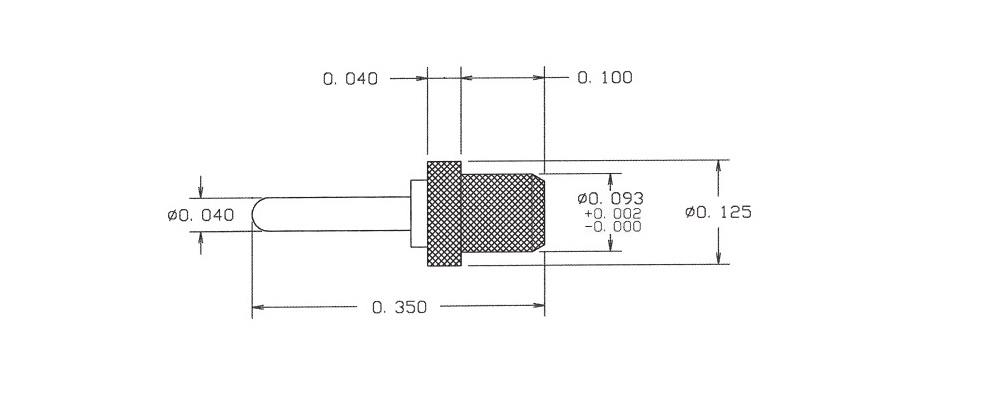

1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
