Military
Insulated
Terminals

Filter
1133-02M-08812Z
1133-02M-08812Z
1133-02M-08812Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042D02 AA59126/042D02
1100-07M-09514Z
1100-07M-09514Z
1100-07M-09514Z
0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/084C02 AA59126/084C02
1133-01M-08812Z
1133-01M-08812Z
1133-01M-08812Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Red M55155/042D01 AA59126/042D01
1100-07M-09510Z
1100-07M-09510Z
1100-07M-09510Z
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/080C02 AA59126/080C02
1110-75M-09513Z
1110-75M-09513Z
1110-75M-09513Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Orange M55155/033C05 AA59126/033C05
1110-05M-0514Z
1110-05M-0514Z
1110-05M-0514Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034B04 AA59126/034B04
1169-36M-0516Z
1169-36M-0516Z
1169-36M-0516Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Blue M55155/096B03 AA59126/096B03
1169-36M-08816Z
1169-36M-08816Z
1169-36M-08816Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Blue M55155/096D03 AA59126/096D03
1169-36M-0517Z
1169-36M-0517Z
1169-36M-0517Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Violet M55155/097B03 AA59126/097B03
1127-68M-0512Z
1127-68M-0512Z
1127-68M-0512Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182B01 AA59126/182B01

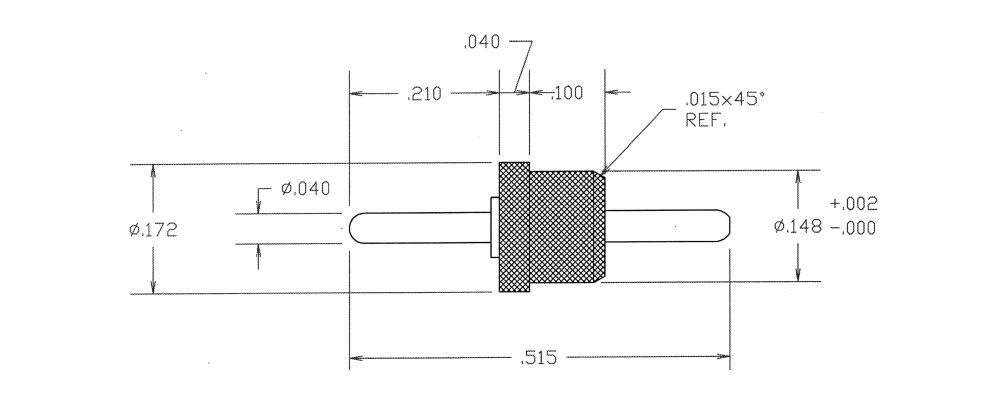

1110-21M-08811Z
1110-21M-08811Z
1110-21M-08811Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031D02 AA59126/031D02
1127-69M-0512Z
1127-69M-0512Z
1127-69M-0512Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182B02 AA59126/182B02
1169-36M-09516Z
1169-36M-09516Z
1169-36M-09516Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Blue M55155/096C03 AA59126/096C03
1127-68M-0516Z
1127-68M-0516Z
1127-68M-0516Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186B01 AA59126/186B01
1125-45M-08819
1125-45M-08819
1125-45M-08819
0.890" - 6-32 Nut 1/8 0.144 PTFE White M55155/099J02 AA59126/099J02

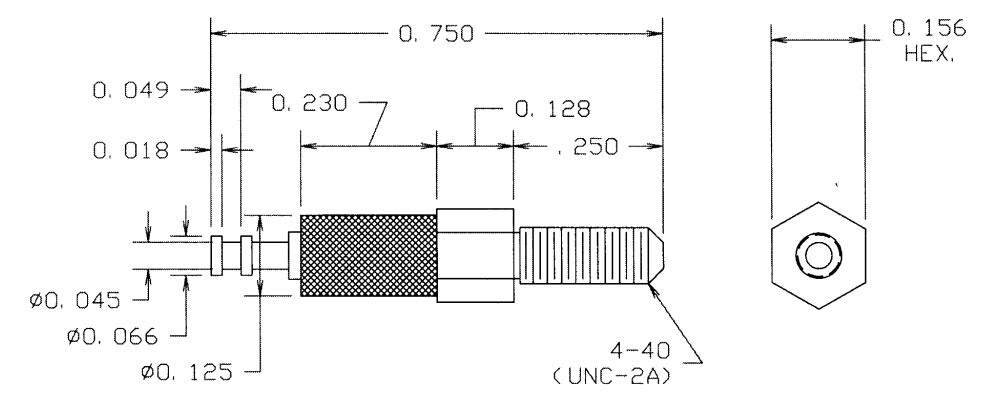

1125-43M-0512
1125-43M-0512
1125-43M-0512
0.750" - 4-40 Nut 1/8 0.120 PTFE Red M55155/092H01 AA59126/092H01
1125-45M-08812
1125-45M-08812
1125-45M-08812
0.890" - 6-32 Nut 1/8 0.144 PTFE Red M55155/092J02 AA59126/092J02
1125-45M-08810
1125-45M-08810
1125-45M-08810
0.890" - 6-32 Nut 1/8 0.144 PTFE Black M55155/090J02 AA59126/090J02
1125-45M-08814
1125-45M-08814
1125-45M-08814
0.890" - 6-32 Nut 1/8 0.144 PTFE Yellow M55155/094J02 AA59126/094J02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
