Military
Insulated
Terminals

Filter
1102-03M-09510
1102-03M-09510
1102-03M-09510
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/070I03 AA59126/070I03
1102-03M-09511
1102-03M-09511
1102-03M-09511
0.350" - Press Fit 1/16 0.086 PTFE Brown M55155/071I03 AA59126/071I03
1102-03M-09513
1102-03M-09513
1102-03M-09513
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/073I03 AA59126/073I03
1102-03M-09514
1102-03M-09514
1102-03M-09514
0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/074I03 AA59126/074I03

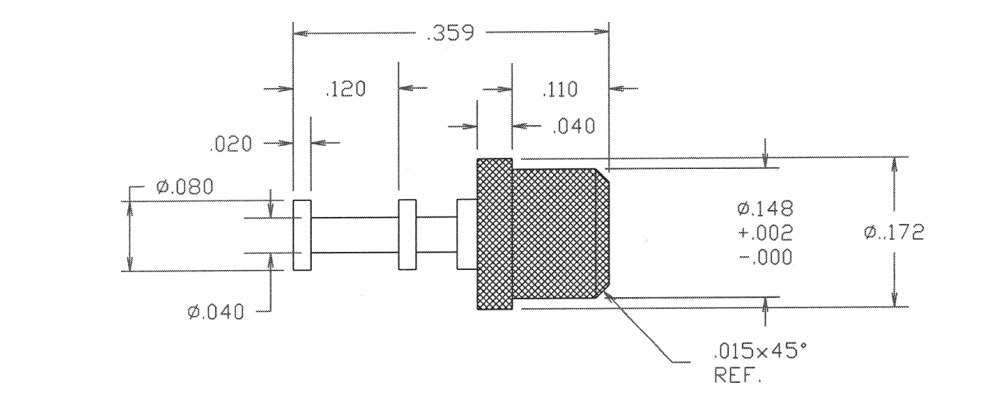

1102-14M-0519
1102-14M-0519
1102-14M-0519
0.359" - Press Fit 1/16 0.136 PTFE White M55155/079H01 AA59126/079H01
1133-02M-0515
1133-02M-0515
1133-02M-0515
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Green M55155/045H02 AA59126/045H02
1133-02M-0511
1133-02M-0511
1133-02M-0511
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Brown M55155/041H02 AA59126/041H02
1133-02M-0510
1133-02M-0510
1133-02M-0510
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Black M55155/040H02 AA59126/040H02

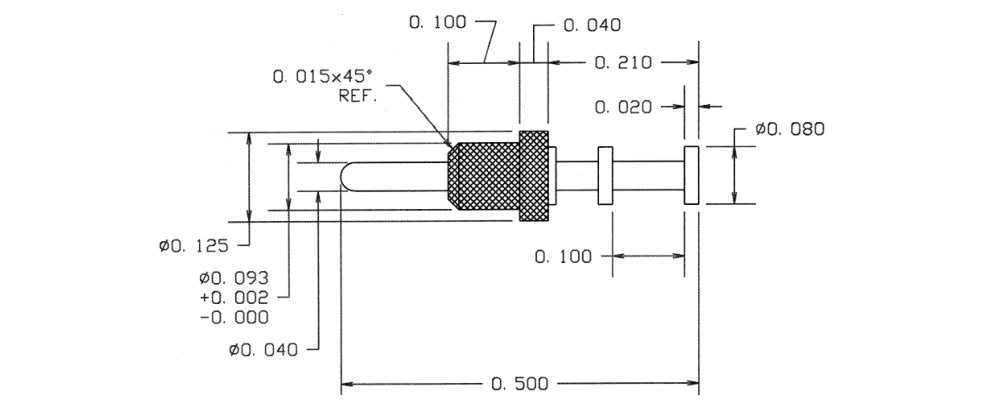

1133-03M-08811
1133-03M-08811
1133-03M-08811
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Brown M55155/041J03 AA59126/041J03
1133-01M-0515
1133-01M-0515
1133-01M-0515
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Green M55155/045H01 AA59126/045H01
1133-03M-08812
1133-03M-08812
1133-03M-08812
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Red M55155/042J03 AA59126/042J03
1133-03M-08814
1133-03M-08814
1133-03M-08814
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044J03 AA59126/044J03
1133-03M-08815
1133-03M-08815
1133-03M-08815
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Green M55155/045J03 AA59126/045J03
1133-03M-08817
1133-03M-08817
1133-03M-08817
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Violet M55155/047J03 AA59126/047J03
1133-03M-09518
1133-03M-09518
1133-03M-09518
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048I03 AA59126/048I03
1133-03M-09515
1133-03M-09515
1133-03M-09515
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Green M55155/045I03 AA59126/045I03
1133-03M-09511
1133-03M-09511
1133-03M-09511
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Brown M55155/041I03 AA59126/041I03
1133-01M-09515
1133-01M-09515
1133-01M-09515
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Green M55155/045I01 AA59126/045I01
1133-01M-09513
1133-01M-09513
1133-01M-09513
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Orange M55155/043I01 AA59126/043I01
1133-01M-09511
1133-01M-09511
1133-01M-09511
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Brown M55155/041I01 AA59126/041I01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
