Military
Insulated
Terminals

Filter
1110-16M-09517
1110-16M-09517
1110-16M-09517
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037I01 AA59126/037I01
1110-16M-09516
1110-16M-09516
1110-16M-09516
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036I01 AA59126/036I01
1110-16M-09515
1110-16M-09515
1110-16M-09515
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035I01 AA59126/035I01
1110-16M-09514
1110-16M-09514
1110-16M-09514
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Yellow M55155/034I01 AA59126/034I01
1110-16M-09512
1110-16M-09512
1110-16M-09512
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032I01 AA59126/032I01

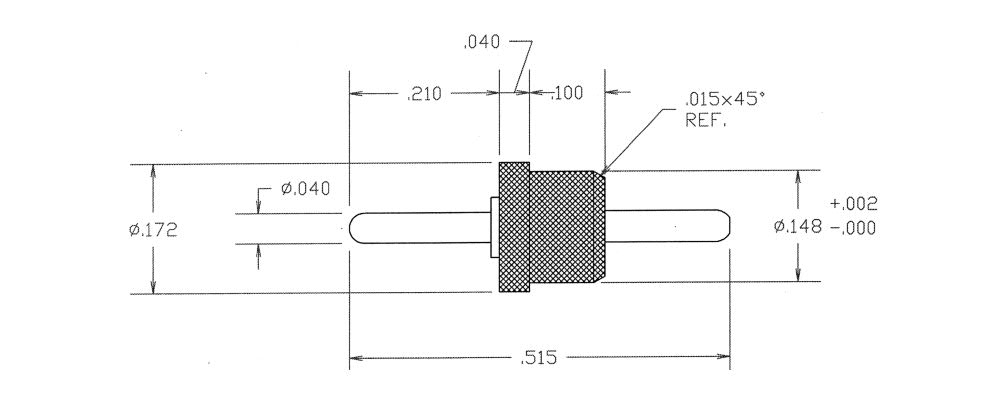

1110-21M-0515
1110-21M-0515
1110-21M-0515
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035H02 AA59126/035H02
1127-68M-09519
1127-68M-09519
1127-68M-09519
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189I01 AA59126/189I01
1114-08M-0518
1114-08M-0518
1114-08M-0518
0.310" - Press Fit 3/32 0.108 PTFE Gray M55155/058H02 AA59126/058H02
1102-03M-08812
1102-03M-08812
1102-03M-08812
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/072J03 AA59126/072J03
1102-03M-08813
1102-03M-08813
1102-03M-08813
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/073J03 AA59126/073J03

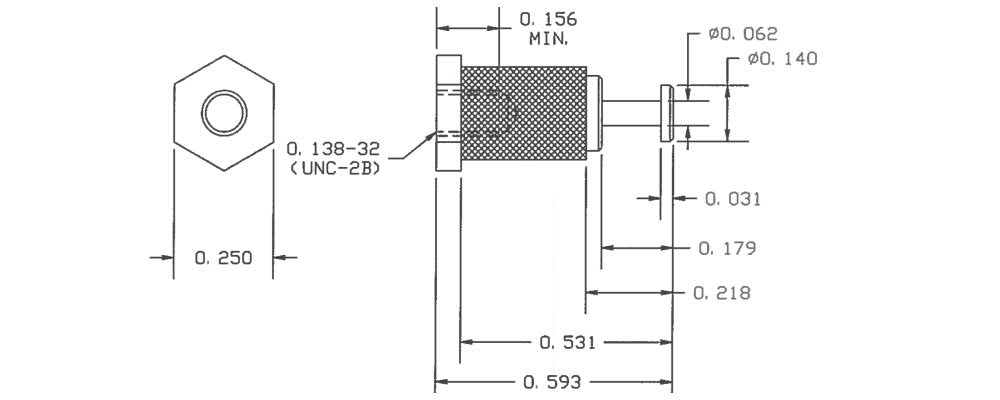

1127-03M-09517
1127-03M-09517
1127-03M-09517
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/197I03 AA59126/197I03
1102-31M-08812
1102-31M-08812
1102-31M-08812
0.431" - Press Fit 1/8 0.152 PTFE Red M55155/072J02 AA59126/072J02
1102-03M-0516
1102-03M-0516
1102-03M-0516
0.350" - Press Fit 1/16 0.086 PTFE Blue M55155/076H03 AA59126/076H03
1102-03M-09516
1102-03M-09516
1102-03M-09516
0.350" - Press Fit 1/16 0.086 PTFE Blue M55155/076I03 AA59126/076I03
1110-21M-0517
1110-21M-0517
1110-21M-0517
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037H02 AA59126/037H02
1169-38M-09510Z
1169-38M-09510Z
1169-38M-09510Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Black M55155/090C05 AA59126/090C05

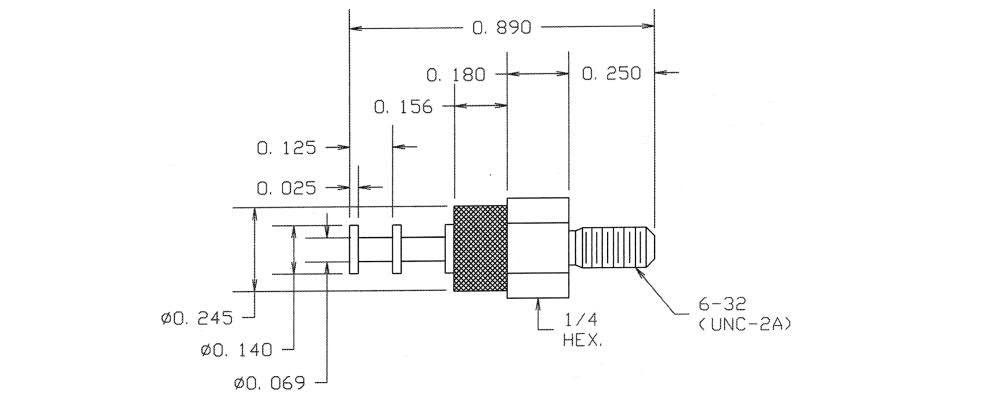

1125-45M-08817
1125-45M-08817
1125-45M-08817
0.890" - 6-32 Nut 1/8 0.144 PTFE Violet M55155/097J02 AA59126/097J02
1125-45M-08815
1125-45M-08815
1125-45M-08815
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095J02 AA59126/095J02
1125-45M-08813
1125-45M-08813
1125-45M-08813
0.890" - 6-32 Nut 1/8 0.144 PTFE Orange M55155/093J02 AA59126/093J02
1169-38M-0519Z
1169-38M-0519Z
1169-38M-0519Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE White M55155/099B05 AA59126/099B05
