Military
Insulated
Terminals

Filter

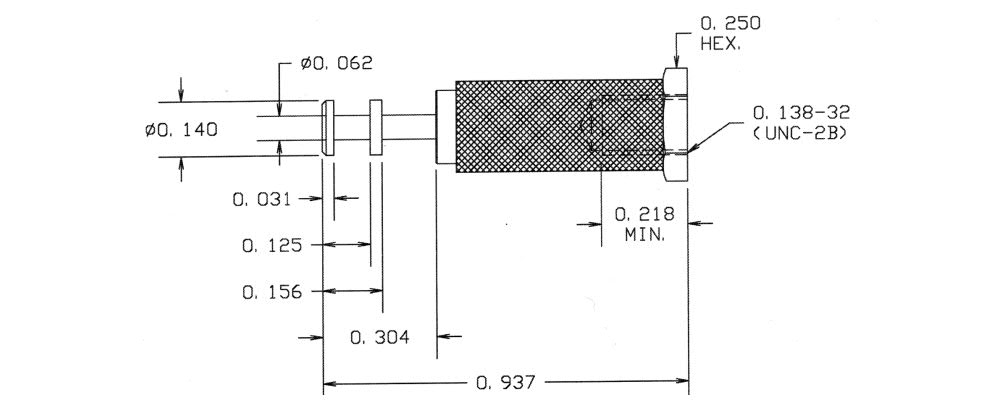

1127-05M-0512
1127-05M-0512
1127-05M-0512
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202H02 AA59126/202H02
1125-46M-09513
1125-46M-09513
1125-46M-09513
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Orange M55155/103I02 AA59126/103I02
1125-46M-0519
1125-46M-0519
1125-46M-0519
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109H02 AA59126/109H02
1125-46M-0515
1125-46M-0515
1125-46M-0515
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Green M55155/105H02 AA59126/105H02
1125-42M-0518
1125-42M-0518
1125-42M-0518
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Gray M55155/108H01 AA59126/108H01
1125-46M-09519
1125-46M-09519
1125-46M-09519
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109I02 AA59126/109I02
1125-46M-09517
1125-46M-09517
1125-46M-09517
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107I02 AA59126/107I02
1125-46M-09516
1125-46M-09516
1125-46M-09516
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Blue M55155/106I02 AA59126/106I02
1125-46M-08816
1125-46M-08816
1125-46M-08816
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Blue M55155/106J02 AA59126/106J02
1125-46M-08815
1125-46M-08815
1125-46M-08815
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Green M55155/105J02 AA59126/105J02
1125-46M-08814
1125-46M-08814
1125-46M-08814
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Yellow M55155/104J02 AA59126/104J02
1125-46M-08811
1125-46M-08811
1125-46M-08811
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Brown M55155/101J02 AA59126/101J02
1125-42M-08815
1125-42M-08815
1125-42M-08815
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Green M55155/105J01 AA59126/105J01
1125-42M-08816
1125-42M-08816
1125-42M-08816
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Blue M55155/106J01 AA59126/106J01
1125-42M-09518
1125-42M-09518
1125-42M-09518
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Gray M55155/108I01 AA59126/108I01
1125-42M-0515
1125-42M-0515
1125-42M-0515
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Green M55155/105H01 AA59126/105H01
1125-42M-08818
1125-42M-08818
1125-42M-08818
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Gray M55155/108J01 AA59126/108J01
1125-42M-09513
1125-42M-09513
1125-42M-09513
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Orange M55155/103I01 AA59126/103I01
1110-05M-0517
1110-05M-0517
1110-05M-0517
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037H04 AA59126/037H04
1110-16M-09518
1110-16M-09518
1110-16M-09518
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038I01 AA59126/038I01
