Military
Insulated
Terminals

Filter
1127-07M-09513
1127-07M-09513
1127-07M-09513
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/203I04 AA59126/203I04

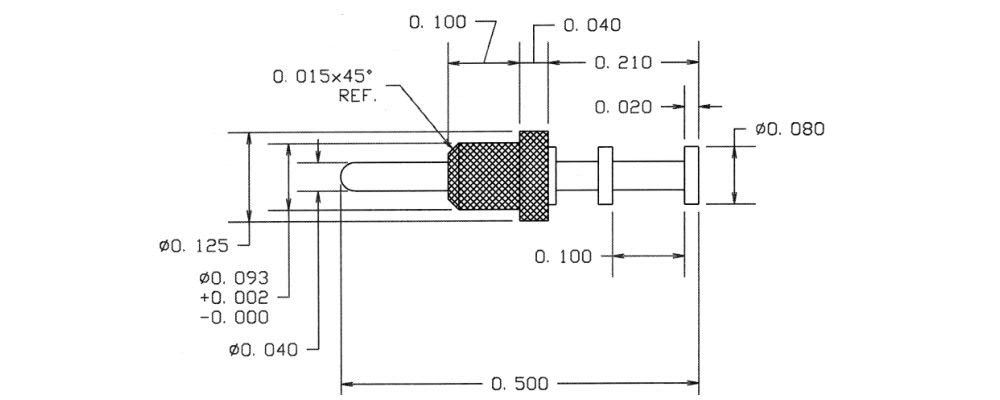

1133-03M-08816
1133-03M-08816
1133-03M-08816
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Blue M55155/046J03 AA59126/046J03
1114-04M-0519
1114-04M-0519
1114-04M-0519
0.225" - Press Fit 1/32 0.086 PTFE White M55155/059H01 AA59126/059H01
1114R-23M-08817
1114R-23M-08817
1114R-23M-08817
0.367" - Press Fit 1/16 0.136 PTFE Violet M55155/067J02 AA59126/067J02

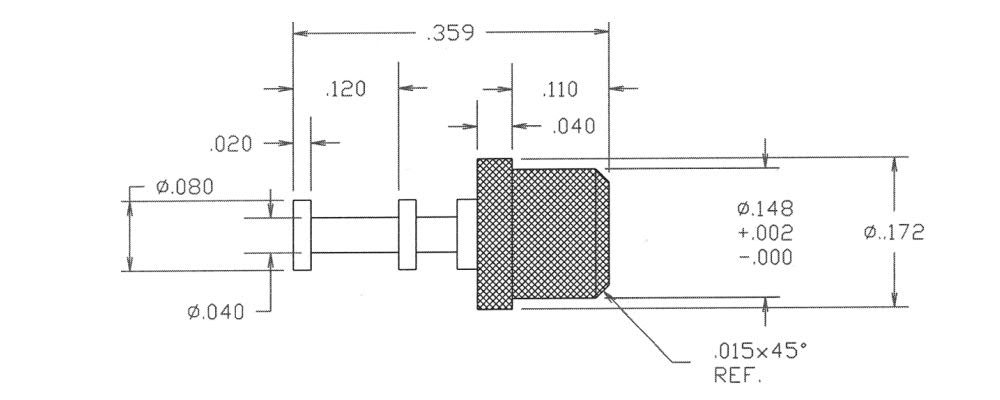

1102-14M-0516Z
1102-14M-0516Z
1102-14M-0516Z
0.359" - Press Fit 1/16 0.136 PTFE Blue M55155/076B01 AA59126/076B01
1110-21M-08814Z
1110-21M-08814Z
1110-21M-08814Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Yellow M55155/034D02 AA59126/034D02
1125-45M-0517Z
1125-45M-0517Z
1125-45M-0517Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Violet M55155/097B02 AA59126/097B02
1127-03M-08815Z
1127-03M-08815Z
1127-03M-08815Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/195D03 AA59126/195D03
1127-07M-09513Z
1127-07M-09513Z
1127-07M-09513Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/203C04 AA59126/203C04
1133-03M-08816Z
1133-03M-08816Z
1133-03M-08816Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Blue M55155/046D03 AA59126/046D03
1114-04M-0519Z
1114-04M-0519Z
1114-04M-0519Z
0.225" - Press Fit 1/32 0.086 PTFE White M55155/059B01 AA59126/059B01
1114R-23M-08817Z
1114R-23M-08817Z
1114R-23M-08817Z
0.367" - Press Fit 1/16 0.136 PTFE Violet M55155/067D02 AA59126/067D02
1102-14M-0517
1102-14M-0517
1102-14M-0517
0.359" - Press Fit 1/16 0.136 PTFE Violet M55155/077H01 AA59126/077H01
1110-21M-08815
1110-21M-08815
1110-21M-08815
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035J02 AA59126/035J02
1125-45M-0518
1125-45M-0518
1125-45M-0518
0.890" - 6-32 Nut 1/8 0.144 PTFE Gray M55155/098H02 AA59126/098H02
1127-03M-08816
1127-03M-08816
1127-03M-08816
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/196J03 AA59126/196J03
1127-07M-09514
1127-07M-09514
1127-07M-09514
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Yellow M55155/204I04 AA59126/204I04
1133-03M-08817
1133-03M-08817
1133-03M-08817
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Violet M55155/047J03 AA59126/047J03
1114-04M-08810
1114-04M-08810
1114-04M-08810
0.225" - Press Fit 1/32 0.086 PTFE Black M55155/050J01 AA59126/050J01
1114R-23M-08818
1114R-23M-08818
1114R-23M-08818
0.367" - Press Fit 1/16 0.136 PTFE Gray M55155/068J02 AA59126/068J02
