Military
Insulated
Terminals

Filter

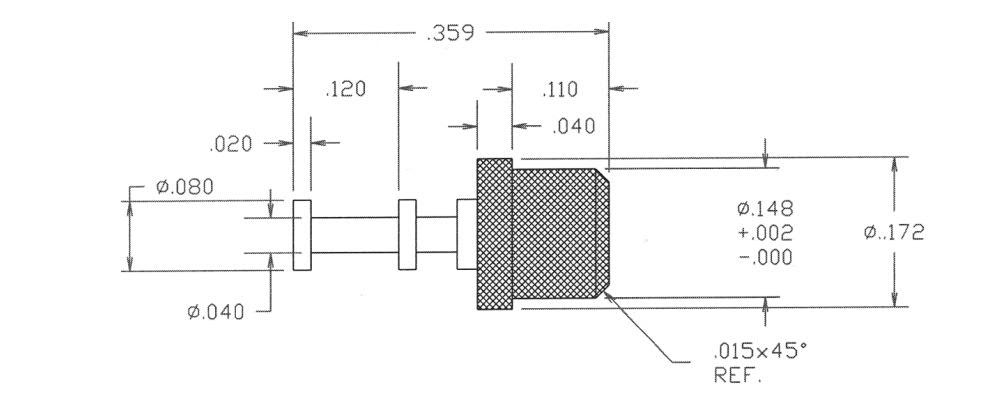

1102-14M-08815
1102-14M-08815
1102-14M-08815
0.359" - Press Fit 1/16 0.136 PTFE Green M55155/075J01 AA59126/075J01
1110-21M-09513
1110-21M-09513
1110-21M-09513
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Orange M55155/033I02 AA59126/033I02
1125-45M-08816
1125-45M-08816
1125-45M-08816
0.890" - 6-32 Nut 1/8 0.144 PTFE Blue M55155/096J02 AA59126/096J02
1127-03M-09514
1127-03M-09514
1127-03M-09514
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Yellow M55155/194I03 AA59126/194I03

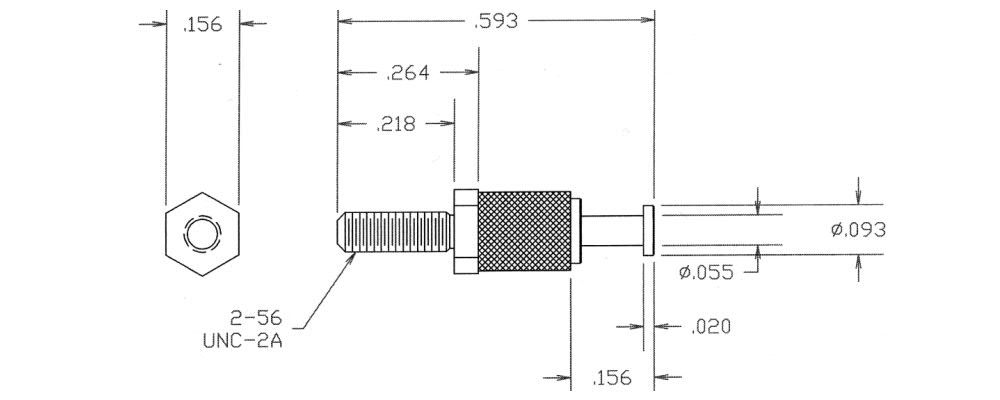

1127-68M-0512
1127-68M-0512
1127-68M-0512
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182H01 AA59126/182H01
1133-03M-09515
1133-03M-09515
1133-03M-09515
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Green M55155/045I03 AA59126/045I03
1114-04M-08818
1114-04M-08818
1114-04M-08818
0.225" - Press Fit 1/32 0.086 PTFE Gray M55155/058J01 AA59126/058J01
1114R-23M-09516
1114R-23M-09516
1114R-23M-09516
0.367" - Press Fit 1/16 0.136 PTFE Blue M55155/066I02 AA59126/066I02
1102-14M-08815Z
1102-14M-08815Z
1102-14M-08815Z
0.359" - Press Fit 1/16 0.136 PTFE Green M55155/075D01 AA59126/075D01
1110-21M-09513Z
1110-21M-09513Z
1110-21M-09513Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Orange M55155/033C02 AA59126/033C02
1125-45M-08816Z
1125-45M-08816Z
1125-45M-08816Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Blue M55155/096D02 AA59126/096D02
1127-03M-09514Z
1127-03M-09514Z
1127-03M-09514Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Yellow M55155/194C03 AA59126/194C03
1127-68M-0512Z
1127-68M-0512Z
1127-68M-0512Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182B01 AA59126/182B01

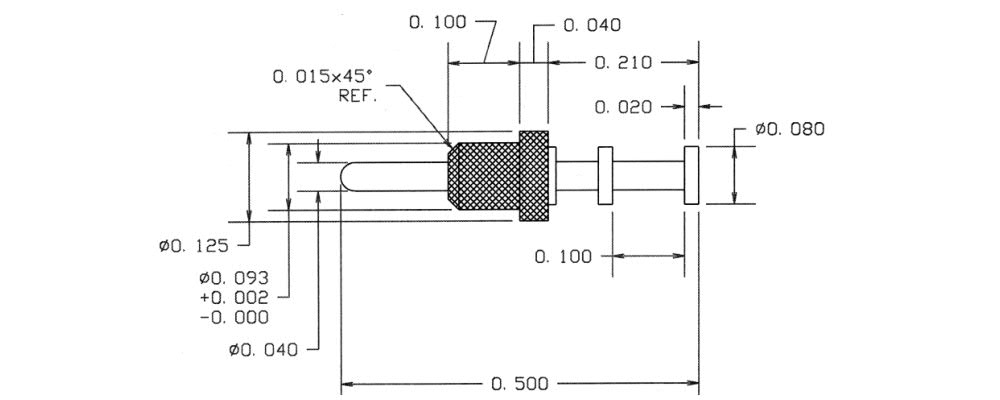

1133-03M-09515Z
1133-03M-09515Z
1133-03M-09515Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Green M55155/045C03 AA59126/045C03
1114-04M-08818Z
1114-04M-08818Z
1114-04M-08818Z
0.225" - Press Fit 1/32 0.086 PTFE Gray M55155/058D01 AA59126/058D01
1114R-23M-09516Z
1114R-23M-09516Z
1114R-23M-09516Z
0.367" - Press Fit 1/16 0.136 PTFE Blue M55155/066C02 AA59126/066C02
1102-14M-08816
1102-14M-08816
1102-14M-08816
0.359" - Press Fit 1/16 0.136 PTFE Blue M55155/076J01 AA59126/076J01
1110-21M-09514
1110-21M-09514
1110-21M-09514
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Yellow M55155/034I02 AA59126/034I02
1125-45M-08817
1125-45M-08817
1125-45M-08817
0.890" - 6-32 Nut 1/8 0.144 PTFE Violet M55155/097J02 AA59126/097J02
1127-03M-09515
1127-03M-09515
1127-03M-09515
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/195I03 AA59126/195I03
