Military
Insulated
Terminals

Filter
1110-05M-09510
1110-05M-09510
1110-05M-09510
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Black M55155/030I04 AA59126/030I04

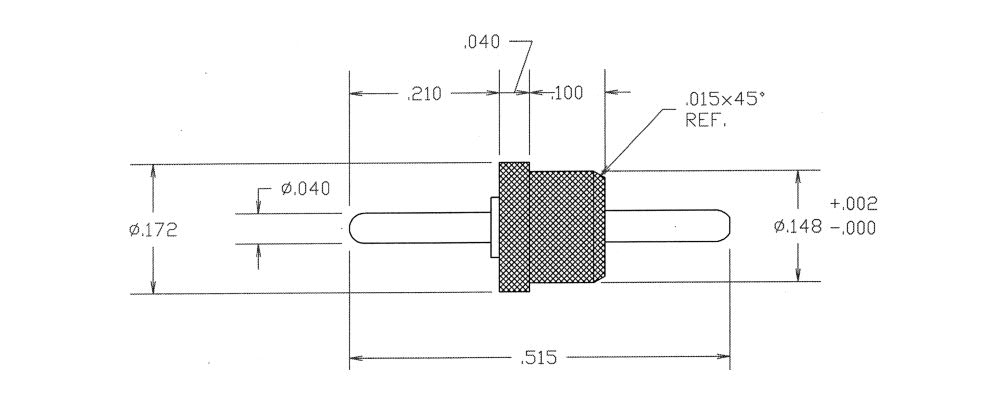

1110-21M-08812
1110-21M-08812
1110-21M-08812
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032J02 AA59126/032J02
1110-05M-09511
1110-05M-09511
1110-05M-09511
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031I04 AA59126/031I04
1110-21M-08813
1110-21M-08813
1110-21M-08813
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Orange M55155/033J02 AA59126/033J02
1110-05M-09512
1110-05M-09512
1110-05M-09512
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032I04 AA59126/032I04
1110-21M-08814
1110-21M-08814
1110-21M-08814
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Yellow M55155/034J02 AA59126/034J02
1110-21M-08816
1110-21M-08816
1110-21M-08816
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036J02 AA59126/036J02
1110-05M-09518
1110-05M-09518
1110-05M-09518
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Gray M55155/038I04 AA59126/038I04
1110-21M-08817
1110-21M-08817
1110-21M-08817
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037J02 AA59126/037J02
1110-21M-08819
1110-21M-08819
1110-21M-08819
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039J02 AA59126/039J02
1110-40M-09519
1110-40M-09519
1110-40M-09519
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE White M55155/039I03 AA59126/039I03
1110-75M-0515
1110-75M-0515
1110-75M-0515
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035H05 AA59126/035H05
1110-40M-08818
1110-40M-08818
1110-40M-08818
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Gray M55155/038J03 AA59126/038J03
1169-38M-09512Z
1169-38M-09512Z
1169-38M-09512Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Red M55155/092C05 AA59126/092C05

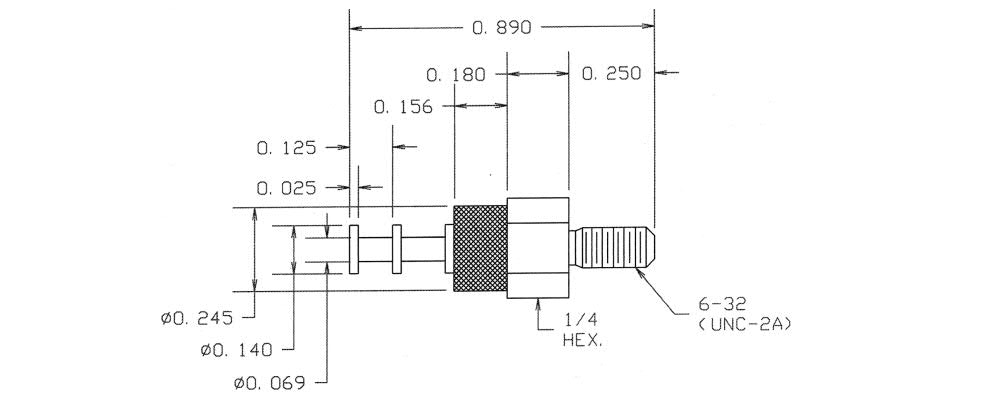

1125-45M-0515
1125-45M-0515
1125-45M-0515
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095H02 AA59126/095H02
1169-38M-09513Z
1169-38M-09513Z
1169-38M-09513Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Orange M55155/093C05 AA59126/093C05
1169-36M-0516
1169-36M-0516
1169-36M-0516
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Blue M55155/096H03 AA59126/096H03
1169-38M-09514Z
1169-38M-09514Z
1169-38M-09514Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Yellow M55155/094C05 AA59126/094C05
1169-38M-09519Z
1169-38M-09519Z
1169-38M-09519Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE White M55155/099C05 AA59126/099C05
1169-36M-0515
1169-36M-0515
1169-36M-0515
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Green M55155/095H03 AA59126/095H03

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
