Military
Insulated
Terminals

Filter

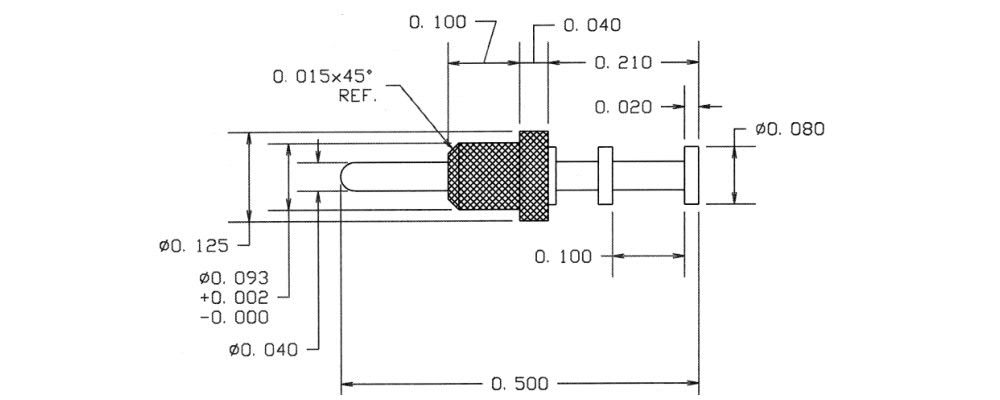

1133-03M-0510
1133-03M-0510
1133-03M-0510
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Black M55155/040H03 AA59126/040H03
1133-02M-08812
1133-02M-08812
1133-02M-08812
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042J02 AA59126/042J02
1133-01M-08815
1133-01M-08815
1133-01M-08815
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Green M55155/045J01 AA59126/045J01
1133-01M-08814
1133-01M-08814
1133-01M-08814
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Yellow M55155/044J01 AA59126/044J01
1133-01M-08813
1133-01M-08813
1133-01M-08813
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Orange M55155/043J01 AA59126/043J01
1133-01M-08812
1133-01M-08812
1133-01M-08812
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Red M55155/042J01 AA59126/042J01
1133-02M-08814
1133-02M-08814
1133-02M-08814
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044J02 AA59126/044J02
1133-02M-08815
1133-02M-08815
1133-02M-08815
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Green M55155/045J02 AA59126/045J02
1133-01M-08810
1133-01M-08810
1133-01M-08810
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Black M55155/040J01 AA59126/040J01
1133-02M-08817
1133-02M-08817
1133-02M-08817
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Violet M55155/047J02 AA59126/047J02
1110-75M-0516
1110-75M-0516
1110-75M-0516
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036H05 AA59126/036H05
1110-16M-08811
1110-16M-08811
1110-16M-08811
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031J01 AA59126/031J01
1110-40M-08811
1110-40M-08811
1110-40M-08811
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Brown M55155/031J03 AA59126/031J03
1110-75M-09517
1110-75M-09517
1110-75M-09517
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037I05 AA59126/037I05
1110-21M-09519
1110-21M-09519
1110-21M-09519
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039I02 AA59126/039I02
1110-21M-09518
1110-21M-09518
1110-21M-09518
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038I02 AA59126/038I02
1110-21M-09517
1110-21M-09517
1110-21M-09517
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037I02 AA59126/037I02
1102-03M-09512
1102-03M-09512
1102-03M-09512
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/072I03 AA59126/072I03
1102-03M-08815
1102-03M-08815
1102-03M-08815
0.350" - Press Fit 1/16 0.086 PTFE Green M55155/075J03 AA59126/075J03
1102-31M-08819
1102-31M-08819
1102-31M-08819
0.431" - Press Fit 1/8 0.152 PTFE White M55155/079J02 AA59126/079J02
