Military
Insulated
Terminals

Filter

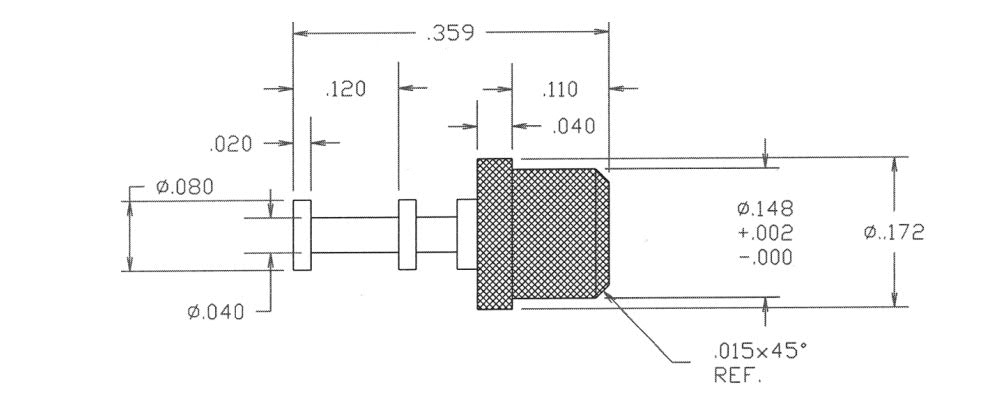

1102-14M-0517Z
1102-14M-0517Z
1102-14M-0517Z
0.359" - Press Fit 1/16 0.136 PTFE Violet M55155/077B01 AA59126/077B01
1110-21M-08815Z
1110-21M-08815Z
1110-21M-08815Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035D02 AA59126/035D02
1125-45M-0518Z
1125-45M-0518Z
1125-45M-0518Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Gray M55155/098B02 AA59126/098B02
1127-03M-08816Z
1127-03M-08816Z
1127-03M-08816Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/196D03 AA59126/196D03

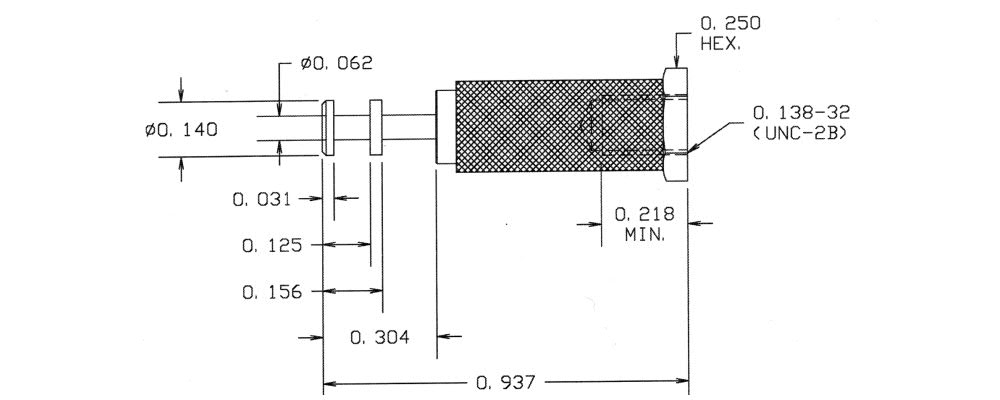

1127-07M-09514Z
1127-07M-09514Z
1127-07M-09514Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Yellow M55155/204C04 AA59126/204C04

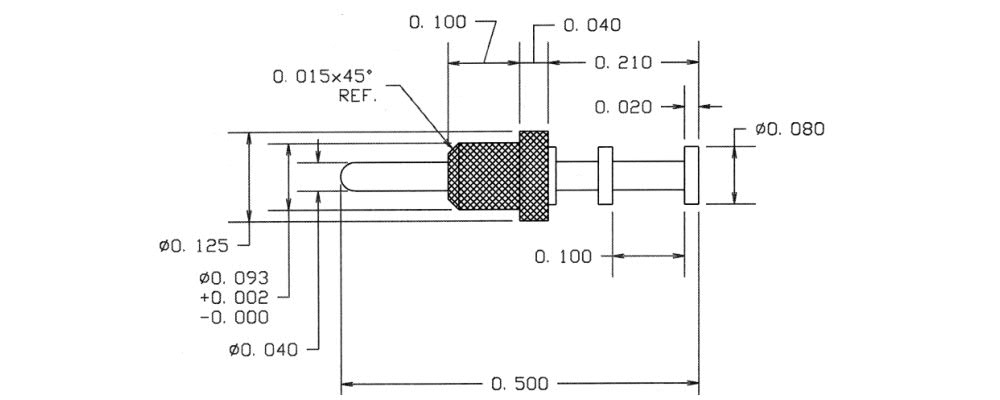

1133-03M-08817Z
1133-03M-08817Z
1133-03M-08817Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Violet M55155/047D03 AA59126/047D03
1114-04M-08810Z
1114-04M-08810Z
1114-04M-08810Z
0.225" - Press Fit 1/32 0.086 PTFE Black M55155/050D01 AA59126/050D01
1114R-23M-08818Z
1114R-23M-08818Z
1114R-23M-08818Z
0.367" - Press Fit 1/16 0.136 PTFE Gray M55155/068D02 AA59126/068D02
1102-14M-0518
1102-14M-0518
1102-14M-0518
0.359" - Press Fit 1/16 0.136 PTFE Gray M55155/078H01 AA59126/078H01
1110-21M-08816
1110-21M-08816
1110-21M-08816
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036J02 AA59126/036J02
1125-45M-0519
1125-45M-0519
1125-45M-0519
0.890" - 6-32 Nut 1/8 0.144 PTFE White M55155/099H02 AA59126/099H02
1127-03M-08817
1127-03M-08817
1127-03M-08817
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/197J03 AA59126/197J03
1127-07M-09515
1127-07M-09515
1127-07M-09515
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205I04 AA59126/205I04
1133-03M-08818
1133-03M-08818
1133-03M-08818
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048J03 AA59126/048J03
1114-04M-08811
1114-04M-08811
1114-04M-08811
0.225" - Press Fit 1/32 0.086 PTFE Brown M55155/051J01 AA59126/051J01
1114R-23M-08819
1114R-23M-08819
1114R-23M-08819
0.367" - Press Fit 1/16 0.136 PTFE White M55155/069J02 AA59126/069J02
1102-14M-0518Z
1102-14M-0518Z
1102-14M-0518Z
0.359" - Press Fit 1/16 0.136 PTFE Gray M55155/078B01 AA59126/078B01
1110-21M-08816Z
1110-21M-08816Z
1110-21M-08816Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036D02 AA59126/036D02
1125-45M-0519Z
1125-45M-0519Z
1125-45M-0519Z
0.890" - 6-32 Nut 1/8 0.144 PTFE White M55155/099B02 AA59126/099B02
1127-03M-08817Z
1127-03M-08817Z
1127-03M-08817Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/197D03 AA59126/197D03
