Military
Insulated
Terminals

Filter

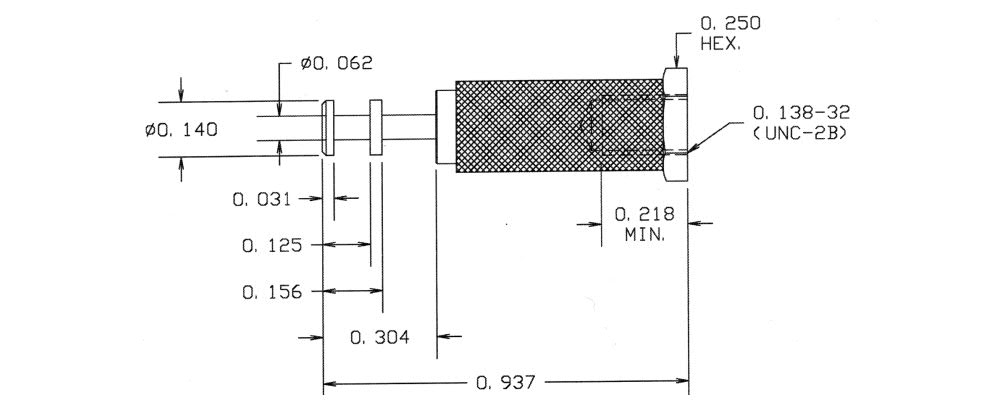

1127-07M-09515Z
1127-07M-09515Z
1127-07M-09515Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205C04 AA59126/205C04

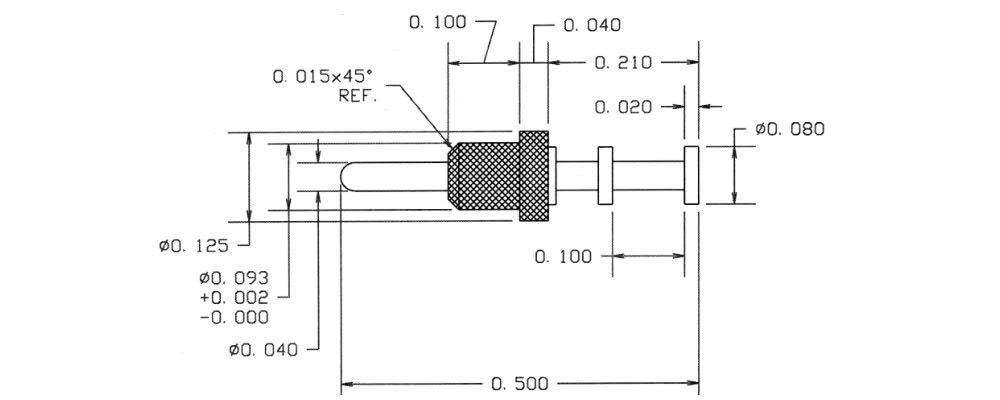

1133-03M-08818Z
1133-03M-08818Z
1133-03M-08818Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Gray M55155/048D03 AA59126/048D03

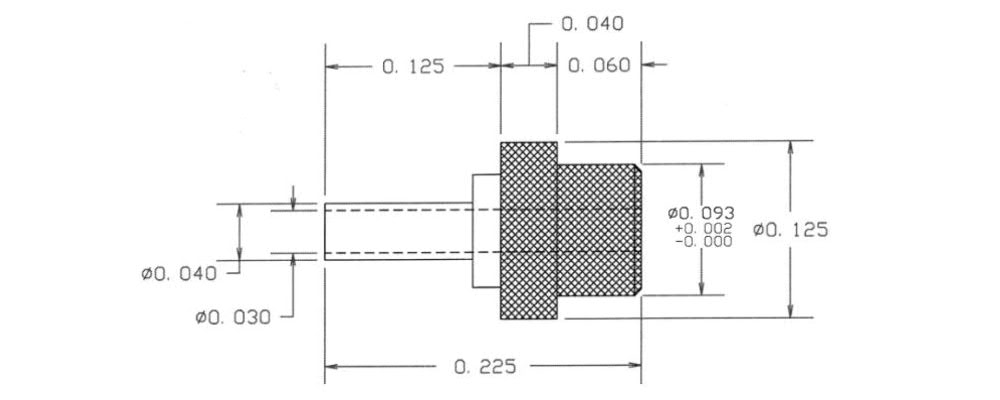

1114-04M-08811Z
1114-04M-08811Z
1114-04M-08811Z
0.225" - Press Fit 1/32 0.086 PTFE Brown M55155/051D01 AA59126/051D01

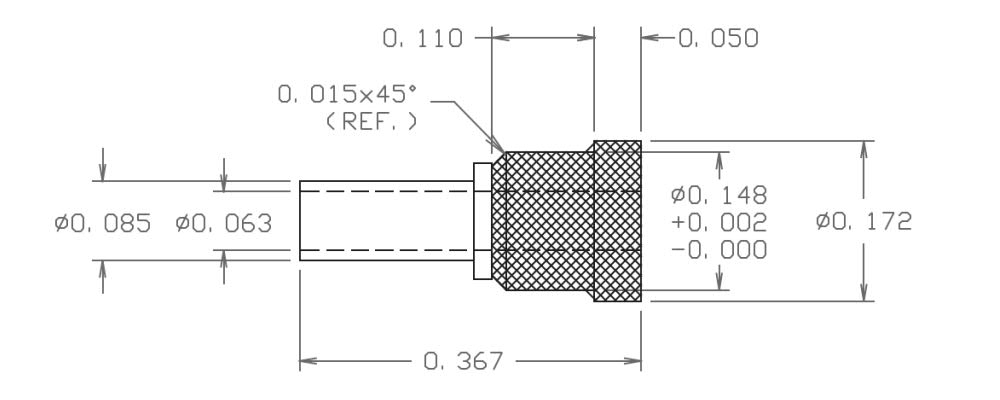

1114R-23M-08819Z
1114R-23M-08819Z
1114R-23M-08819Z
0.367" - Press Fit 1/16 0.136 PTFE White M55155/069D02 AA59126/069D02

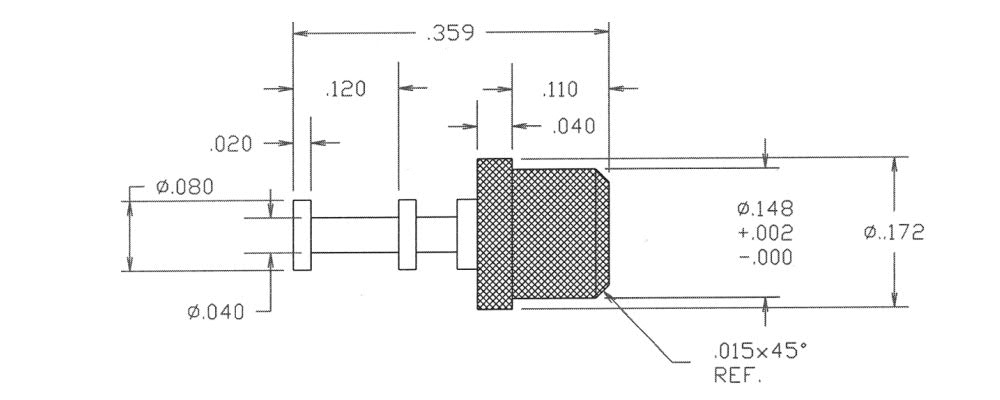

1102-14M-0519
1102-14M-0519
1102-14M-0519
0.359" - Press Fit 1/16 0.136 PTFE White M55155/079H01 AA59126/079H01

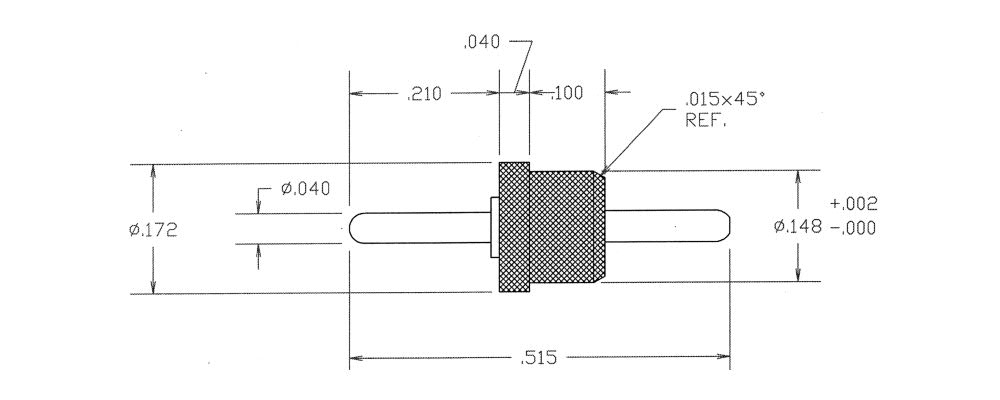

1110-21M-08817
1110-21M-08817
1110-21M-08817
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037J02 AA59126/037J02

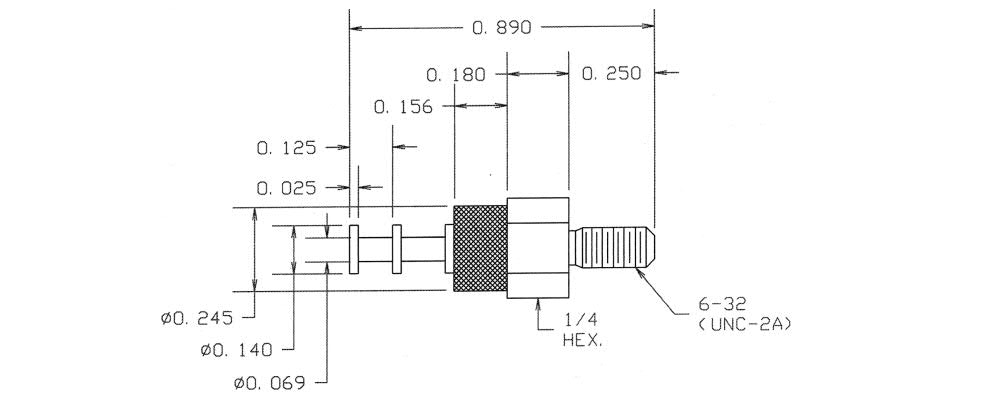

1125-45M-08810
1125-45M-08810
1125-45M-08810
0.890" - 6-32 Nut 1/8 0.144 PTFE Black M55155/090J02 AA59126/090J02

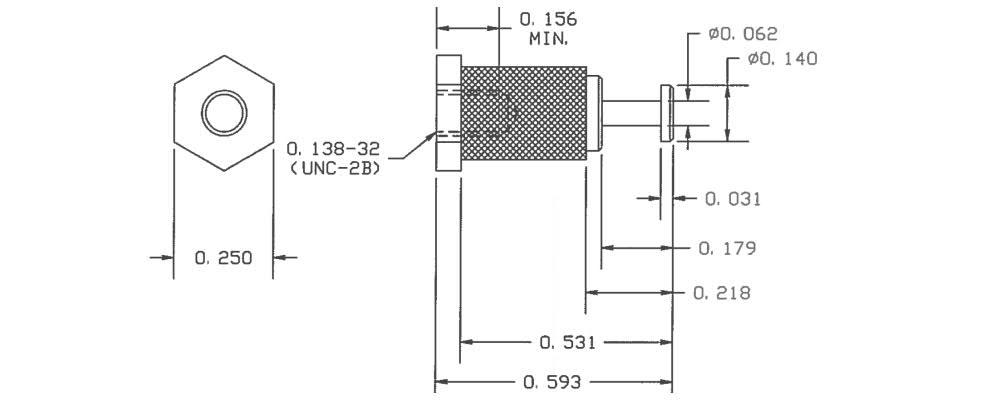

1127-03M-08818
1127-03M-08818
1127-03M-08818
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/198J03 AA59126/198J03
1127-07M-09516
1127-07M-09516
1127-07M-09516
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/206I04 AA59126/206I04
1133-03M-08819
1133-03M-08819
1133-03M-08819
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE White M55155/049J03 AA59126/049J03
1114-04M-08812
1114-04M-08812
1114-04M-08812
0.225" - Press Fit 1/32 0.086 PTFE Red M55155/052J01 AA59126/052J01
1114R-23M-09510
1114R-23M-09510
1114R-23M-09510
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/060I02 AA59126/060I02
1102-14M-0519Z
1102-14M-0519Z
1102-14M-0519Z
0.359" - Press Fit 1/16 0.136 PTFE White M55155/079B01 AA59126/079B01
1110-21M-08817Z
1110-21M-08817Z
1110-21M-08817Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037D02 AA59126/037D02
1125-45M-08810Z
1125-45M-08810Z
1125-45M-08810Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Black M55155/090D02 AA59126/090D02
1127-03M-08818Z
1127-03M-08818Z
1127-03M-08818Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/198D03 AA59126/198D03
1127-07M-09516Z
1127-07M-09516Z
1127-07M-09516Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/206C04 AA59126/206C04
1133-03M-08819Z
1133-03M-08819Z
1133-03M-08819Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE White M55155/049D03 AA59126/049D03
1114-04M-08812Z
1114-04M-08812Z
1114-04M-08812Z
0.225" - Press Fit 1/32 0.086 PTFE Red M55155/052D01 AA59126/052D01
1114R-23M-09510Z
1114R-23M-09510Z
1114R-23M-09510Z
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/060C02 AA59126/060C02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
