Military
Insulated
Terminals

Filter

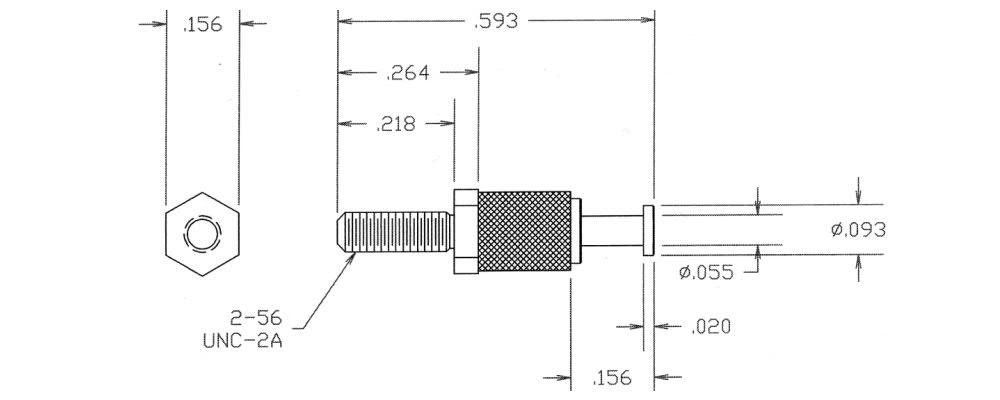

1127-68M-0510Z
1127-68M-0510Z
1127-68M-0510Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180B01 AA59126/180B01

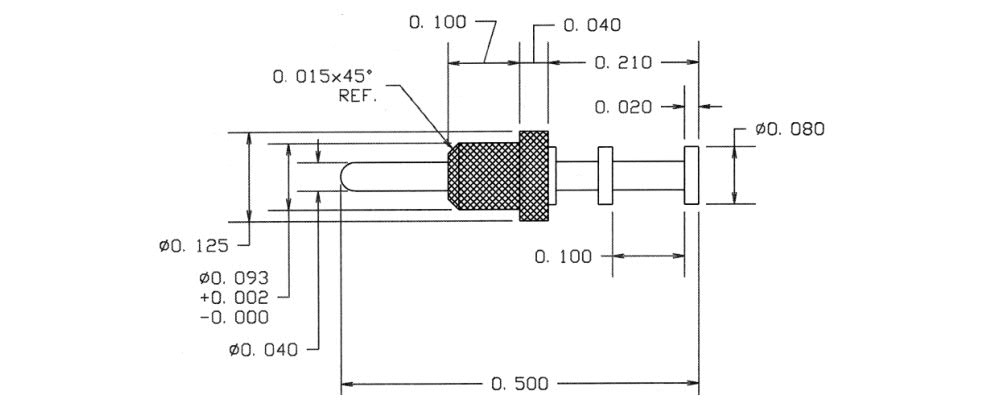

1133-03M-09513Z
1133-03M-09513Z
1133-03M-09513Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Orange M55155/043C03 AA59126/043C03
1114-04M-08816Z
1114-04M-08816Z
1114-04M-08816Z
0.225" - Press Fit 1/32 0.086 PTFE Blue M55155/056D01 AA59126/056D01
1114R-23M-09514Z
1114R-23M-09514Z
1114R-23M-09514Z
0.367" - Press Fit 1/16 0.136 PTFE Yellow M55155/064C02 AA59126/064C02

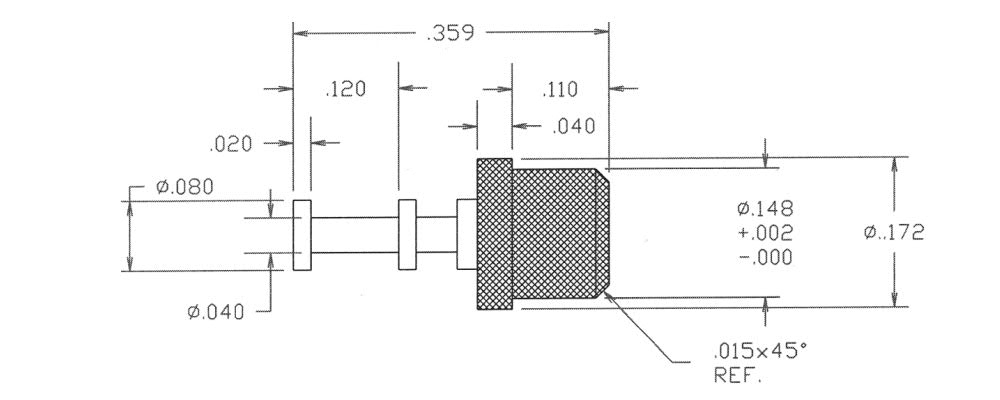

1102-14M-08814
1102-14M-08814
1102-14M-08814
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074J01 AA59126/074J01
1110-21M-09512
1110-21M-09512
1110-21M-09512
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032I02 AA59126/032I02
1125-45M-08815
1125-45M-08815
1125-45M-08815
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095J02 AA59126/095J02
1127-03M-09513
1127-03M-09513
1127-03M-09513
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/193I03 AA59126/193I03
1127-68M-0511
1127-68M-0511
1127-68M-0511
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Brown M55155/181H01 AA59126/181H01
1133-03M-09514
1133-03M-09514
1133-03M-09514
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044I03 AA59126/044I03
1114-04M-08817
1114-04M-08817
1114-04M-08817
0.225" - Press Fit 1/32 0.086 PTFE Violet M55155/057J01 AA59126/057J01
1114R-23M-09515
1114R-23M-09515
1114R-23M-09515
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/065I02 AA59126/065I02
1102-14M-08814Z
1102-14M-08814Z
1102-14M-08814Z
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074D01 AA59126/074D01
1110-21M-09512Z
1110-21M-09512Z
1110-21M-09512Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032C02 AA59126/032C02
1125-45M-08815Z
1125-45M-08815Z
1125-45M-08815Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095D02 AA59126/095D02
1127-03M-09513Z
1127-03M-09513Z
1127-03M-09513Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/193C03 AA59126/193C03
1127-68M-0511Z
1127-68M-0511Z
1127-68M-0511Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Brown M55155/181B01 AA59126/181B01
1133-03M-09514Z
1133-03M-09514Z
1133-03M-09514Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044C03 AA59126/044C03
1114-04M-08817Z
1114-04M-08817Z
1114-04M-08817Z
0.225" - Press Fit 1/32 0.086 PTFE Violet M55155/057D01 AA59126/057D01
1114R-23M-09515Z
1114R-23M-09515Z
1114R-23M-09515Z
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/065C02 AA59126/065C02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
