Military
Insulated
Terminals

Filter

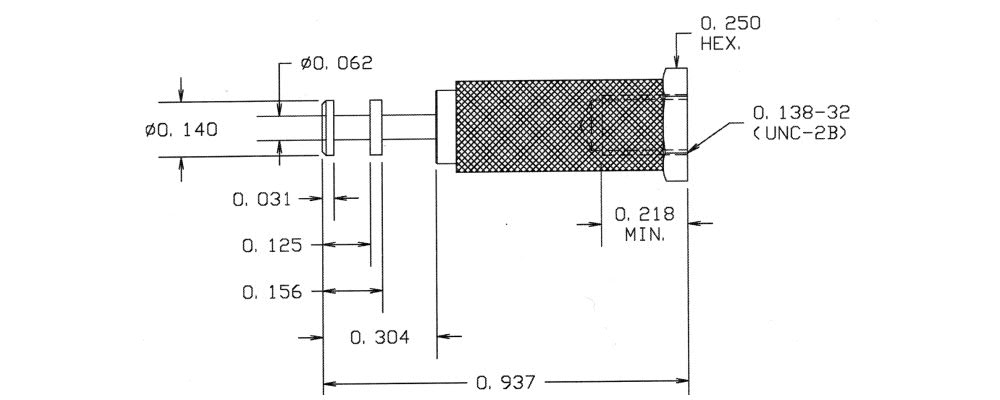

1127-07M-09510Z
1127-07M-09510Z
1127-07M-09510Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Black M55155/200C04 AA59126/200C04

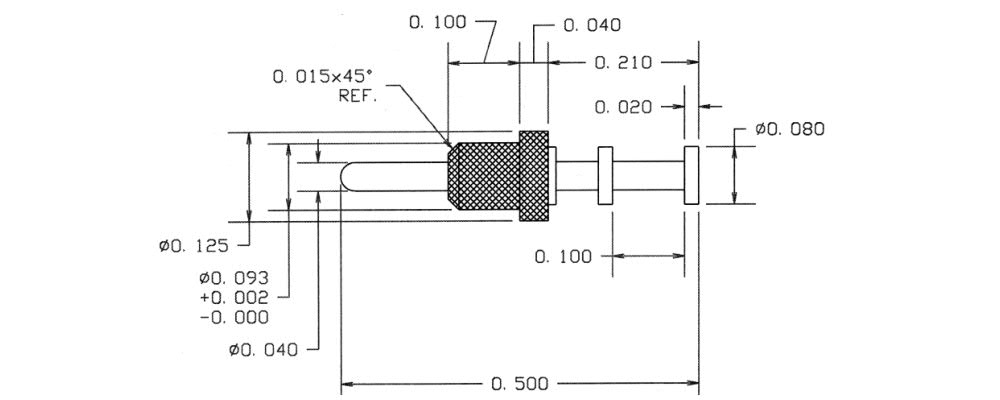

1133-03M-08813Z
1133-03M-08813Z
1133-03M-08813Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Orange M55155/043D03 AA59126/043D03
1114-04M-0516Z
1114-04M-0516Z
1114-04M-0516Z
0.225" - Press Fit 1/32 0.086 PTFE Blue M55155/056B01 AA59126/056B01
1114R-23M-08814Z
1114R-23M-08814Z
1114R-23M-08814Z
0.367" - Press Fit 1/16 0.136 PTFE Yellow M55155/064D02 AA59126/064D02

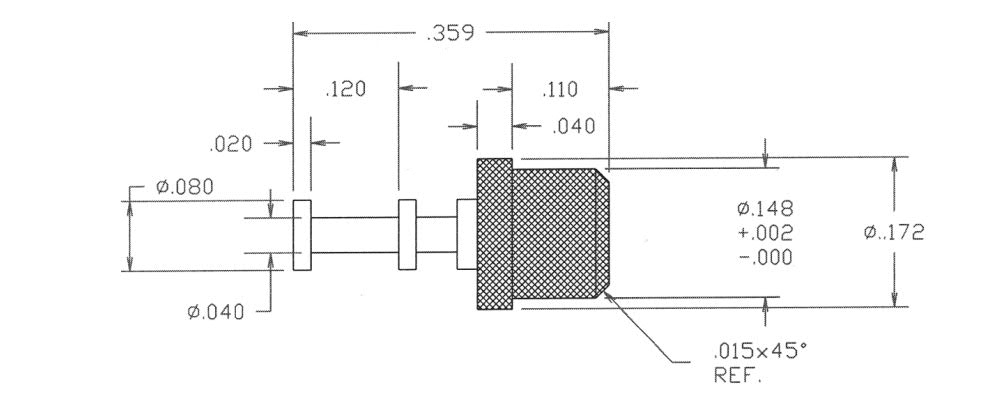

1102-14M-0514
1102-14M-0514
1102-14M-0514
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074H01 AA59126/074H01
1110-21M-08812
1110-21M-08812
1110-21M-08812
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032J02 AA59126/032J02
1125-45M-0515
1125-45M-0515
1125-45M-0515
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095H02 AA59126/095H02
1127-03M-08813
1127-03M-08813
1127-03M-08813
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/193J03 AA59126/193J03
1127-07M-09511
1127-07M-09511
1127-07M-09511
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/201I04 AA59126/201I04
1133-03M-08814
1133-03M-08814
1133-03M-08814
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044J03 AA59126/044J03
1114-04M-0517
1114-04M-0517
1114-04M-0517
0.225" - Press Fit 1/32 0.086 PTFE Violet M55155/057H01 AA59126/057H01
1114R-23M-08815
1114R-23M-08815
1114R-23M-08815
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/065J02 AA59126/065J02
1102-14M-0514Z
1102-14M-0514Z
1102-14M-0514Z
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074B01 AA59126/074B01
1110-21M-08812Z
1110-21M-08812Z
1110-21M-08812Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032D02 AA59126/032D02
1125-45M-0515Z
1125-45M-0515Z
1125-45M-0515Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Green M55155/095B02 AA59126/095B02
1127-03M-08813Z
1127-03M-08813Z
1127-03M-08813Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/193D03 AA59126/193D03
1127-07M-09511Z
1127-07M-09511Z
1127-07M-09511Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/201C04 AA59126/201C04
1133-03M-08814Z
1133-03M-08814Z
1133-03M-08814Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Yellow M55155/044D03 AA59126/044D03
1114-04M-0517Z
1114-04M-0517Z
1114-04M-0517Z
0.225" - Press Fit 1/32 0.086 PTFE Violet M55155/057B01 AA59126/057B01
1114R-23M-08815Z
1114R-23M-08815Z
1114R-23M-08815Z
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/065D02 AA59126/065D02
