Commercial
Non-Insulated
Terminals

Filter
10-302-1-088
10-302-1-088
10-302-1-088
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Bright Tin-Lead NO
10-310-3-088
10-310-3-088
10-310-3-088
0.338" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
10-320-2-04
10-320-2-04
10-320-2-04
0.295" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES
10-337-4-01
10-337-4-01
10-337-4-01
0.594" - - Swage Mount 0.172" 1/8 0.125 Brass Silver YES

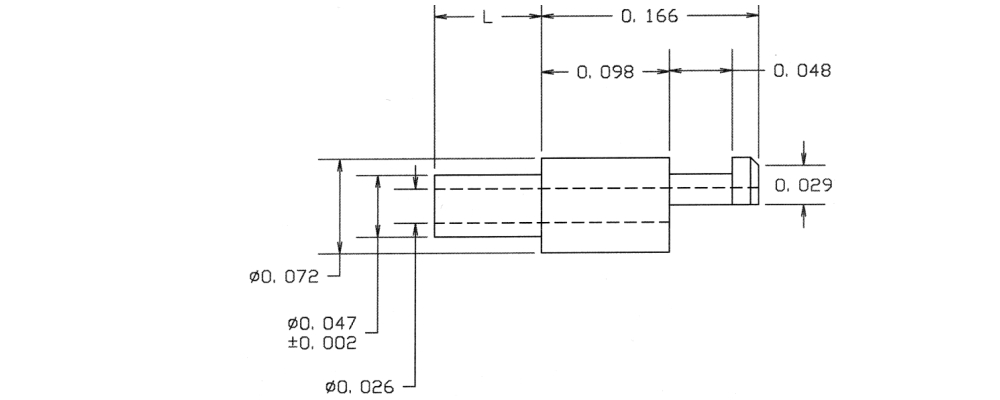

10-415-1-044
10-415-1-044
10-415-1-044
0.217" - - Swage Mount 0.051" 1/32 0.052 Brass Bright Tin YES
10-422-5-05
10-422-5-05
10-422-5-05
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Electro Solder NO
10-441-5-05
10-441-5-05
10-441-5-05
0.539" - - Swage Mount 0.195" 5/32 0.1405 Brass Electro Solder NO
10-458-3-035
10-458-3-035
10-458-3-035
0.313" - - Swage Mount 0.125" 3/32 0.076 Brass Gold YES
10-468-3-04
10-468-3-04
10-468-3-04
0.374" - - Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES
10-501-4-088
10-501-4-088
10-501-4-088
0.331" - Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO
10-507-4-088
10-507-4-088
10-507-4-088
0.641" - Turret/Turret Swage Mount 0.172" 1/8 0.185 Brass Bright Tin-Lead NO
10-513-3-088
10-513-3-088
10-513-3-088
0.454" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.129 Brass Bright Tin-Lead NO
10-522-5-088
10-522-5-088
10-522-5-088
0.664" - Turret/Turret Swage Mount 0.195" 5/32 0.206 Brass Bright Tin-Lead NO
10-542-4-088
10-542-4-088
10-542-4-088
0.519" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead NO
10-559-2-088
10-559-2-088
10-559-2-088
0.379" - TURRET/DOUBLE TURRET Swage Mount 0.084" 1/16 0.076 Brass Bright Tin-Lead NO
10-604-6-035
10-604-6-035
10-604-6-035
0.921" - - Swage Mount 0.234" 3/16 0.266 Brass Gold YES

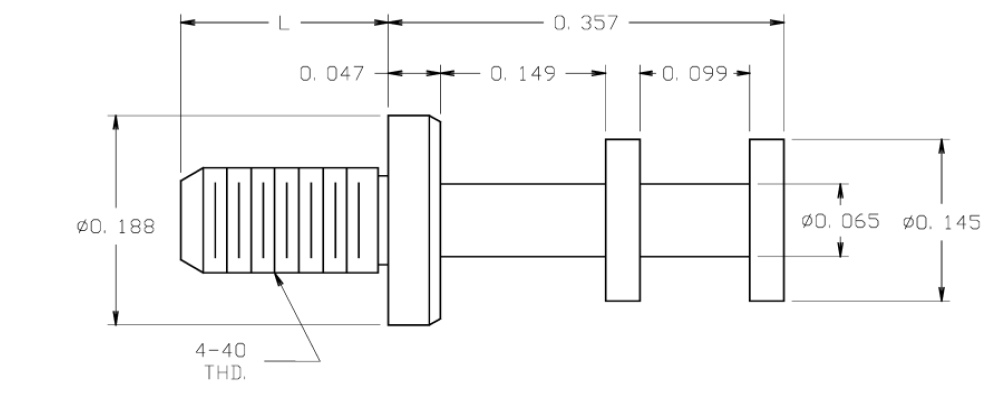

10-706-4-035
10-706-4-035
10-706-4-035
0.482" - - 4-40 - - 4-40 THREAD Brass Gold YES

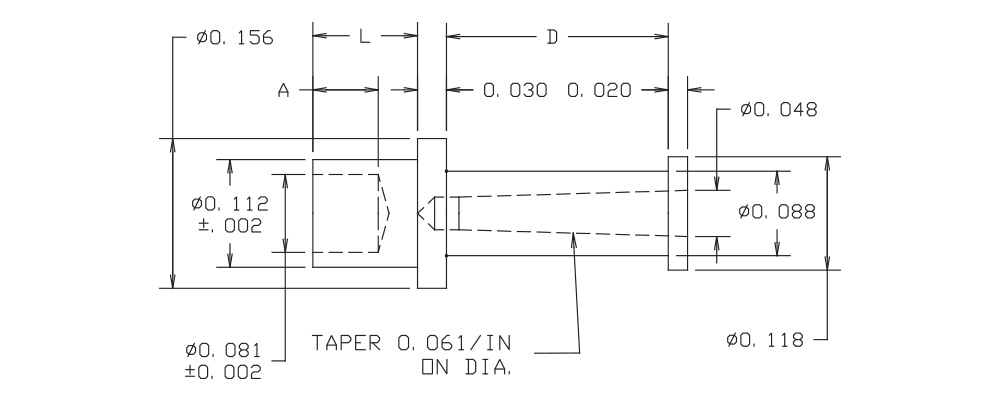

10-8011-6-05
10-8011-6-05
10-8011-6-05
0.484" - - Swage Mount 0.234" 3/16 0.116 Brass Electro Solder NO

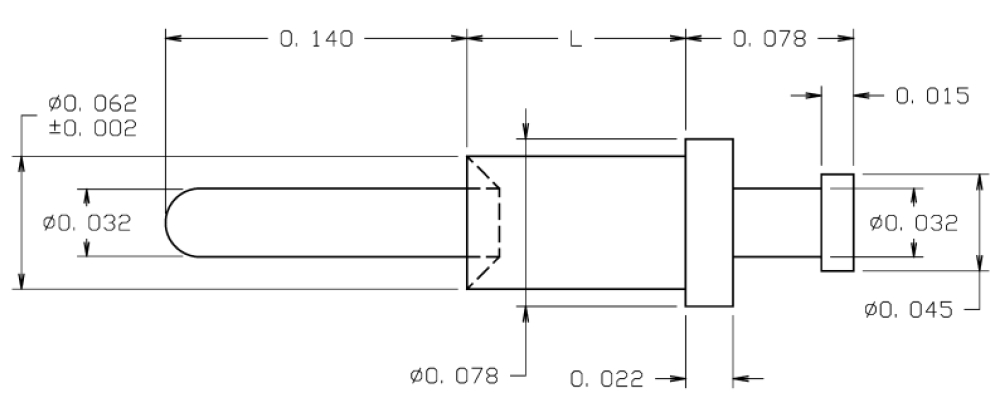

10-802-3-035
10-802-3-035
10-802-3-035
0.333" 0.032 TURRET/PIN Swage Mount 0.115" 3/32 0.067 Brass Gold YES
10-806-8-03
10-806-8-03
10-806-8-03
0.724" - - Swage Mount 0.297" 1/4 0.094 Brass Gold YES
