Commercial
Non-Insulated
Terminals

Filter
09-8076-2-04
09-8076-2-04
09-8076-2-04
0.782" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
09-8136-4-01
09-8136-4-01
09-8136-4-01
0.510" 0.040 TURRET/PIN Swage Mount 0.156" 1/8 0.125 Brass Silver YES
09-8170-2-044
09-8170-2-044
09-8170-2-044
0.415" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Bright Tin YES
09-8296-2-044
09-8296-2-044
09-8296-2-044
0.382" 0.0475 - Swage Mount 0.082" 1/16 0.052 Brass Bright Tin YES
09-8480-1-01
09-8480-1-01
09-8480-1-01
0.201" 0.025 - Swage Mount 0.051" 1/32 0.0465 Brass Silver YES
09-8656-1-01
09-8656-1-01
09-8656-1-01
0.409" - - Swage Mount 0.078" 1/32 0.094 Brass Silver YES

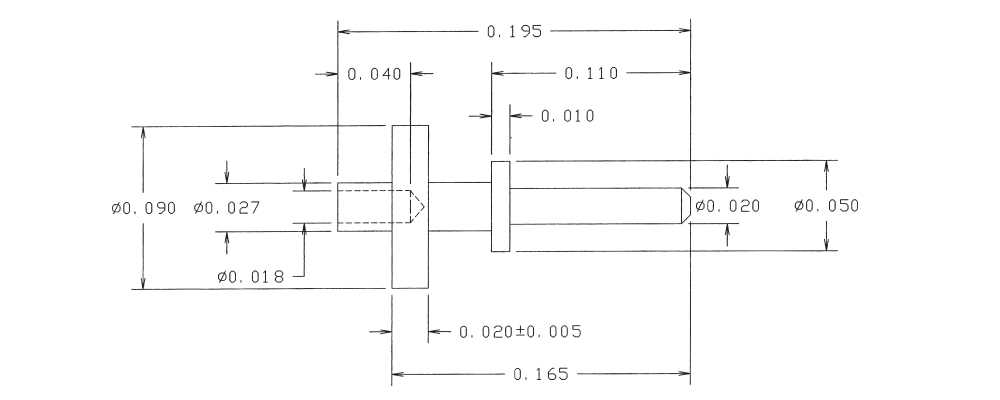

09-8768-11-044
09-8768-11-044
09-8768-11-044
0.195" 0.020 - Swage Mount 0.030" 1/64 0.028 Brass Bright Tin YES
09-8849-1-05
09-8849-1-05
09-8849-1-05
0.815" 0.042 - Solder - - 0.044 Brass Electro Solder NO
10-103-1-044
10-103-1-044
10-103-1-044
0.312" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
10-109-3-01
10-109-3-01
10-109-3-01
0.284" - - Swage Mount 0.125" 3/32 0.094 Brass Silver YES
10-119-4-044
10-119-4-044
10-119-4-044
0.393" - - Swage Mount 0.165" 1/8 0.082 Brass Bright Tin YES
10-201-1-088
10-201-1-088
10-201-1-088
0.237" - - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO
10-209-3-088
10-209-3-088
10-209-3-088
0.360" - - Swage Mount 0.141" 3/32 0.094 Brass Bright Tin-Lead NO
10-216-2-035
10-216-2-035
10-216-2-035
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Gold YES
10-226-1-044
10-226-1-044
10-226-1-044
0.435" - - Swage Mount 0.075" 1/32 0.206 Brass Bright Tin YES
10-240-5-01
10-240-5-01
10-240-5-01
0.555" - - Swage Mount 0.195" 5/32 0.116 Brass Silver YES
10-302-1-05
10-302-1-05
10-302-1-05
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Electro Solder NO
10-310-3-05
10-310-3-05
10-310-3-05
0.338" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
10-320-2-035
10-320-2-035
10-320-2-035
0.295" - - Swage Mount 0.105" 1/16 0.094 Brass Gold YES
10-337-3-088
10-337-3-088
10-337-3-088
0.563" - - Swage Mount 0.141" 3/32 0.125 Brass Bright Tin-Lead NO
