Commercial
Non-Insulated
Terminals

Filter
09-7137-2-04
09-7137-2-04
09-7137-2-04
0.613" 0.0255 - RIVET MOUNT 0.087" 1/16 0.044 Brass Electro-Tin YES

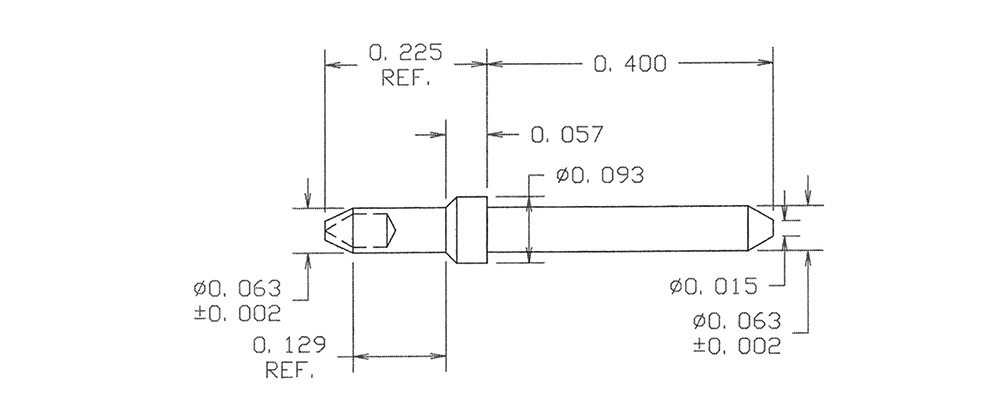

09-7165-2-01
09-7165-2-01
09-7165-2-01
0.594" 0.063 - RIVET MOUNT 0.098" 1/16 0.067 Brass Silver YES

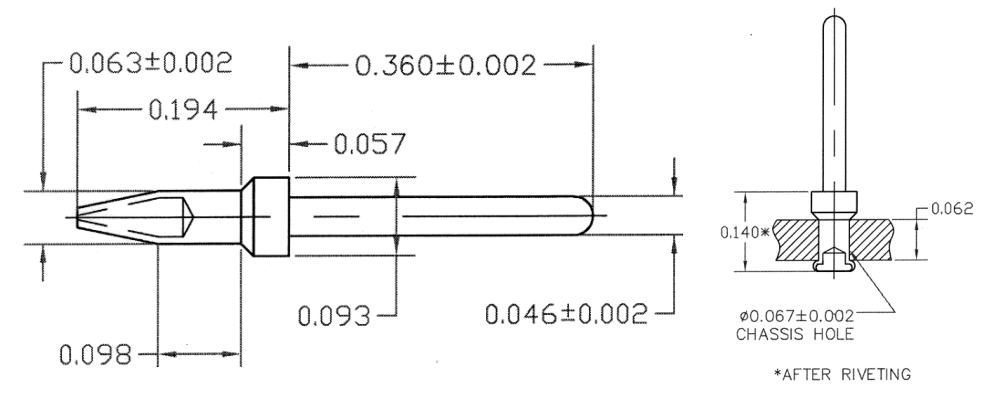

09-7199-2-044
09-7199-2-044
09-7199-2-044
0.554" 0.046 - RIVET MOUNT 0.098" 1/16 0.067 Brass Bright Tin YES
09-8044-2-03
09-8044-2-03
09-8044-2-03
0.402" 0.031 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
09-8076-2-044
09-8076-2-044
09-8076-2-044
0.782" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8136-4-03
09-8136-4-03
09-8136-4-03
0.510" 0.040 TURRET/PIN Swage Mount 0.156" 1/8 0.125 Brass Gold YES
09-8170-2-05
09-8170-2-05
09-8170-2-05
0.415" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Electro Solder NO
09-8296-2-05
09-8296-2-05
09-8296-2-05
0.382" 0.0475 - Swage Mount 0.082" 1/16 0.052 Brass Electro Solder NO

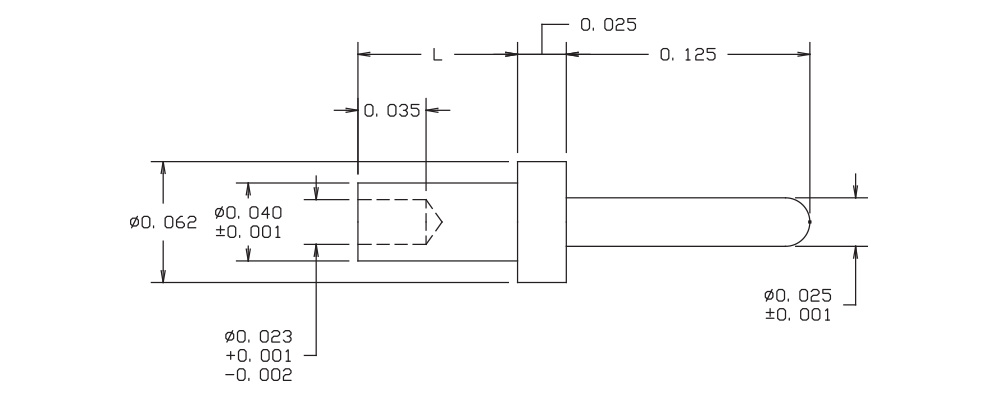

09-8480-1-03
09-8480-1-03
09-8480-1-03
0.201" 0.025 - Swage Mount 0.051" 1/32 0.0465 Brass Gold YES
09-8656-1-03
09-8656-1-03
09-8656-1-03
0.409" - - Swage Mount 0.078" 1/32 0.094 Brass Gold YES

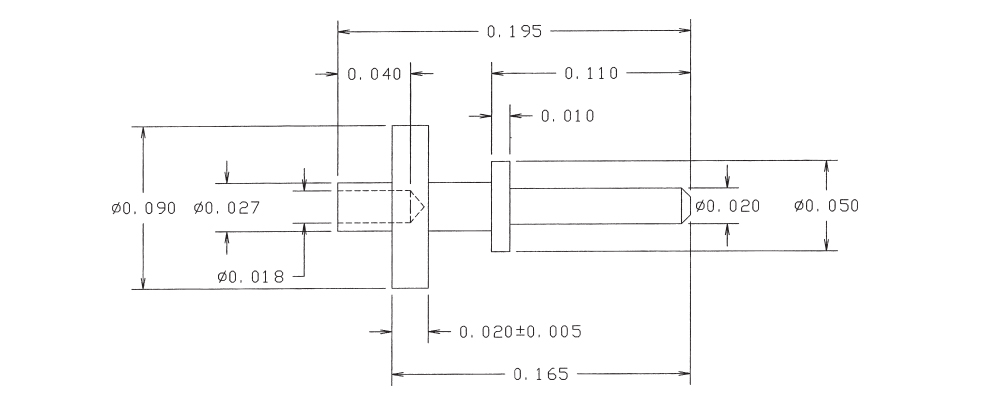

09-8768-11-05
09-8768-11-05
09-8768-11-05
0.195" 0.020 - Swage Mount 0.030" 1/64 0.028 Brass Electro Solder NO
09-8849-1-088
09-8849-1-088
09-8849-1-088
0.815" 0.042 - Solder - - 0.044 Brass Bright Tin-Lead NO
10-103-1-05
10-103-1-05
10-103-1-05
0.312" - - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder NO
10-109-3-03
10-109-3-03
10-109-3-03
0.284" - - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-119-4-05
10-119-4-05
10-119-4-05
0.393" - - Swage Mount 0.165" 1/8 0.082 Brass Electro Solder NO
10-201-2-01
10-201-2-01
10-201-2-01
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Silver YES
10-209-3-095
10-209-3-095
10-209-3-095
0.360" - - Swage Mount 0.141" 3/32 0.094 Brass Hot Solder Dip NO
10-216-2-04
10-216-2-04
10-216-2-04
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES
10-226-1-05
10-226-1-05
10-226-1-05
0.435" - - Swage Mount 0.075" 1/32 0.206 Brass Electro Solder NO
10-240-5-03
10-240-5-03
10-240-5-03
0.555" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES
