Commercial
Non-Insulated
Terminals

Filter

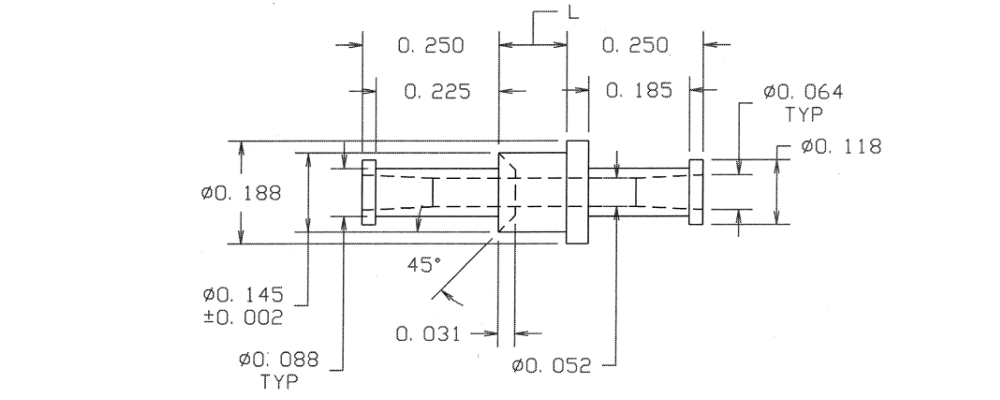

10-812-4-088
10-812-4-088
10-812-4-088
0.656" - Turret/Turret Swage Mount 0.156" 1/8 0.147 Brass Bright Tin-Lead NO
10-823-2-035
10-823-2-035
10-823-2-035
0.564" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.087" 1/16 0.120 Brass Gold YES
10-833-1-03
10-833-1-03
10-833-1-03
0.376" 0.050 - Swage Mount 0.063" 1/32 0.064 Brass Gold YES

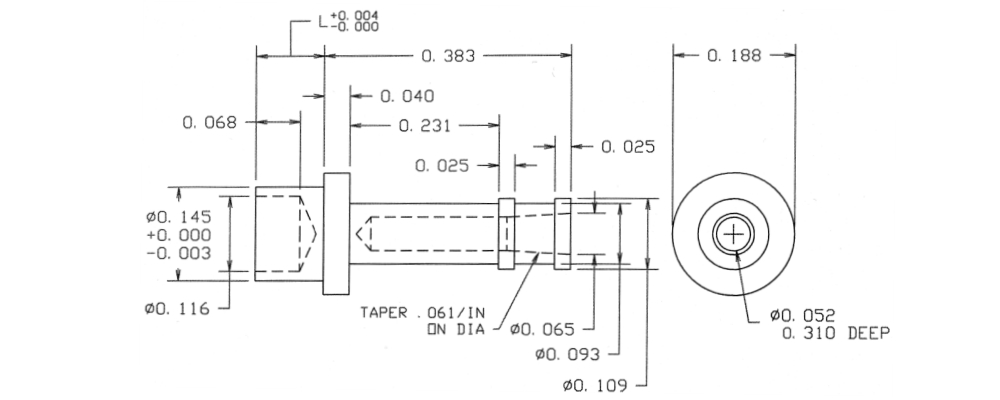

10-840-3-05
10-840-3-05
10-840-3-05
0.518" - - Swage Mount 0.135" 3/32 0.1495 Brass Electro Solder NO
10-863-3-035
10-863-3-035
10-863-3-035
0.438" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-882-5-01
10-882-5-01
10-882-5-01
0.655" - Turret/Turret Swage Mount 0.195" 5/32 0.147 Brass Silver YES
10-902-3-088
10-902-3-088
10-902-3-088
0.313" 0.060 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin-Lead NO
10-917-3-05
10-917-3-05
10-917-3-05
0.283" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO
10-931-3-04
10-931-3-04
10-931-3-04
0.281" - - Swage Mount 0.125" 3/32 0.0635 Brass Electro-Tin YES
10-975-1-035
10-975-1-035
10-975-1-035
1.071" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
14-946-1-088
14-946-1-088
14-946-1-088
0.213" - - Swage Mount 0.062" 1/32 0.063 LEADED Red Brass Bright Tin-Lead NO
10-401-3-088
10-401-3-088
10-401-3-088
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Bright Tin-Lead NO
10-416-11-04
10-416-11-04
10-416-11-04
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Electro-Tin YES

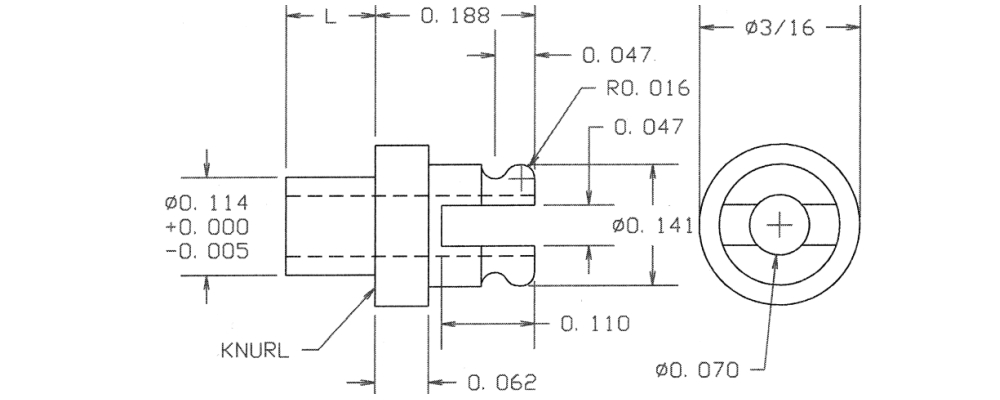

10-450-3-01
10-450-3-01
10-450-3-01
0.323" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES

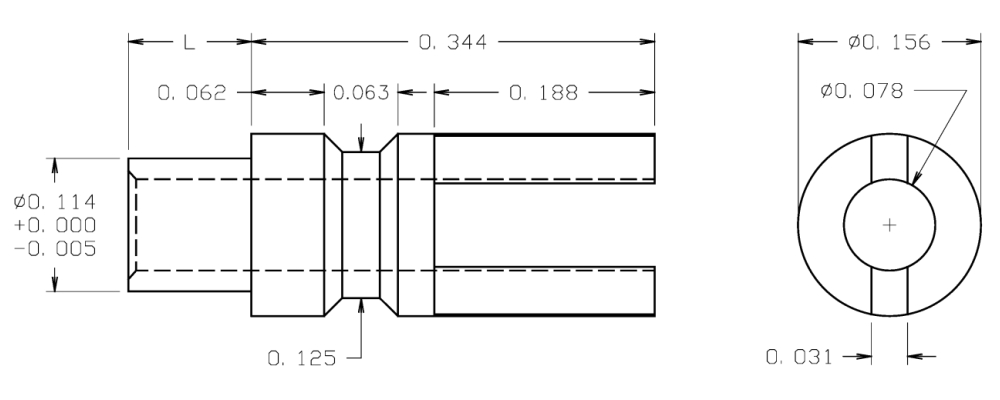

10-472-4-044
10-472-4-044
10-472-4-044
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES

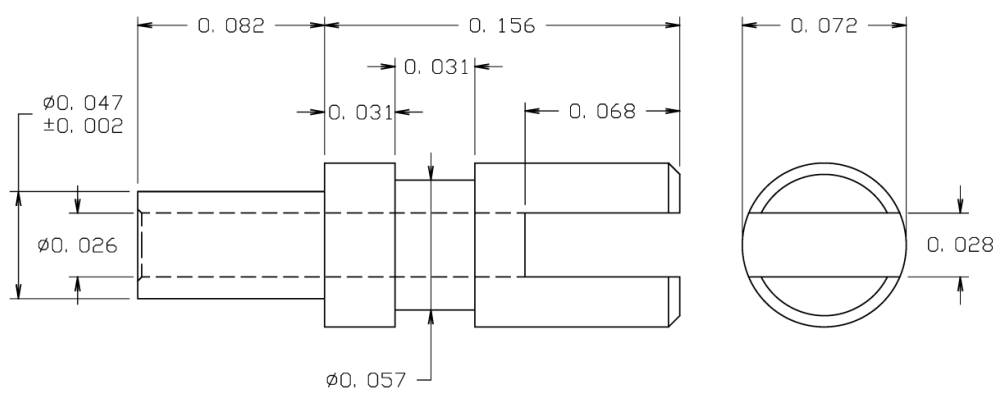

14-414-6-03
14-414-6-03
14-414-6-03
0.364" - - Swage Mount 0.207" 3/16 0.052 LEADED Red Brass Gold YES

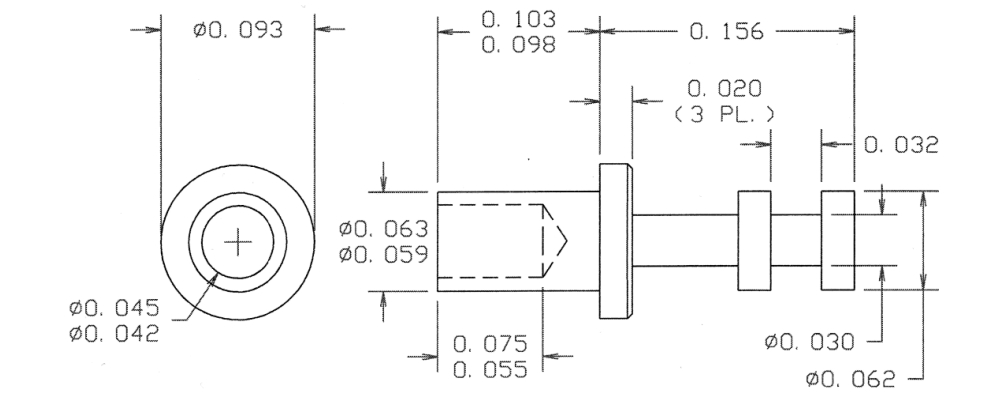

09-0056-2-088
09-0056-2-088
09-0056-2-088
0.259" - - Swage Mount 0.100" 1/16 0.067 Brass Bright Tin-Lead NO
09-0144-2-088
09-0144-2-088
09-0144-2-088
0.588" - - 8-32 - - 8-32 THREAD Brass Bright Tin-Lead NO
09-0182-1-035
09-0182-1-035
09-0182-1-035
0.225" - - Swage Mount 0.100" 1/16 0.052 Brass Gold YES
09-0219-5-04
09-0219-5-04
09-0219-5-04
0.488" - - Swage Mount 0.178" 5/32 0.067 Brass Electro-Tin YES
