Commercial
Non-Insulated
Terminals

Filter
10-209-4-01
10-209-4-01
10-209-4-01
0.391" - - Swage Mount 0.172" 1/8 0.094 Brass Silver YES
10-216-2-044
10-216-2-044
10-216-2-044
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES
10-226-1-088
10-226-1-088
10-226-1-088
0.435" - - Swage Mount 0.075" 1/32 0.206 Brass Bright Tin-Lead NO

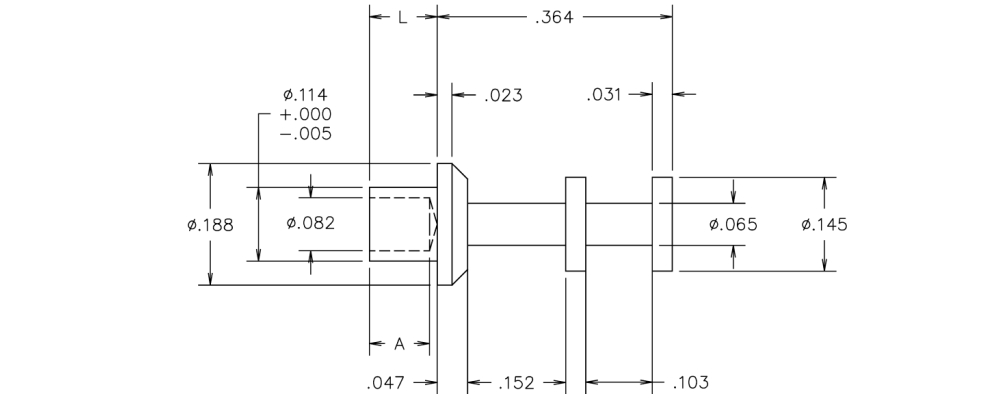

10-240-5-035
10-240-5-035
10-240-5-035
0.555" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES

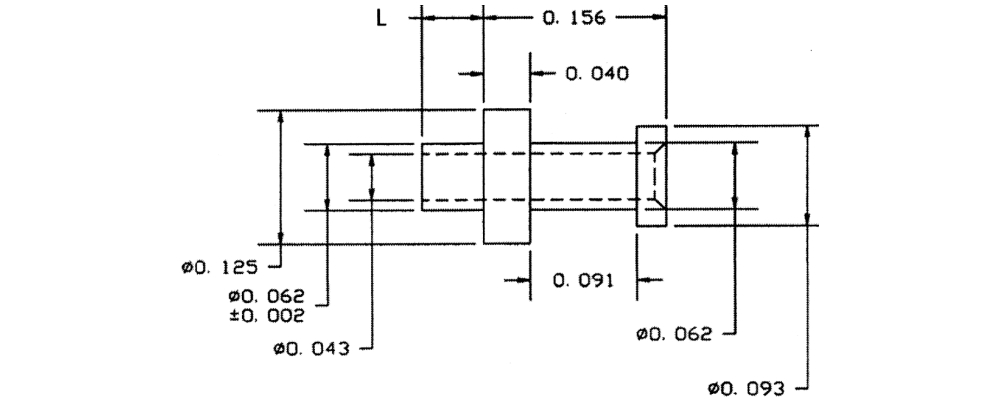

10-302-2-01
10-302-2-01
10-302-2-01
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Silver YES
10-310-4-01
10-310-4-01
10-310-4-01
0.368" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES
10-320-2-044
10-320-2-044
10-320-2-044
0.295" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES

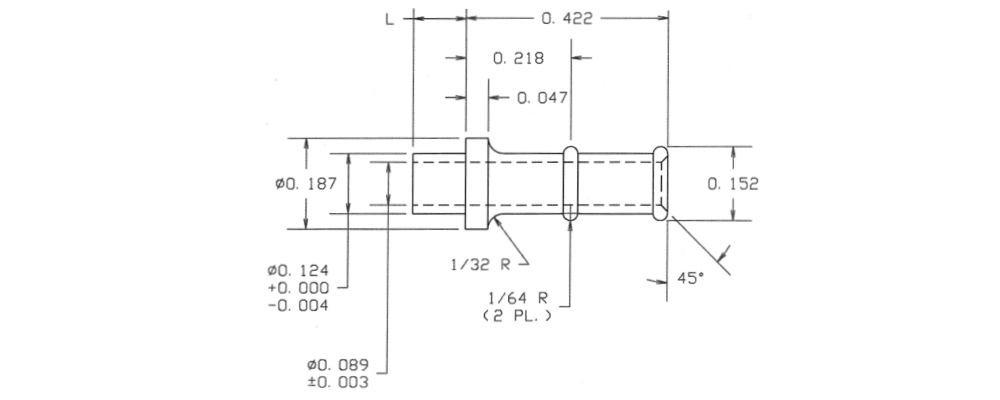

10-337-4-03
10-337-4-03
10-337-4-03
0.594" - - Swage Mount 0.172" 1/8 0.125 Brass Gold YES
10-415-1-05
10-415-1-05
10-415-1-05
0.217" - - Swage Mount 0.051" 1/32 0.052 Brass Electro Solder NO
10-422-5-088
10-422-5-088
10-422-5-088
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin-Lead NO
10-441-5-088
10-441-5-088
10-441-5-088
0.539" - - Swage Mount 0.195" 5/32 0.1405 Brass Bright Tin-Lead NO
10-458-3-04
10-458-3-04
10-458-3-04
0.313" - - Swage Mount 0.125" 3/32 0.076 Brass Electro-Tin YES

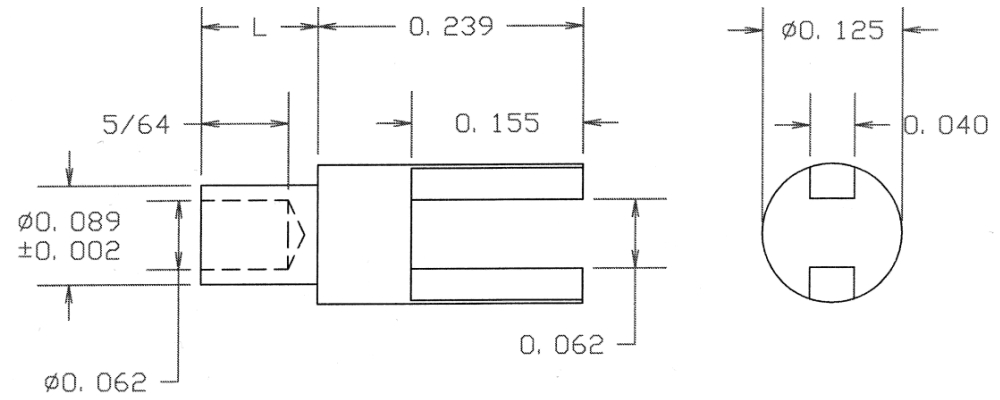

10-468-3-044
10-468-3-044
10-468-3-044
0.374" - - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin YES
10-501-4-095
10-501-4-095
10-501-4-095
0.331" - Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Hot Solder Dip NO

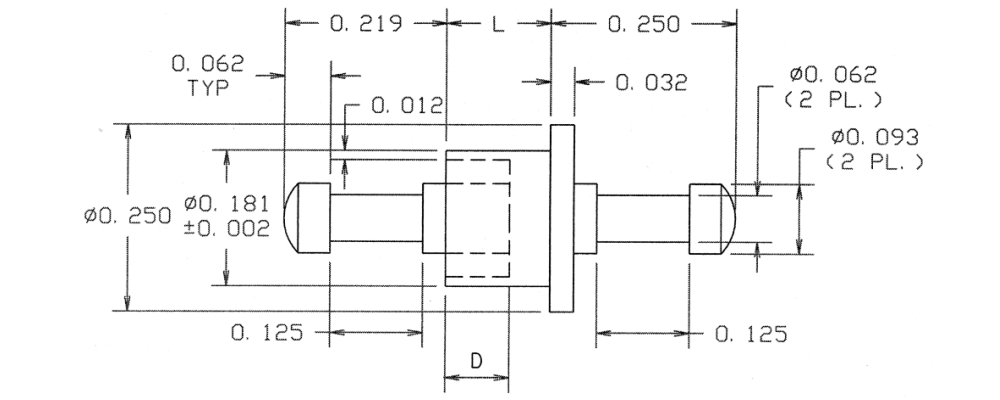

10-507-4-095
10-507-4-095
10-507-4-095
0.641" - Turret/Turret Swage Mount 0.172" 1/8 0.185 Brass Hot Solder Dip NO
10-513-3-095
10-513-3-095
10-513-3-095
0.454" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.129 Brass Hot Solder Dip NO
10-522-5-095
10-522-5-095
10-522-5-095
0.664" - Turret/Turret Swage Mount 0.195" 5/32 0.206 Brass Hot Solder Dip NO
10-542-4-095
10-542-4-095
10-542-4-095
0.519" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.094 Brass Hot Solder Dip NO
10-559-2-095
10-559-2-095
10-559-2-095
0.379" - TURRET/DOUBLE TURRET Swage Mount 0.084" 1/16 0.076 Brass Hot Solder Dip NO
10-604-6-04
10-604-6-04
10-604-6-04
0.921" - - Swage Mount 0.234" 3/16 0.266 Brass Electro-Tin YES
