Commercial
Non-Insulated
Terminals

Filter
10-415-1-04
10-415-1-04
10-415-1-04
0.217" - - Swage Mount 0.051" 1/32 0.052 Brass Electro-Tin YES
10-422-5-044
10-422-5-044
10-422-5-044
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin YES

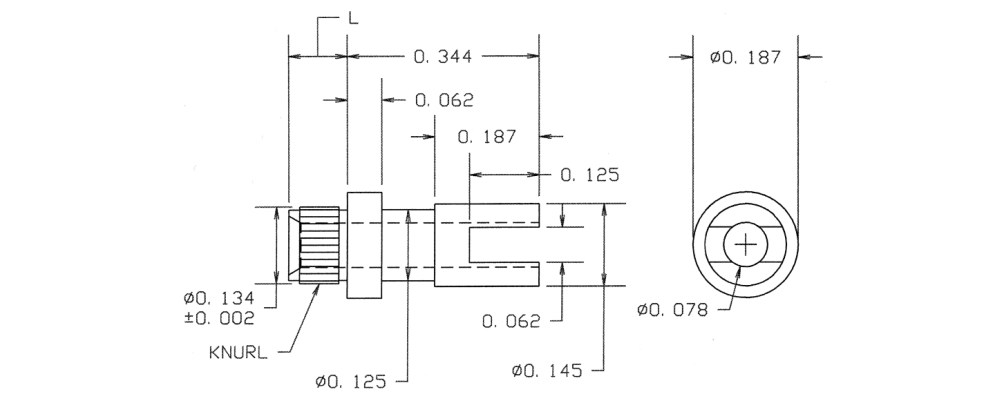

10-441-5-044
10-441-5-044
10-441-5-044
0.539" - - Swage Mount 0.195" 5/32 0.1405 Brass Bright Tin YES
10-458-3-03
10-458-3-03
10-458-3-03
0.313" - - Swage Mount 0.125" 3/32 0.076 Brass Gold YES

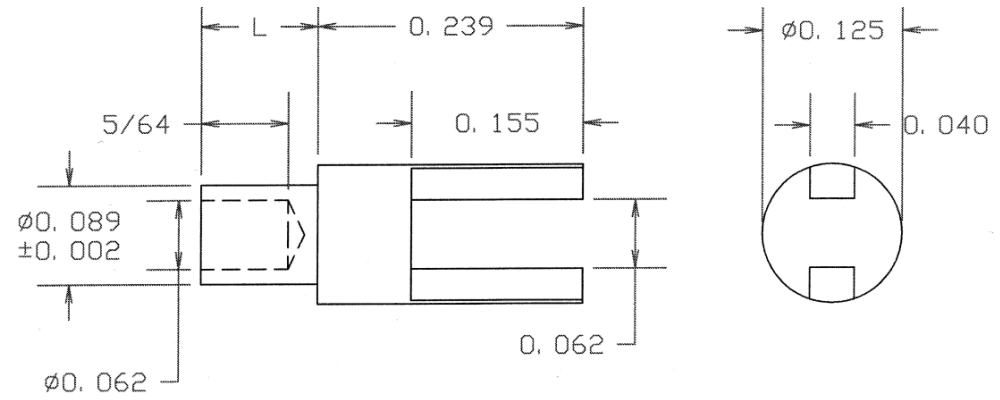

10-468-3-035
10-468-3-035
10-468-3-035
0.374" - - Swage Mount 0.135" 3/32 0.094 Brass Gold YES
10-501-4-05
10-501-4-05
10-501-4-05
0.331" - Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO
10-507-4-05
10-507-4-05
10-507-4-05
0.641" - Turret/Turret Swage Mount 0.172" 1/8 0.185 Brass Electro Solder NO
10-513-3-05
10-513-3-05
10-513-3-05
0.454" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.129 Brass Electro Solder NO
10-522-5-05
10-522-5-05
10-522-5-05
0.664" - Turret/Turret Swage Mount 0.195" 5/32 0.206 Brass Electro Solder NO
10-542-4-05
10-542-4-05
10-542-4-05
0.519" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.094 Brass Electro Solder NO
10-559-2-05
10-559-2-05
10-559-2-05
0.379" - TURRET/DOUBLE TURRET Swage Mount 0.084" 1/16 0.076 Brass Electro Solder NO
10-604-6-03
10-604-6-03
10-604-6-03
0.921" - - Swage Mount 0.234" 3/16 0.266 Brass Gold YES
10-706-4-03
10-706-4-03
10-706-4-03
0.482" - - 4-40 - - 4-40 THREAD Brass Gold YES
10-8011-6-044
10-8011-6-044
10-8011-6-044
0.484" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin YES
10-802-3-03
10-802-3-03
10-802-3-03
0.333" 0.032 TURRET/PIN Swage Mount 0.115" 3/32 0.067 Brass Gold YES
10-806-8-01
10-806-8-01
10-806-8-01
0.724" - - Swage Mount 0.297" 1/4 0.094 Brass Silver YES
10-812-4-05
10-812-4-05
10-812-4-05
0.656" - Turret/Turret Swage Mount 0.156" 1/8 0.147 Brass Electro Solder NO

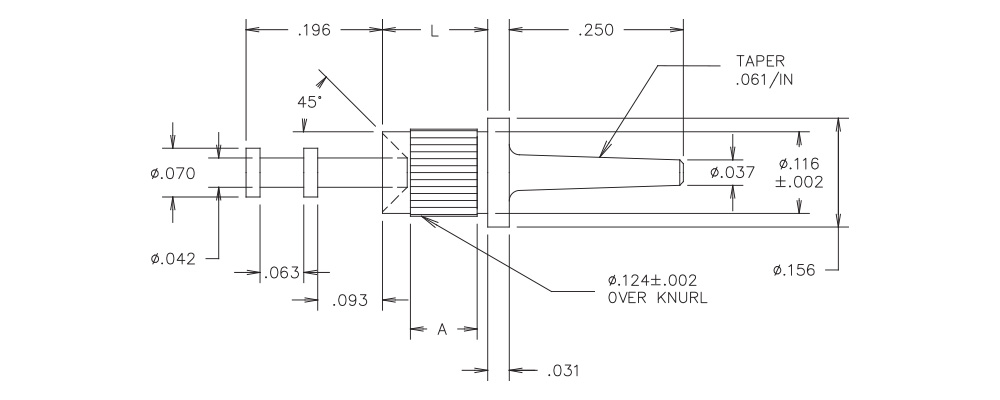

10-823-2-03
10-823-2-03
10-823-2-03
0.564" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.087" 1/16 0.120 Brass Gold YES
10-833-1-01
10-833-1-01
10-833-1-01
0.376" 0.050 - Swage Mount 0.063" 1/32 0.064 Brass Silver YES
10-840-3-044
10-840-3-044
10-840-3-044
0.518" - - Swage Mount 0.135" 3/32 0.1495 Brass Bright Tin YES
