Commercial
Non-Insulated
Terminals

Filter
10-931-3-03
10-931-3-03
10-931-3-03
0.281" - - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES
10-975-1-01
10-975-1-01
10-975-1-01
1.071" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

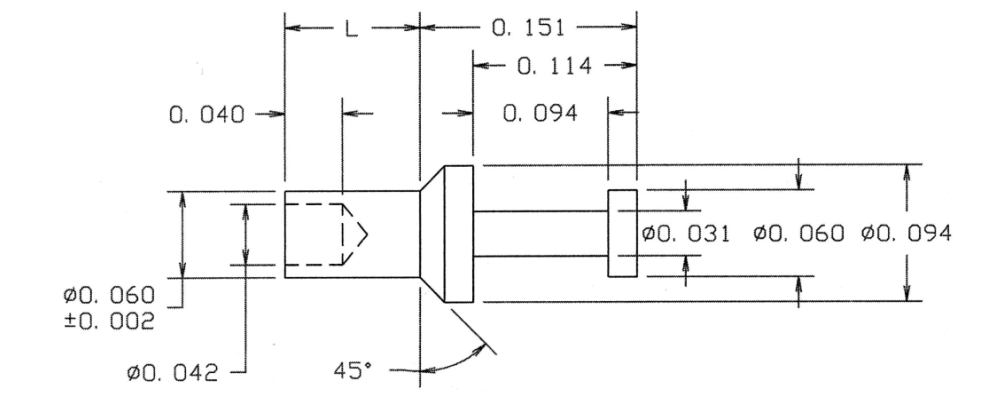

14-946-1-044
14-946-1-044
14-946-1-044
0.213" - - Swage Mount 0.062" 1/32 0.063 LEADED Red Brass Bright Tin YES
10-401-3-044
10-401-3-044
10-401-3-044
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Bright Tin YES
10-416-11-03
10-416-11-03
10-416-11-03
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Gold YES
10-450-2-05
10-450-2-05
10-450-2-05
0.293" - - Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO
10-472-4-035
10-472-4-035
10-472-4-035
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
14-414-4-088
14-414-4-088
14-414-4-088
0.302" - - Swage Mount 0.145" 1/8 0.052 LEADED Red Brass Bright Tin-Lead NO

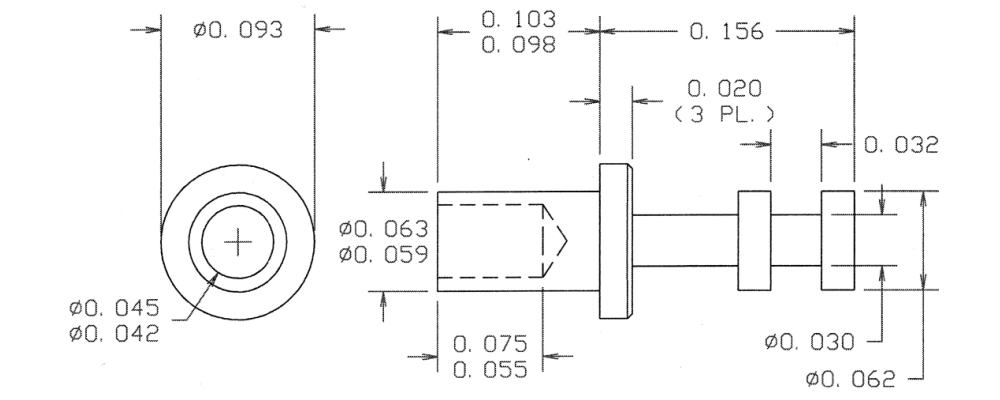

09-0056-2-044
09-0056-2-044
09-0056-2-044
0.259" - - Swage Mount 0.100" 1/16 0.067 Brass Bright Tin YES
09-0144-2-044
09-0144-2-044
09-0144-2-044
0.588" - - 8-32 - - 8-32 THREAD Brass Bright Tin YES

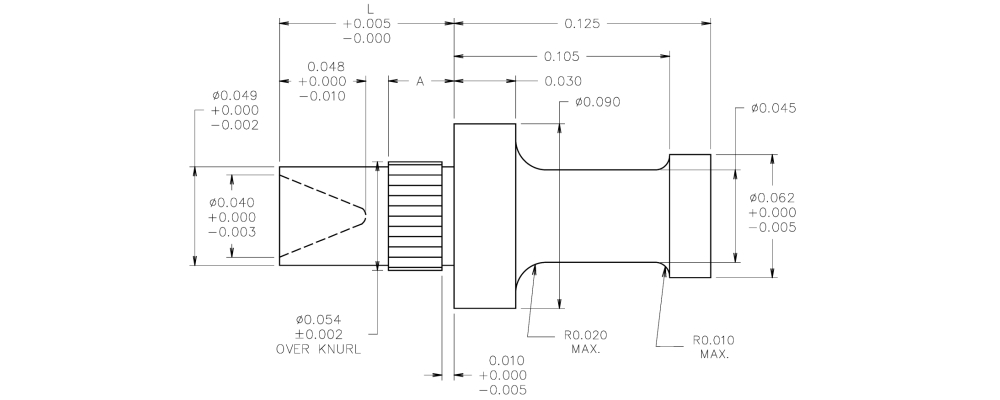

09-0182-1-01
09-0182-1-01
09-0182-1-01
0.225" - - Swage Mount 0.100" 1/16 0.052 Brass Silver YES
09-0219-5-03
09-0219-5-03
09-0219-5-03
0.488" - - Swage Mount 0.178" 5/32 0.067 Brass Gold YES
09-0268-2-05
09-0268-2-05
09-0268-2-05
0.399" - - Swage Mount 0.109" 1/16 0.094 Brass Electro Solder NO
09-0317-1-035
09-0317-1-035
09-0317-1-035
0.594" 0.040 Pin/Pin 2-56 Nut - 3/32 0.094 Brass Gold YES

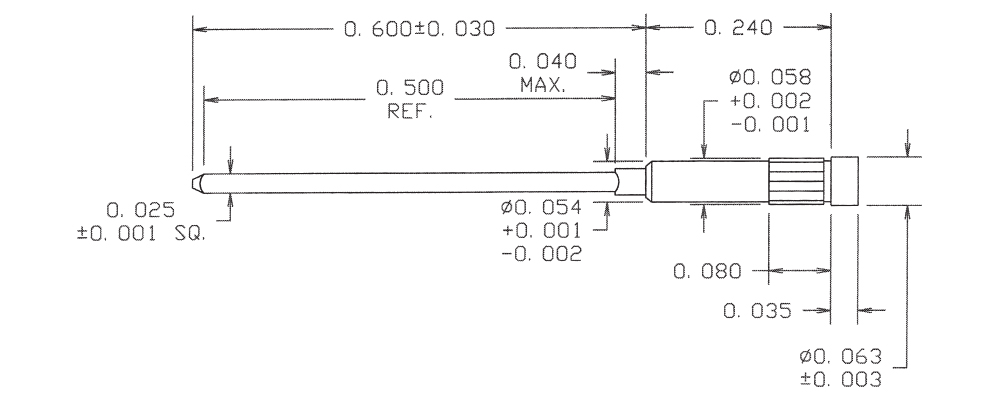

09-6002-1-035
09-6002-1-035
09-6002-1-035
0.875" 0.025 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.240" 1/16 TO 3/16 0.055 Brass Gold YES
09-7020-3-05
09-7020-3-05
09-7020-3-05
0.257" - - Swage Mount 0.117" 3/32 0.059 Brass Electro Solder NO

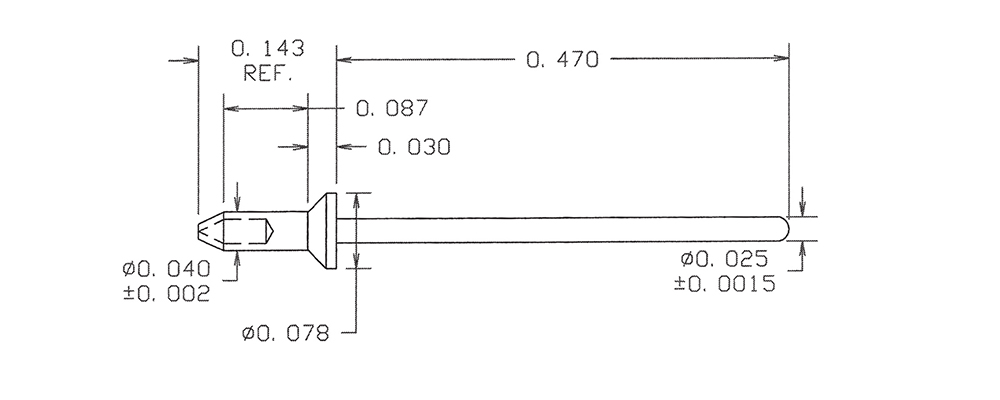

09-7137-2-035
09-7137-2-035
09-7137-2-035
0.613" 0.0255 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES

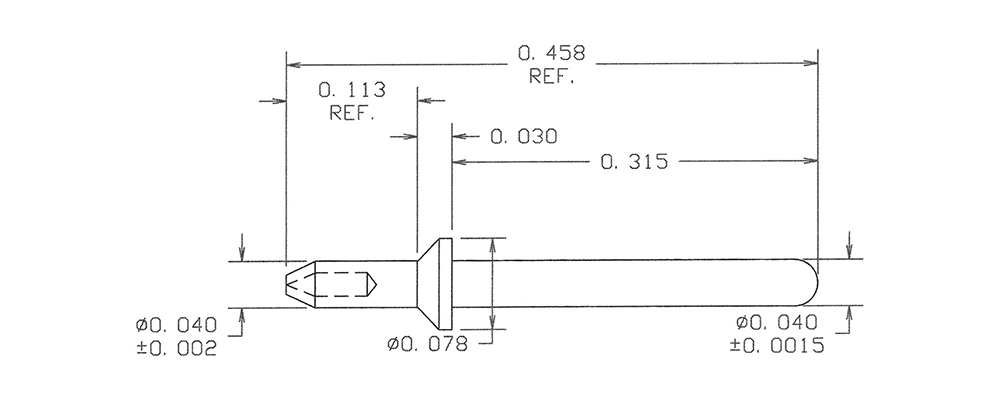

09-7164-1-088
09-7164-1-088
09-7164-1-088
0.458" 0.0405 - RIVET MOUNT 0.088" 1/16 0.044 Brass Bright Tin-Lead NO
09-7199-2-04
09-7199-2-04
09-7199-2-04
0.554" 0.046 - RIVET MOUNT 0.098" 1/16 0.067 Brass Electro-Tin YES

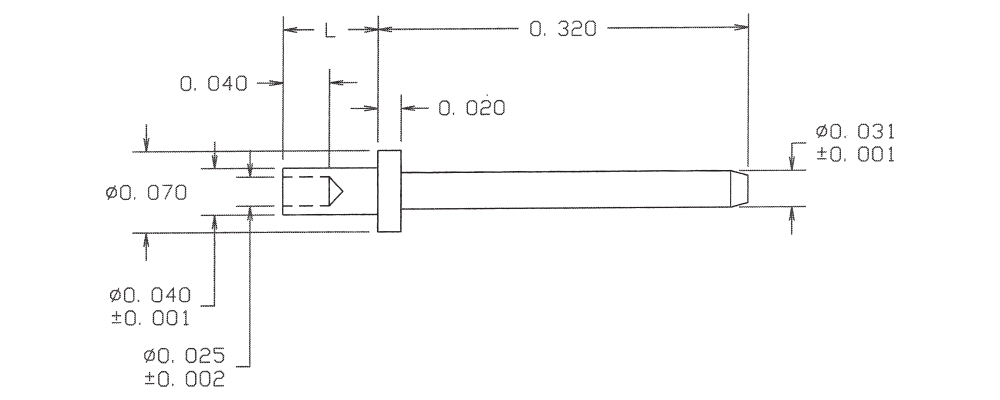

09-8044-2-01
09-8044-2-01
09-8044-2-01
0.402" 0.031 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
