Military
Insulated
Terminals

Filter
1100-07M-0518Z
1100-07M-0518Z
1100-07M-0518Z
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/088B02 AA59126/088B02
1125-42M-0519Z
1125-42M-0519Z
1125-42M-0519Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE White M55155/109B01 AA59126/109B01
1127-69M-0513Z
1127-69M-0513Z
1127-69M-0513Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Orange M55155/183B02 AA59126/183B02
1127-68M-08816Z
1127-68M-08816Z
1127-68M-08816Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186D01 AA59126/186D01
1110-40M-0516Z
1110-40M-0516Z
1110-40M-0516Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Blue M55155/036B03 AA59126/036B03

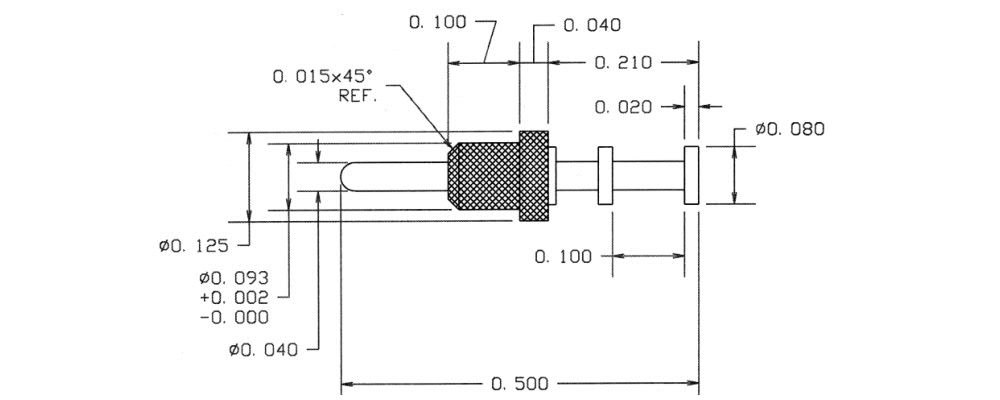

1133-03M-09516Z
1133-03M-09516Z
1133-03M-09516Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Blue M55155/046C03 AA59126/046C03
1110-40M-09519Z
1110-40M-09519Z
1110-40M-09519Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE White M55155/039C03 AA59126/039C03
1169-36M-0511Z
1169-36M-0511Z
1169-36M-0511Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Brown M55155/091B03 AA59126/091B03
1169-36M-08817Z
1169-36M-08817Z
1169-36M-08817Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Violet M55155/097D03 AA59126/097D03
1133-01M-09513Z
1133-01M-09513Z
1133-01M-09513Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Orange M55155/043C01 AA59126/043C01
1127-69M-0515Z
1127-69M-0515Z
1127-69M-0515Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Green M55155/185B02 AA59126/185B02
1110-16M-09516Z
1110-16M-09516Z
1110-16M-09516Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036C01 AA59126/036C01
1110-16M-08817Z
1110-16M-08817Z
1110-16M-08817Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037D01 AA59126/037D01
1169-36M-0512Z
1169-36M-0512Z
1169-36M-0512Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Red M55155/092B03 AA59126/092B03
1127-69M-0519Z
1127-69M-0519Z
1127-69M-0519Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189B02 AA59126/189B02
1125-46M-08817Z
1125-46M-08817Z
1125-46M-08817Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107D02 AA59126/107D02
1133-03M-0519Z
1133-03M-0519Z
1133-03M-0519Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE White M55155/049B03 AA59126/049B03
1169-36M-0514Z
1169-36M-0514Z
1169-36M-0514Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Yellow M55155/094B03 AA59126/094B03
1127-02M-08815Z
1127-02M-08815Z
1127-02M-08815Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Green M55155/195D02 AA59126/195D02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
