Military
Insulated
Terminals

Filter

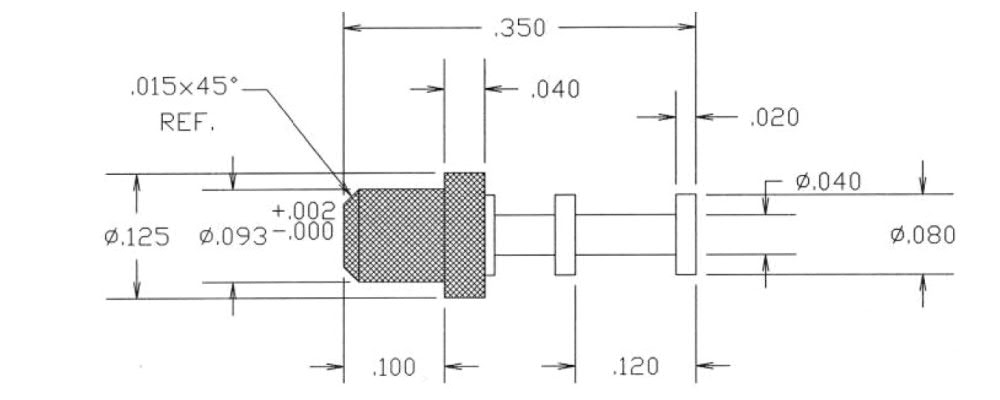

1102-03M-08817Z
1102-03M-08817Z
1102-03M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/077D03 AA59126/077D03

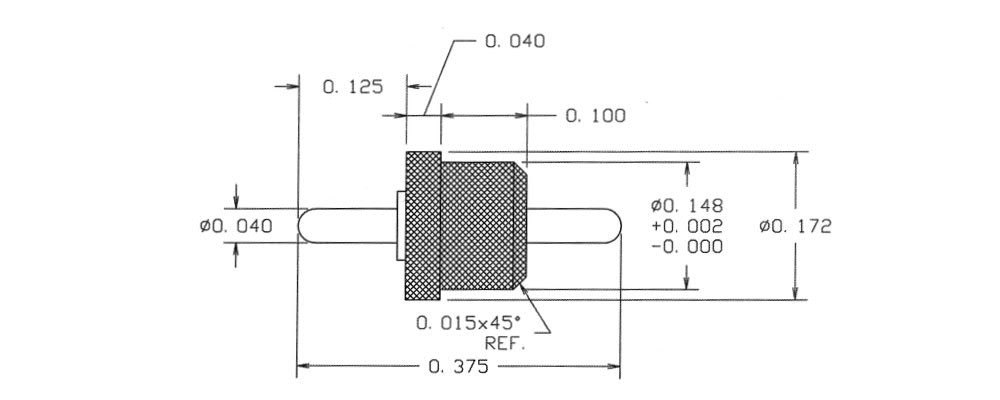

1110-16M-09515Z
1110-16M-09515Z
1110-16M-09515Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035C01 AA59126/035C01

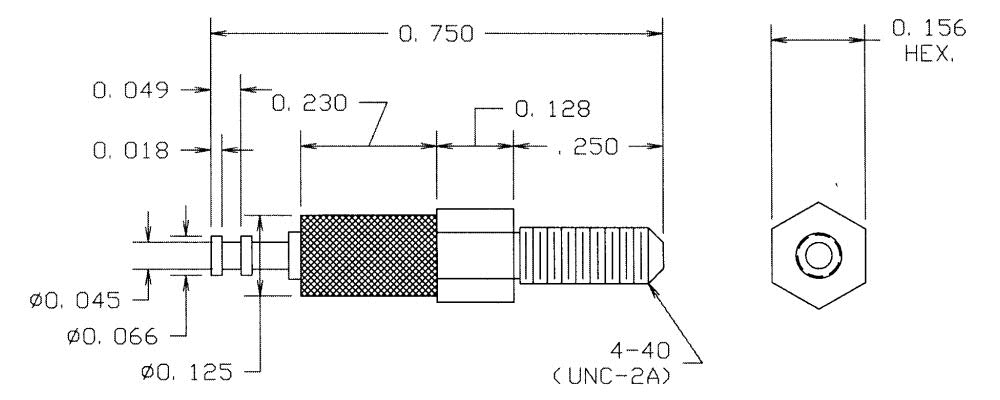

1125-43M-0517
1125-43M-0517
1125-43M-0517
0.750" - 4-40 Nut 1/8 0.120 PTFE Violet M55155/097H01 AA59126/097H01

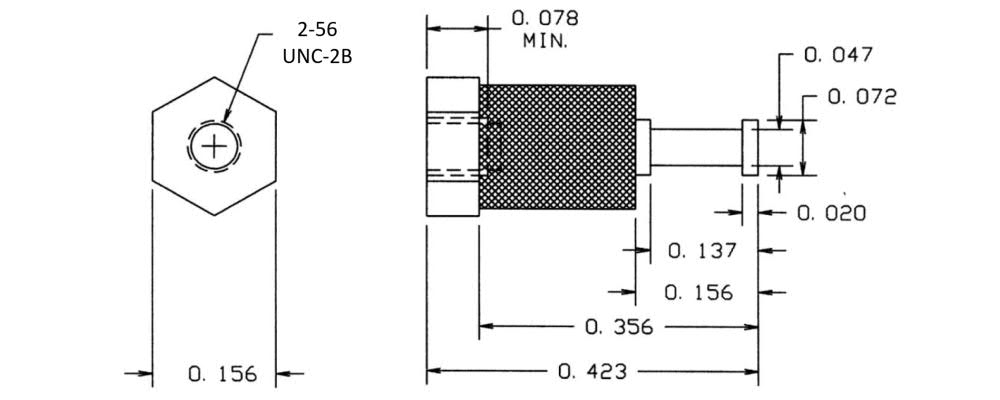

1127-02M-09516Z
1127-02M-09516Z
1127-02M-09516Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Blue M55155/196C02 AA59126/196C02

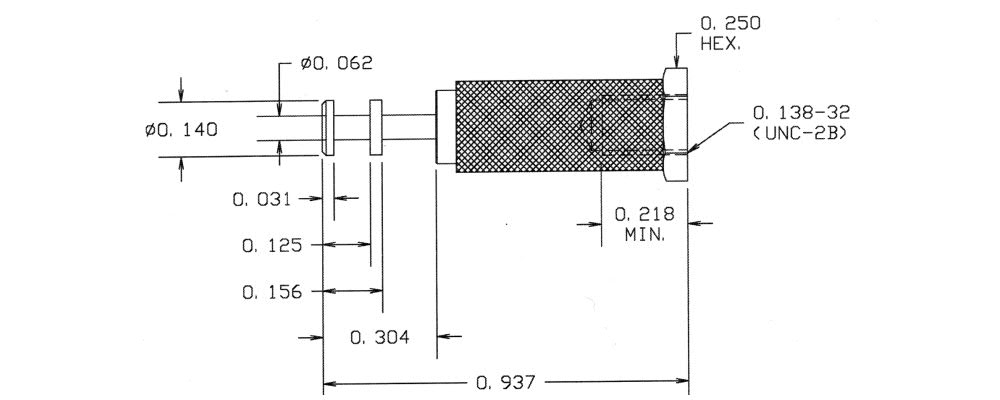

1127-07M-0514Z
1127-07M-0514Z
1127-07M-0514Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Yellow M55155/204B04 AA59126/204B04

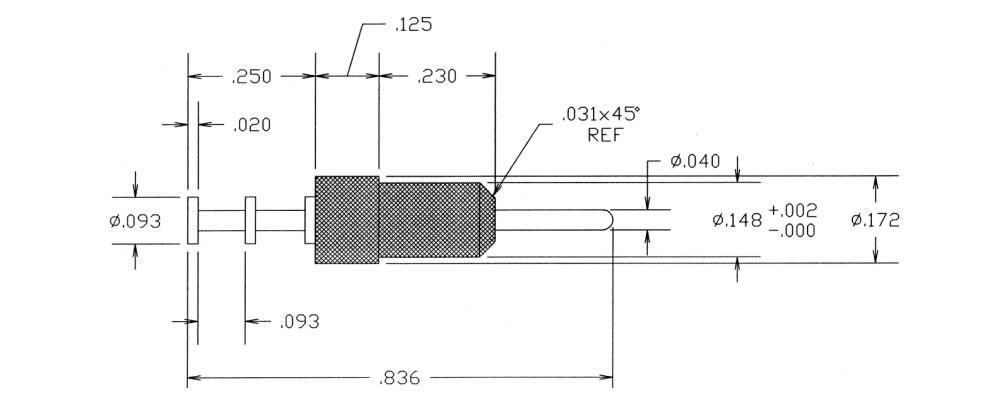

1133-02M-09517Z
1133-02M-09517Z
1133-02M-09517Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Violet M55155/047C02 AA59126/047C02

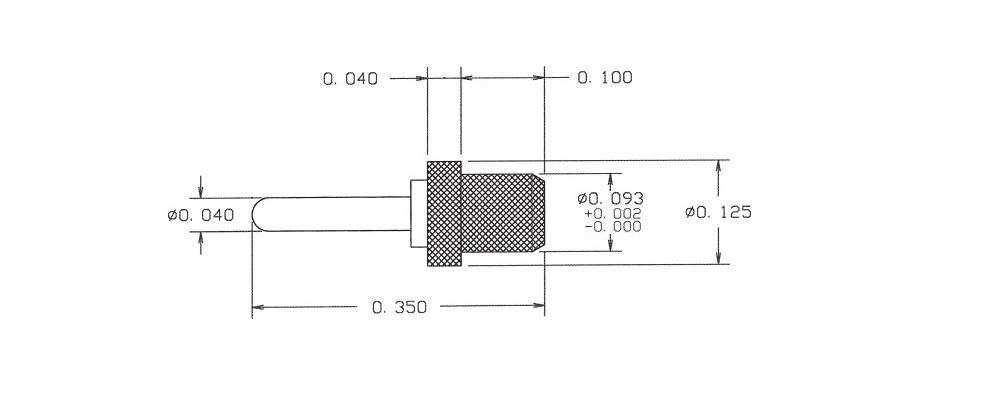

1100-07M-09510Z
1100-07M-09510Z
1100-07M-09510Z
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/080C02 AA59126/080C02

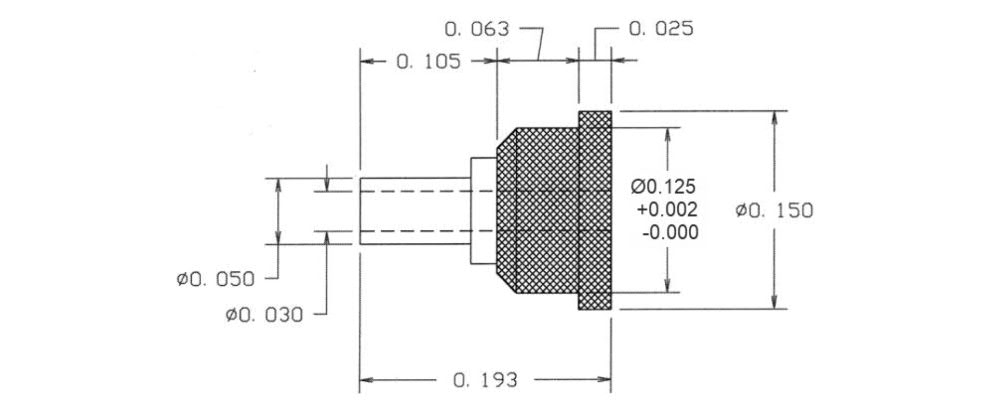

1114R-09M-09518Z
1114R-09M-09518Z
1114R-09M-09518Z
0.193" - Press Fit 1/32 0.113 PTFE Gray M55155/068C01 AA59126/068C01
1102-03M-08818
1102-03M-08818
1102-03M-08818
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/078J03 AA59126/078J03
1110-16M-09516
1110-16M-09516
1110-16M-09516
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036I01 AA59126/036I01
1125-43M-0518
1125-43M-0518
1125-43M-0518
0.750" - 4-40 Nut 1/8 0.120 PTFE Gray M55155/098H01 AA59126/098H01
1127-02M-09517
1127-02M-09517
1127-02M-09517
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/197I02 AA59126/197I02
1127-07M-0515
1127-07M-0515
1127-07M-0515
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205H04 AA59126/205H04
1133-02M-09518
1133-02M-09518
1133-02M-09518
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Gray M55155/048I02 AA59126/048I02
1100-07M-09511
1100-07M-09511
1100-07M-09511
0.350" - Press Fit 1/16 0.086 PTFE Brown M55155/081I02 AA59126/081I02
1114R-09M-09519
1114R-09M-09519
1114R-09M-09519
0.193" - Press Fit 1/32 0.113 PTFE White M55155/069I01 AA59126/069I01
1102-03M-08818Z
1102-03M-08818Z
1102-03M-08818Z
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/078D03 AA59126/078D03
1110-16M-09516Z
1110-16M-09516Z
1110-16M-09516Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Blue M55155/036C01 AA59126/036C01
1125-43M-0519
1125-43M-0519
1125-43M-0519
0.750" - 4-40 Nut 1/8 0.120 PTFE White M55155/099H01 AA59126/099H01
1127-02M-09517Z
1127-02M-09517Z
1127-02M-09517Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/197C02 AA59126/197C02
