Military
Insulated
Terminals

Filter
1102-14M-08814Z
1102-14M-08814Z
1102-14M-08814Z
0.359" - Press Fit 1/16 0.136 PTFE Yellow M55155/074D01 AA59126/074D01
1102-14M-08816Z
1102-14M-08816Z
1102-14M-08816Z
0.359" - Press Fit 1/16 0.136 PTFE Blue M55155/076D01 AA59126/076D01
1110-21M-0518
1110-21M-0518
1110-21M-0518
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038H02 AA59126/038H02
1110-05M-08818
1110-05M-08818
1110-05M-08818
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Gray M55155/038J04 AA59126/038J04
1110-40M-0515
1110-40M-0515
1110-40M-0515
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Green M55155/035H03 AA59126/035H03
1125-46M-0510
1125-46M-0510
1125-46M-0510

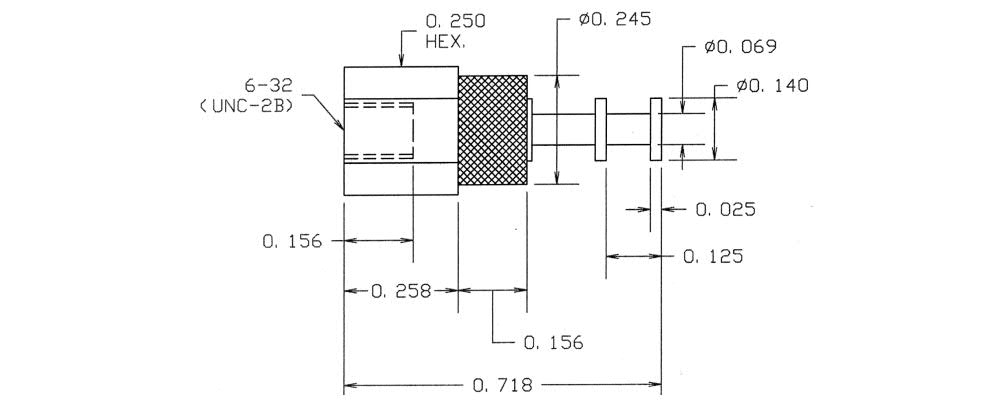

0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Black M55155/100H02 AA59126/100H02
1125-42M-0513
1125-42M-0513
1125-42M-0513
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Orange M55155/103H01 AA59126/103H01
1125-46M-09514
1125-46M-09514
1125-46M-09514
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Yellow M55155/104I02 AA59126/104I02
1125-42M-08814
1125-42M-08814
1125-42M-08814
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Yellow M55155/104J01 AA59126/104J01
1125-46M-0517
1125-46M-0517
1125-46M-0517
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107H02 AA59126/107H02
1125-42M-09510
1125-42M-09510
1125-42M-09510
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Black M55155/100I01 AA59126/100I01
1125-46M-09510
1125-46M-09510
1125-46M-09510
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Black M55155/100I02 AA59126/100I02
1125-42M-0516
1125-42M-0516
1125-42M-0516
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Blue M55155/106H01 AA59126/106H01
1125-42M-0510
1125-42M-0510
1125-42M-0510
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Black M55155/100H01 AA59126/100H01
1125-42M-09519
1125-42M-09519
1125-42M-09519
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE White M55155/109I01 AA59126/109I01
1125-46M-0512
1125-46M-0512
1125-46M-0512
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Red M55155/102H02 AA59126/102H02
1125-42M-0517
1125-42M-0517
1125-42M-0517
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Violet M55155/107H01 AA59126/107H01
1169-37M-09515Z
1169-37M-09515Z
1169-37M-09515Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Green M55155/095C04 AA59126/095C04
1169-37M-09512Z
1169-37M-09512Z
1169-37M-09512Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Red M55155/092C04 AA59126/092C04
1169-36M-09519Z
1169-36M-09519Z
1169-36M-09519Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE White M55155/099C03 AA59126/099C03
