Military
Insulated
Terminals

Filter
1133-01M-09512Z
1133-01M-09512Z
1133-01M-09512Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Red M55155/042C01 AA59126/042C01
1100-28M-09515Z
1100-28M-09515Z
1100-28M-09515Z
0.350" - Press Fit 1/16 0.136 PTFE Green M55155/085C01 AA59126/085C01
1100-28M-0519Z
1100-28M-0519Z
1100-28M-0519Z
0.350" - Press Fit 1/16 0.136 PTFE White M55155/089B01 AA59126/089B01
1100-28M-08816Z
1100-28M-08816Z
1100-28M-08816Z
0.350" - Press Fit 1/16 0.136 PTFE Blue M55155/086D01 AA59126/086D01
1110-40M-09518Z
1110-40M-09518Z
1110-40M-09518Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Gray M55155/038C03 AA59126/038C03
1169-36M-08810Z
1169-36M-08810Z
1169-36M-08810Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Black M55155/090D03 AA59126/090D03
1100-28M-08815Z
1100-28M-08815Z
1100-28M-08815Z
0.350" - Press Fit 1/16 0.136 PTFE Green M55155/085D01 AA59126/085D01
1110-16M-08815Z
1110-16M-08815Z
1110-16M-08815Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Green M55155/035D01 AA59126/035D01
1127-04M-09510Z
1127-04M-09510Z
1127-04M-09510Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200C01 AA59126/200C01
1127-04M-09511Z
1127-04M-09511Z
1127-04M-09511Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201C01 AA59126/201C01
1127-04M-09514Z
1127-04M-09514Z
1127-04M-09514Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204C01 AA59126/204C01
1127-04M-09517Z
1127-04M-09517Z
1127-04M-09517Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207C01 AA59126/207C01
1127-04M-09518Z
1127-04M-09518Z
1127-04M-09518Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/208C01 AA59126/208C01
1127-04M-09519Z
1127-04M-09519Z
1127-04M-09519Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE White M55155/209C01 AA59126/209C01

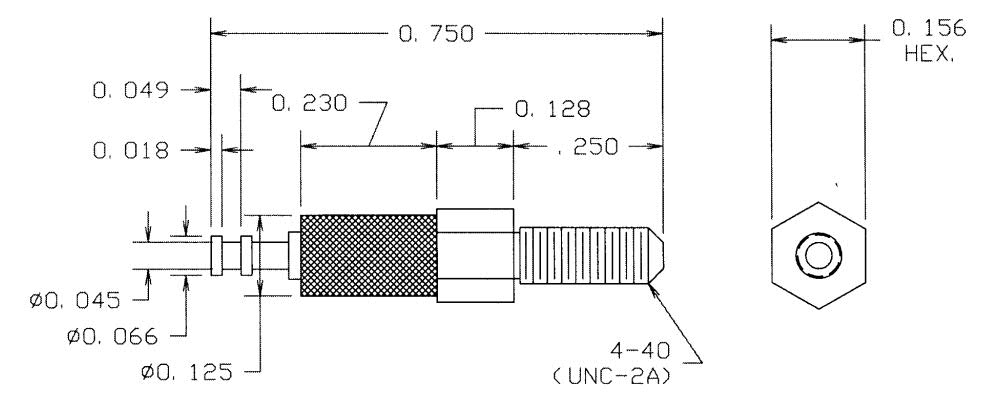

1125-43M-09510Z
1125-43M-09510Z
1125-43M-09510Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Black M55155/090C01 AA59126/090C01
1127-05M-09512Z
1127-05M-09512Z
1127-05M-09512Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202C02 AA59126/202C02
1127-06M-0517Z
1127-06M-0517Z
1127-06M-0517Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/207B03 AA59126/207B03
1127-05M-09513Z
1127-05M-09513Z
1127-05M-09513Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203C02 AA59126/203C02
1125-43M-09512Z
1125-43M-09512Z
1125-43M-09512Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Red M55155/092C01 AA59126/092C01
1127-05M-09514Z
1127-05M-09514Z
1127-05M-09514Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204C02 AA59126/204C02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
