Military
Insulated
Terminals

Filter
1127-06M-0512Z
1127-06M-0512Z
1127-06M-0512Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Red M55155/202B03 AA59126/202B03
1127-07M-09517Z
1127-07M-09517Z
1127-07M-09517Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Violet M55155/207C04 AA59126/207C04
1127-07M-09518Z
1127-07M-09518Z
1127-07M-09518Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Gray M55155/208C04 AA59126/208C04
1169-37M-08813Z
1169-37M-08813Z
1169-37M-08813Z

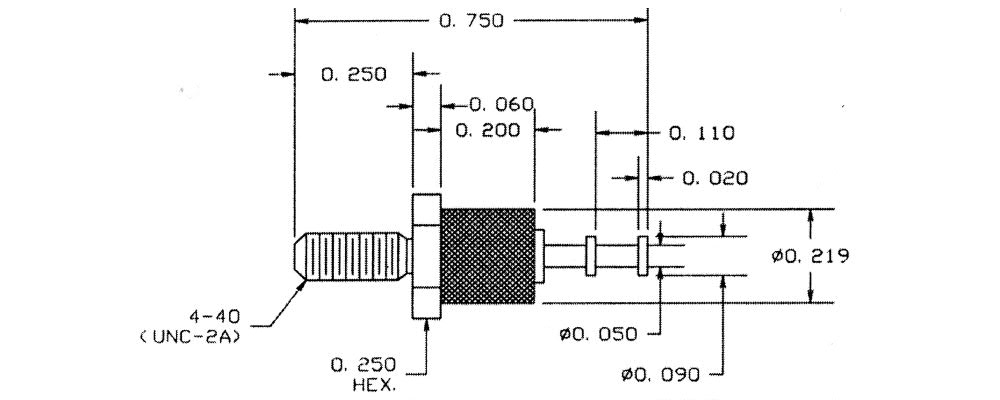

0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Orange M55155/093D04 AA59126/093D04
1127-06M-09517Z
1127-06M-09517Z
1127-06M-09517Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/207C03 AA59126/207C03
1117-01M-09518
1117-01M-09518
1117-01M-09518
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Gray M55155/028I01 AA59126/028I01
1117-01M-0510
1117-01M-0510
1117-01M-0510
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Black M55155/020H01 AA59126/020H01
1117-01M-08813
1117-01M-08813
1117-01M-08813
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Orange M55155/023J01 AA59126/023J01
1117-01M-0512
1117-01M-0512
1117-01M-0512
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Red M55155/022H01 AA59126/022H01
1117-01M-0515
1117-01M-0515
1117-01M-0515
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Green M55155/025H01 AA59126/025H01
1117-01M-09519
1117-01M-09519
1117-01M-09519
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE White M55155/029I01 AA59126/029I01
1117-01M-08811
1117-01M-08811
1117-01M-08811
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Brown M55155/021J01 AA59126/021J01
1117-01M-08814
1117-01M-08814
1117-01M-08814
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Yellow M55155/024J01 AA59126/024J01
1117-01M-09511
1117-01M-09511
1117-01M-09511
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Brown M55155/021I01 AA59126/021I01
1117-01M-08816
1117-01M-08816
1117-01M-08816
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026J01 AA59126/026J01
1117-01M-0516
1117-01M-0516
1117-01M-0516
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026H01 AA59126/026H01
1117-01M-09514
1117-01M-09514
1117-01M-09514
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Yellow M55155/024I01 AA59126/024I01
1117-01M-09515
1117-01M-09515
1117-01M-09515
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Green M55155/025I01 AA59126/025I01
1125-43M-09515Z
1125-43M-09515Z
1125-43M-09515Z

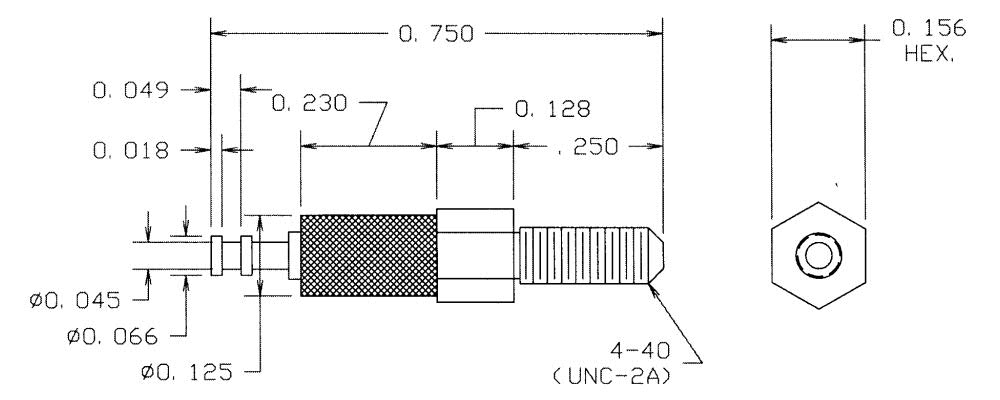

0.750" - 4-40 Nut 1/8 0.120 PTFE Green M55155/095C01 AA59126/095C01
1100-28M-08819
1100-28M-08819
1100-28M-08819
0.350" - Press Fit 1/16 0.136 PTFE White M55155/089J01 AA59126/089J01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
