Military
Insulated
Terminals

Filter
1127-69M-08816
1127-69M-08816
1127-69M-08816
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186J02 AA59126/186J02
1169-37M-0511
1169-37M-0511
1169-37M-0511
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Brown M55155/091H04 AA59126/091H04
1114-08M-09514
1114-08M-09514
1114-08M-09514

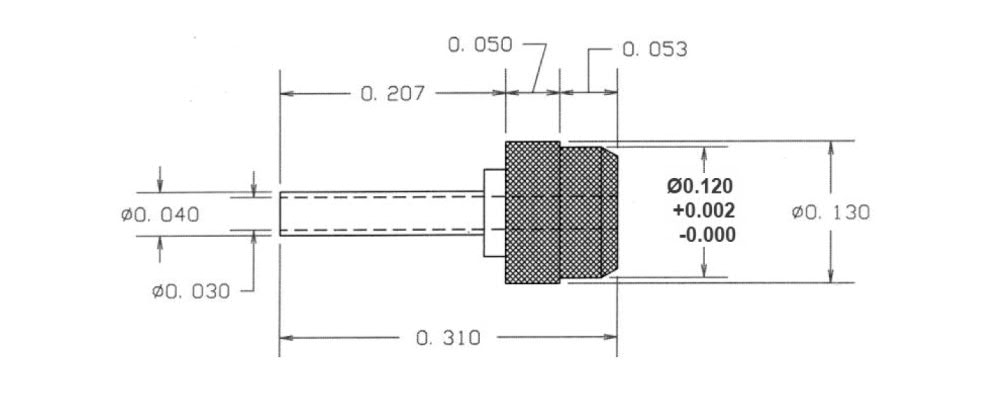

0.310" - Press Fit 3/32 0.108 PTFE Yellow M55155/054I02 AA59126/054I02
1125-43M-0514Z
1125-43M-0514Z
1125-43M-0514Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Yellow M55155/094B01 AA59126/094B01
1102-31M-09511Z
1102-31M-09511Z
1102-31M-09511Z

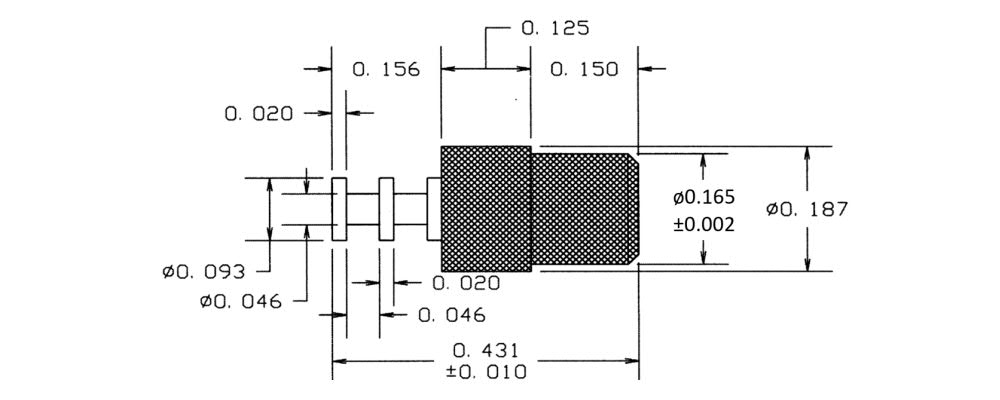

0.431" - Press Fit 1/8 0.152 PTFE Brown M55155/071C02 AA59126/071C02
1110-40M-09519Z
1110-40M-09519Z
1110-40M-09519Z

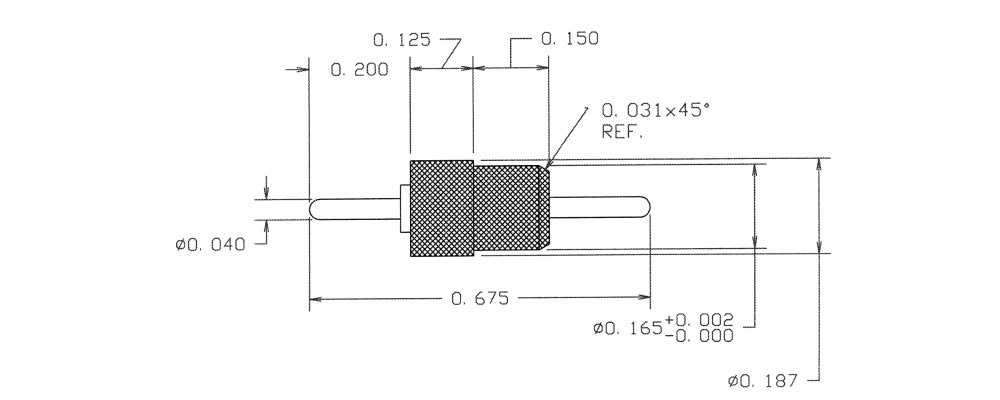

0.675" Pin/Pin Press Fit 1/8 0.152 PTFE White M55155/039C03 AA59126/039C03
1125-46M-09512Z
1125-46M-09512Z
1125-46M-09512Z

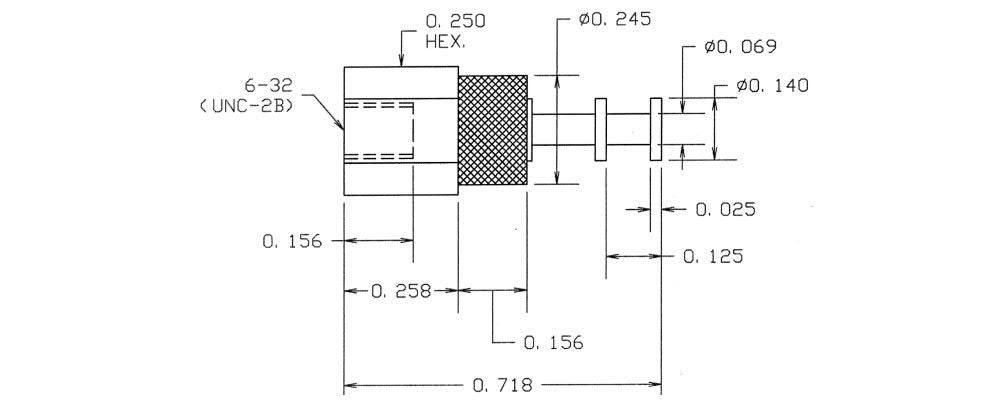

0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Red M55155/102C02 AA59126/102C02
1127-05M-0510Z
1127-05M-0510Z
1127-05M-0510Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200B02 AA59126/200B02
1127-69M-08817
1127-69M-08817
1127-69M-08817
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187J02 AA59126/187J02
1169-37M-0511Z
1169-37M-0511Z
1169-37M-0511Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Brown M55155/091B04 AA59126/091B04
1114-08M-09514Z
1114-08M-09514Z
1114-08M-09514Z
0.310" - Press Fit 3/32 0.108 PTFE Yellow M55155/054C02 AA59126/054C02
1125-43M-0515Z
1125-43M-0515Z
1125-43M-0515Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Green M55155/095B01 AA59126/095B01
1102-31M-09512
1102-31M-09512
1102-31M-09512
0.431" - Press Fit 1/8 0.152 PTFE Red M55155/072I02 AA59126/072I02
1110-75M-0510
1110-75M-0510
1110-75M-0510
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Black M55155/030H05 AA59126/030H05
1125-46M-09513
1125-46M-09513
1125-46M-09513
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Orange M55155/103I02 AA59126/103I02
1127-05M-0511
1127-05M-0511
1127-05M-0511
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201H02 AA59126/201H02
1127-69M-08818
1127-69M-08818
1127-69M-08818
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188J02 AA59126/188J02
1169-37M-0512
1169-37M-0512
1169-37M-0512
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Red M55155/092H04 AA59126/092H04
1114-08M-09515
1114-08M-09515
1114-08M-09515
0.310" - Press Fit 3/32 0.108 PTFE Green M55155/055I02 AA59126/055I02
1125-43M-0516Z
1125-43M-0516Z
1125-43M-0516Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Blue M55155/096B01 AA59126/096B01
