Military
Insulated
Terminals

Filter

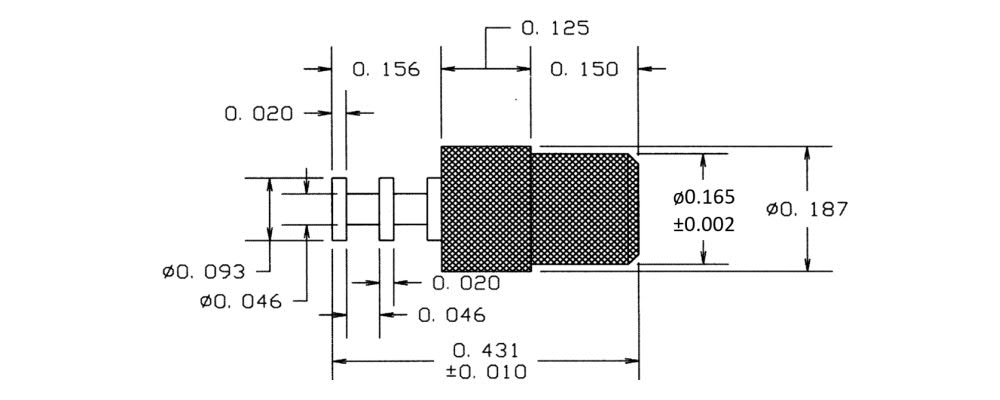

1102-31M-09517Z
1102-31M-09517Z
1102-31M-09517Z
0.431" - Press Fit 1/8 0.152 PTFE Violet M55155/077C02 AA59126/077C02
1110-75M-0515Z
1110-75M-0515Z
1110-75M-0515Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035B05 AA59126/035B05

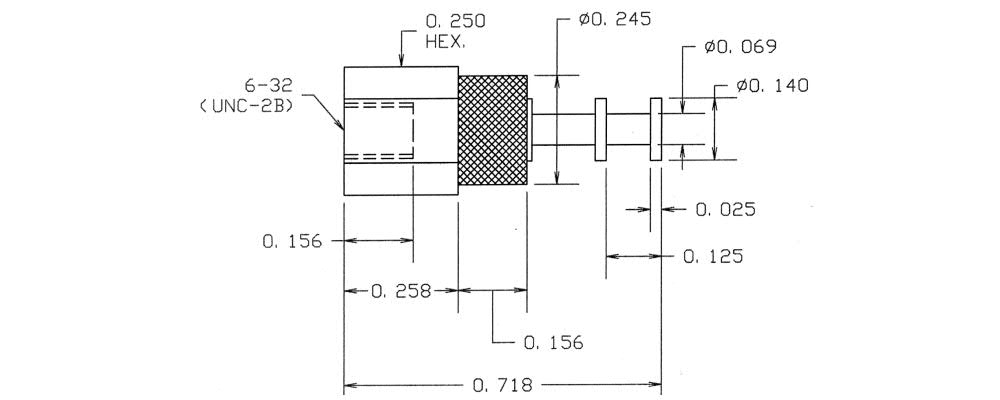

1125-46M-09518Z
1125-46M-09518Z
1125-46M-09518Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Gray M55155/108C02 AA59126/108C02
1127-05M-0516Z
1127-05M-0516Z
1127-05M-0516Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206B02 AA59126/206B02
1127-69M-09519
1127-69M-09519
1127-69M-09519
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189I02 AA59126/189I02
1169-37M-0517Z
1169-37M-0517Z
1169-37M-0517Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Violet M55155/097B04 AA59126/097B04
1114-23M-0510Z
1114-23M-0510Z
1114-23M-0510Z
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/050B03 AA59126/050B03
1125-43M-08817Z
1125-43M-08817Z
1125-43M-08817Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Violet M55155/097D01 AA59126/097D01
1102-31M-09518
1102-31M-09518
1102-31M-09518
0.431" - Press Fit 1/8 0.152 PTFE Gray M55155/078I02 AA59126/078I02
1110-75M-0516
1110-75M-0516
1110-75M-0516
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036H05 AA59126/036H05
1125-46M-09519
1125-46M-09519
1125-46M-09519
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109I02 AA59126/109I02
1127-05M-0517
1127-05M-0517
1127-05M-0517
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207H02 AA59126/207H02
1133-01M-0510
1133-01M-0510
1133-01M-0510
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Black M55155/040H01 AA59126/040H01
1169-37M-0518
1169-37M-0518
1169-37M-0518
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Gray M55155/098H04 AA59126/098H04
1114-23M-0511
1114-23M-0511
1114-23M-0511
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/051H03 AA59126/051H03
1125-43M-08818Z
1125-43M-08818Z
1125-43M-08818Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Gray M55155/098D01 AA59126/098D01
1102-31M-09518Z
1102-31M-09518Z
1102-31M-09518Z
0.431" - Press Fit 1/8 0.152 PTFE Gray M55155/078C02 AA59126/078C02
1110-75M-0516Z
1110-75M-0516Z
1110-75M-0516Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036B05 AA59126/036B05
1125-46M-09519Z
1125-46M-09519Z
1125-46M-09519Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109C02 AA59126/109C02
1127-05M-0517Z
1127-05M-0517Z
1127-05M-0517Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207B02 AA59126/207B02
