Military
Insulated
Terminals

Filter
1127-69M-09511
1127-69M-09511
1127-69M-09511
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Brown M55155/181I02 AA59126/181I02
1169-37M-0513Z
1169-37M-0513Z
1169-37M-0513Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Orange M55155/093B04 AA59126/093B04
1114-08M-09516Z
1114-08M-09516Z
1114-08M-09516Z
0.310" - Press Fit 3/32 0.108 PTFE Blue M55155/056C02 AA59126/056C02
1125-43M-0519Z
1125-43M-0519Z
1125-43M-0519Z
0.750" - 4-40 Nut 1/8 0.120 PTFE White M55155/099B01 AA59126/099B01

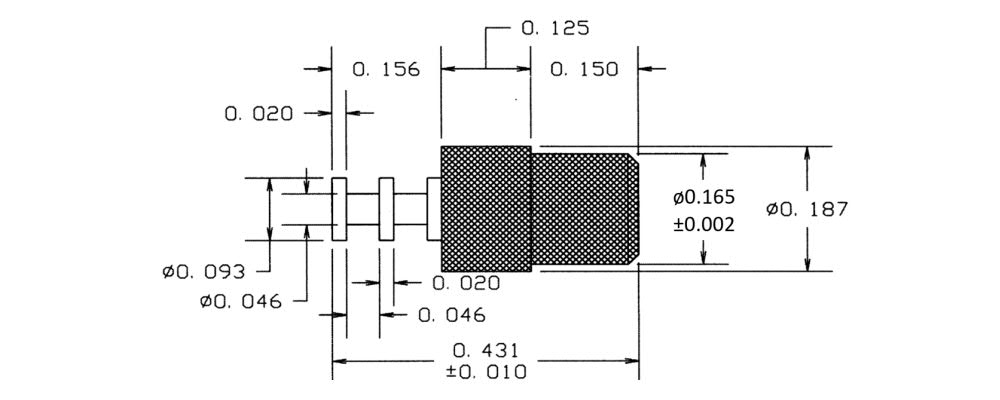

1102-31M-09514
1102-31M-09514
1102-31M-09514
0.431" - Press Fit 1/8 0.152 PTFE Yellow M55155/074I02 AA59126/074I02
1110-75M-0512
1110-75M-0512
1110-75M-0512
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032H05 AA59126/032H05

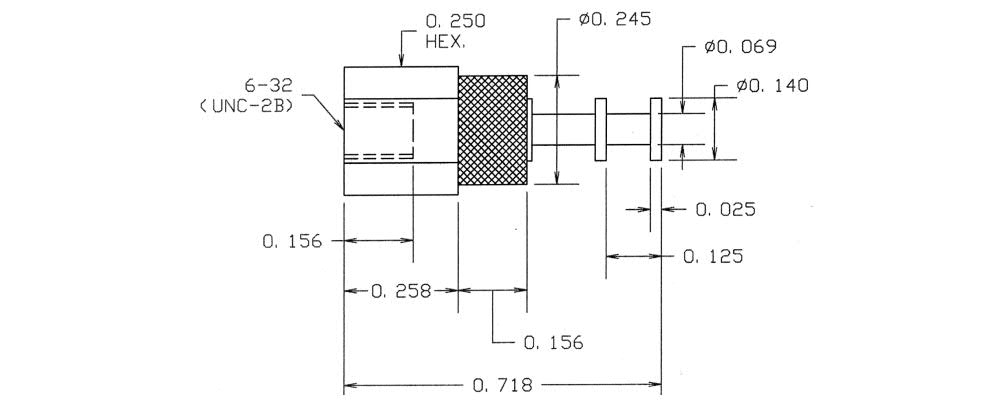

1125-46M-09515
1125-46M-09515
1125-46M-09515
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Green M55155/105I02 AA59126/105I02
1127-05M-0513
1127-05M-0513
1127-05M-0513
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203H02 AA59126/203H02
1127-69M-09512
1127-69M-09512
1127-69M-09512
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Red M55155/182I02 AA59126/182I02
1169-37M-0514
1169-37M-0514
1169-37M-0514
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Yellow M55155/094H04 AA59126/094H04

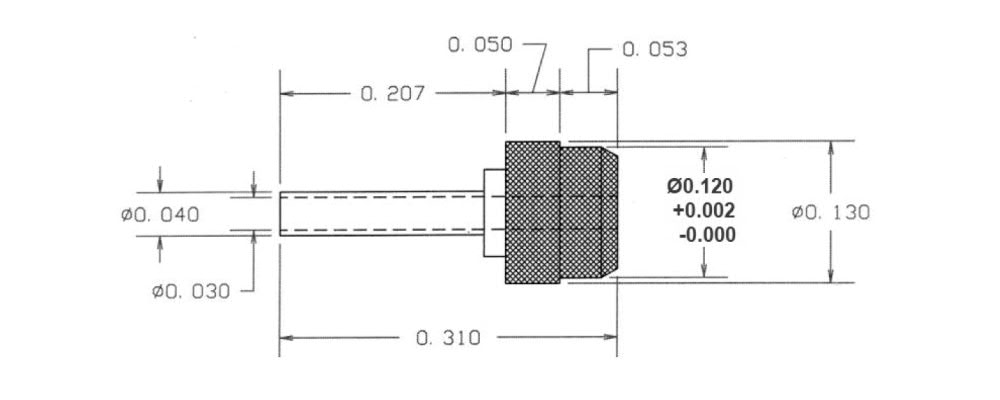

1114-08M-09517
1114-08M-09517
1114-08M-09517
0.310" - Press Fit 3/32 0.108 PTFE Violet M55155/057I02 AA59126/057I02
1125-43M-08810Z
1125-43M-08810Z
1125-43M-08810Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Black M55155/090D01 AA59126/090D01
1102-31M-09514Z
1102-31M-09514Z
1102-31M-09514Z
0.431" - Press Fit 1/8 0.152 PTFE Yellow M55155/074C02 AA59126/074C02
1110-75M-0512Z
1110-75M-0512Z
1110-75M-0512Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032B05 AA59126/032B05
1125-46M-09515Z
1125-46M-09515Z
1125-46M-09515Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Green M55155/105C02 AA59126/105C02
1127-05M-0513Z
1127-05M-0513Z
1127-05M-0513Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203B02 AA59126/203B02
1127-69M-09513
1127-69M-09513
1127-69M-09513
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Orange M55155/183I02 AA59126/183I02
1169-37M-0514Z
1169-37M-0514Z
1169-37M-0514Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Yellow M55155/094B04 AA59126/094B04
1114-08M-09517Z
1114-08M-09517Z
1114-08M-09517Z
0.310" - Press Fit 3/32 0.108 PTFE Violet M55155/057C02 AA59126/057C02
1125-43M-08811Z
1125-43M-08811Z
1125-43M-08811Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Brown M55155/091D01 AA59126/091D01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
