Military
Insulated
Terminals

Filter
1127-69M-0516
1127-69M-0516
1127-69M-0516
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186H02 AA59126/186H02
1169-36M-09516
1169-36M-09516
1169-36M-09516
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Blue M55155/096I03 AA59126/096I03

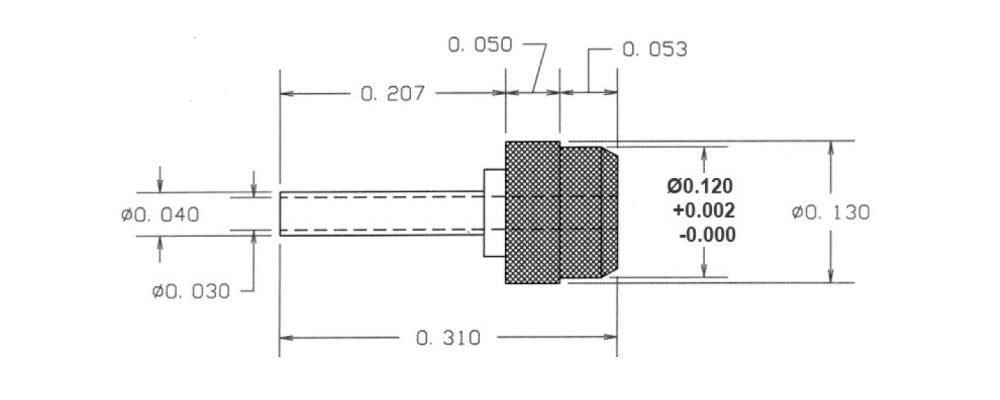

1114-08M-08819
1114-08M-08819
1114-08M-08819
0.310" - Press Fit 3/32 0.108 PTFE White M55155/059J02 AA59126/059J02

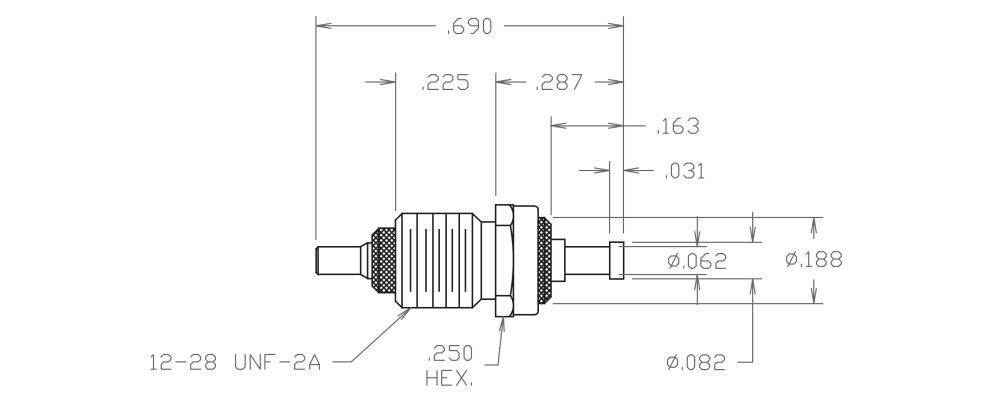

1117-01M-09517
1117-01M-09517
1117-01M-09517
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Violet M55155/027I01 AA59126/027I01

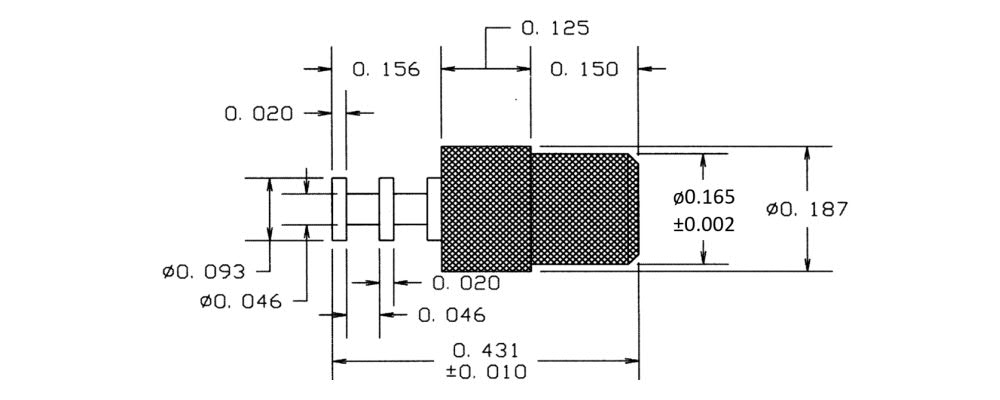

1102-31M-08816Z
1102-31M-08816Z
1102-31M-08816Z
0.431" - Press Fit 1/8 0.152 PTFE Blue M55155/076D02 AA59126/076D02

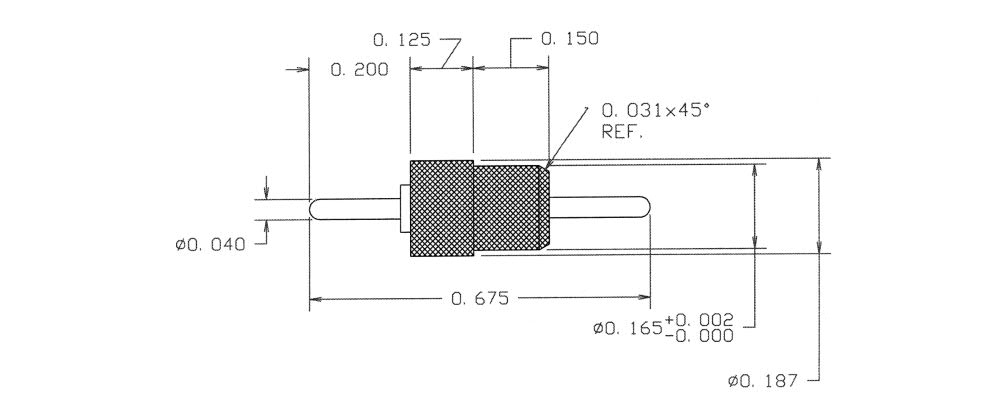

1110-40M-09514Z
1110-40M-09514Z
1110-40M-09514Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Yellow M55155/034C03 AA59126/034C03

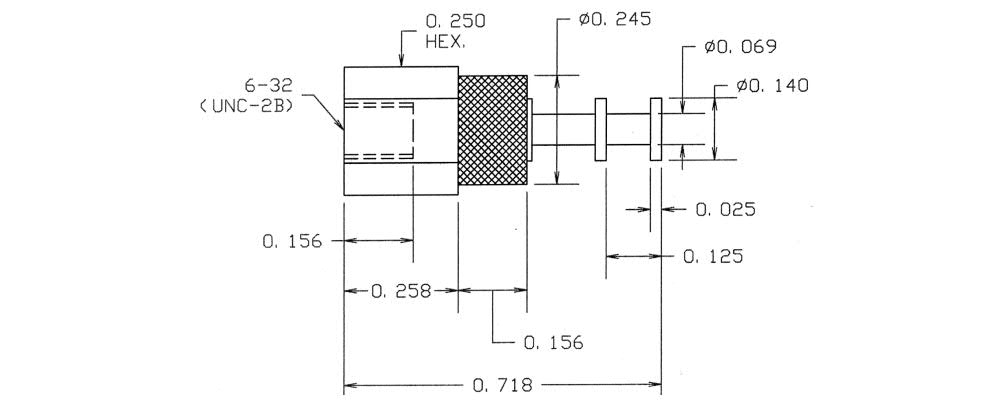

1125-46M-08817Z
1125-46M-08817Z
1125-46M-08817Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107D02 AA59126/107D02

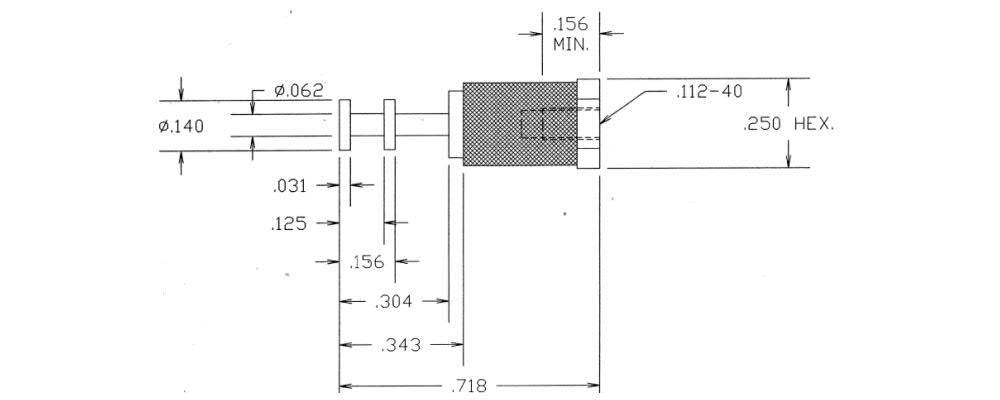

1127-04M-09515Z
1127-04M-09515Z
1127-04M-09515Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/205C01 AA59126/205C01
1127-69M-0517
1127-69M-0517
1127-69M-0517
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187H02 AA59126/187H02

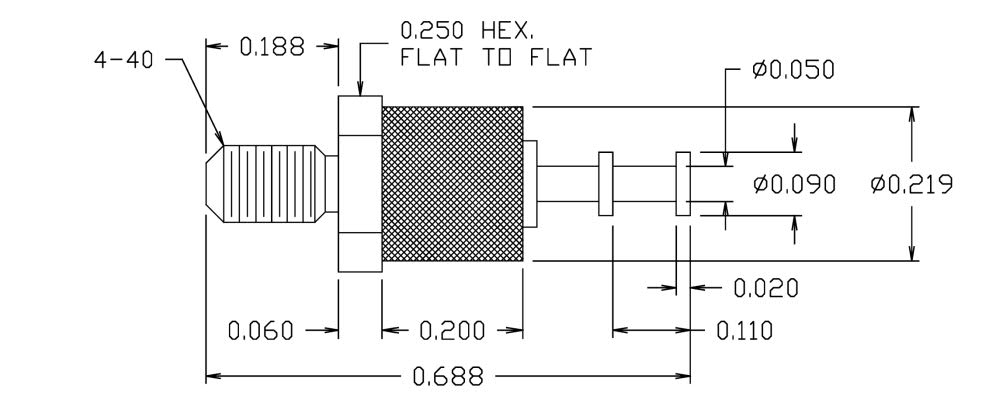

1169-36M-09516Z
1169-36M-09516Z
1169-36M-09516Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Blue M55155/096C03 AA59126/096C03
1114-08M-08819Z
1114-08M-08819Z
1114-08M-08819Z
0.310" - Press Fit 3/32 0.108 PTFE White M55155/059D02 AA59126/059D02
1117-01M-09517Z
1117-01M-09517Z
1117-01M-09517Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Violet M55155/027C01 AA59126/027C01
1102-31M-08817
1102-31M-08817
1102-31M-08817
0.431" - Press Fit 1/8 0.152 PTFE Violet M55155/077J02 AA59126/077J02
1110-40M-09515
1110-40M-09515
1110-40M-09515
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Green M55155/035I03 AA59126/035I03
1125-46M-08818
1125-46M-08818
1125-46M-08818
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Gray M55155/108J02 AA59126/108J02
1127-04M-09516
1127-04M-09516
1127-04M-09516
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206I01 AA59126/206I01
1127-69M-0518
1127-69M-0518
1127-69M-0518
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188H02 AA59126/188H02
1169-36M-09517
1169-36M-09517
1169-36M-09517
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Violet M55155/097I03 AA59126/097I03
1114-08M-09510
1114-08M-09510
1114-08M-09510
0.310" - Press Fit 3/32 0.108 PTFE Black M55155/050I02 AA59126/050I02
1117-01M-09518
1117-01M-09518
1117-01M-09518
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Gray M55155/028I01 AA59126/028I01
