Military
Insulated
Terminals

Filter
1102-31M-08817Z
1102-31M-08817Z
1102-31M-08817Z
0.431" - Press Fit 1/8 0.152 PTFE Violet M55155/077D02 AA59126/077D02
1110-40M-09515Z
1110-40M-09515Z
1110-40M-09515Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Green M55155/035C03 AA59126/035C03
1125-46M-08818Z
1125-46M-08818Z
1125-46M-08818Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Gray M55155/108D02 AA59126/108D02
1127-04M-09516Z
1127-04M-09516Z
1127-04M-09516Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206C01 AA59126/206C01

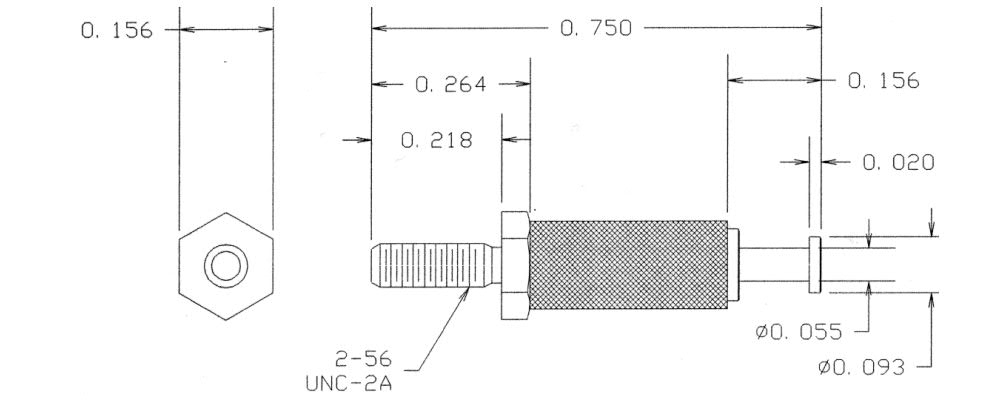

1127-69M-0519
1127-69M-0519
1127-69M-0519
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189H02 AA59126/189H02
1169-36M-09517Z
1169-36M-09517Z
1169-36M-09517Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Violet M55155/097C03 AA59126/097C03
1114-08M-09510Z
1114-08M-09510Z
1114-08M-09510Z
0.310" - Press Fit 3/32 0.108 PTFE Black M55155/050C02 AA59126/050C02
1117-01M-09518Z
1117-01M-09518Z
1117-01M-09518Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Gray M55155/028C01 AA59126/028C01
1102-31M-08818
1102-31M-08818
1102-31M-08818
0.431" - Press Fit 1/8 0.152 PTFE Gray M55155/078J02 AA59126/078J02
1110-40M-09516
1110-40M-09516
1110-40M-09516
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Blue M55155/036I03 AA59126/036I03
1125-46M-08819
1125-46M-08819
1125-46M-08819
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109J02 AA59126/109J02
1127-04M-09517
1127-04M-09517
1127-04M-09517
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207I01 AA59126/207I01
1127-69M-08810
1127-69M-08810
1127-69M-08810
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180J02 AA59126/180J02
1169-36M-09518
1169-36M-09518
1169-36M-09518
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Gray M55155/098I03 AA59126/098I03
1114-08M-09511
1114-08M-09511
1114-08M-09511
0.310" - Press Fit 3/32 0.108 PTFE Brown M55155/051I02 AA59126/051I02
1117-01M-09519
1117-01M-09519
1117-01M-09519
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE White M55155/029I01 AA59126/029I01
1102-31M-08818Z
1102-31M-08818Z
1102-31M-08818Z
0.431" - Press Fit 1/8 0.152 PTFE Gray M55155/078D02 AA59126/078D02
1110-40M-09516Z
1110-40M-09516Z
1110-40M-09516Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Blue M55155/036C03 AA59126/036C03
1125-46M-08819Z
1125-46M-08819Z
1125-46M-08819Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE White M55155/109D02 AA59126/109D02
1127-04M-09517Z
1127-04M-09517Z
1127-04M-09517Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207C01 AA59126/207C01
