Military
Insulated
Terminals

Filter
1102-31M-08815
1102-31M-08815
1102-31M-08815
0.431" - Press Fit 1/8 0.152 PTFE Green M55155/075J02 AA59126/075J02
1110-40M-09513
1110-40M-09513
1110-40M-09513
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Orange M55155/033I03 AA59126/033I03
1125-46M-08816
1125-46M-08816
1125-46M-08816
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Blue M55155/106J02 AA59126/106J02
1127-04M-09514
1127-04M-09514
1127-04M-09514
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204I01 AA59126/204I01

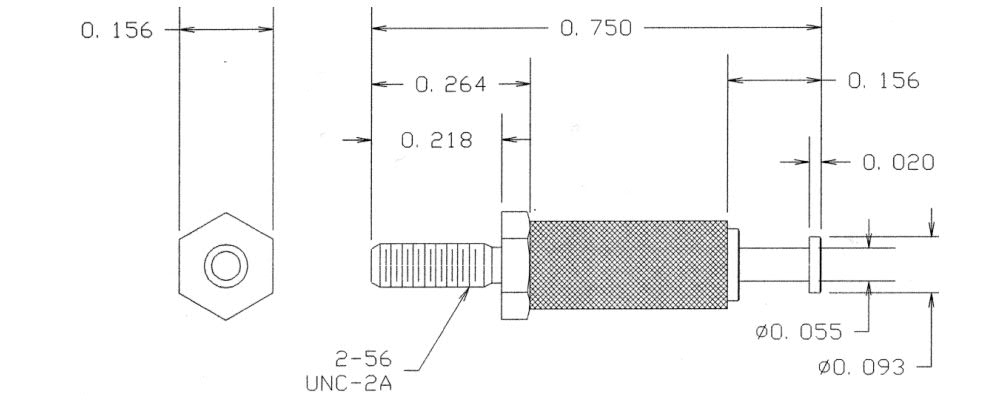

1127-69M-0514
1127-69M-0514
1127-69M-0514
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Yellow M55155/184H02 AA59126/184H02
1169-36M-09515
1169-36M-09515
1169-36M-09515
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Green M55155/095I03 AA59126/095I03
1114-08M-08818
1114-08M-08818
1114-08M-08818
0.310" - Press Fit 3/32 0.108 PTFE Gray M55155/058J02 AA59126/058J02
1117-01M-09516
1117-01M-09516
1117-01M-09516
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026I01 AA59126/026I01
1102-31M-08815Z
1102-31M-08815Z
1102-31M-08815Z
0.431" - Press Fit 1/8 0.152 PTFE Green M55155/075D02 AA59126/075D02
1110-40M-09513Z
1110-40M-09513Z
1110-40M-09513Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Orange M55155/033C03 AA59126/033C03
1125-46M-08816Z
1125-46M-08816Z
1125-46M-08816Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Blue M55155/106D02 AA59126/106D02
1127-04M-09514Z
1127-04M-09514Z
1127-04M-09514Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204C01 AA59126/204C01
1127-69M-0515
1127-69M-0515
1127-69M-0515
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Green M55155/185H02 AA59126/185H02
1169-36M-09515Z
1169-36M-09515Z
1169-36M-09515Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Green M55155/095C03 AA59126/095C03
1114-08M-08818Z
1114-08M-08818Z
1114-08M-08818Z
0.310" - Press Fit 3/32 0.108 PTFE Gray M55155/058D02 AA59126/058D02
1117-01M-09516Z
1117-01M-09516Z
1117-01M-09516Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026C01 AA59126/026C01
1102-31M-08816
1102-31M-08816
1102-31M-08816
0.431" - Press Fit 1/8 0.152 PTFE Blue M55155/076J02 AA59126/076J02
1110-40M-09514
1110-40M-09514
1110-40M-09514
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Yellow M55155/034I03 AA59126/034I03
1125-46M-08817
1125-46M-08817
1125-46M-08817
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107J02 AA59126/107J02
1127-04M-09515
1127-04M-09515
1127-04M-09515
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/205I01 AA59126/205I01
