Military
Insulated
Terminals

Filter
1102-31M-08812Z
1102-31M-08812Z
1102-31M-08812Z
0.431" - Press Fit 1/8 0.152 PTFE Red M55155/072D02 AA59126/072D02
1110-40M-09510Z
1110-40M-09510Z
1110-40M-09510Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Black M55155/030C03 AA59126/030C03
1125-46M-08813Z
1125-46M-08813Z
1125-46M-08813Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Orange M55155/103D02 AA59126/103D02
1127-04M-09511Z
1127-04M-09511Z
1127-04M-09511Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201C01 AA59126/201C01
1127-68M-09519Z
1127-68M-09519Z
1127-68M-09519Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189C01 AA59126/189C01
1169-36M-09512Z
1169-36M-09512Z
1169-36M-09512Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Red M55155/092C03 AA59126/092C03
1114-08M-08815Z
1114-08M-08815Z
1114-08M-08815Z
0.310" - Press Fit 3/32 0.108 PTFE Green M55155/055D02 AA59126/055D02
1117-01M-09513Z
1117-01M-09513Z
1117-01M-09513Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Orange M55155/023C01 AA59126/023C01
1102-31M-08813
1102-31M-08813
1102-31M-08813
0.431" - Press Fit 1/8 0.152 PTFE Orange M55155/073J02 AA59126/073J02
1110-40M-09511
1110-40M-09511
1110-40M-09511
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Brown M55155/031I03 AA59126/031I03
1125-46M-08814
1125-46M-08814
1125-46M-08814
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Yellow M55155/104J02 AA59126/104J02
1127-04M-09512
1127-04M-09512
1127-04M-09512
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202I01 AA59126/202I01

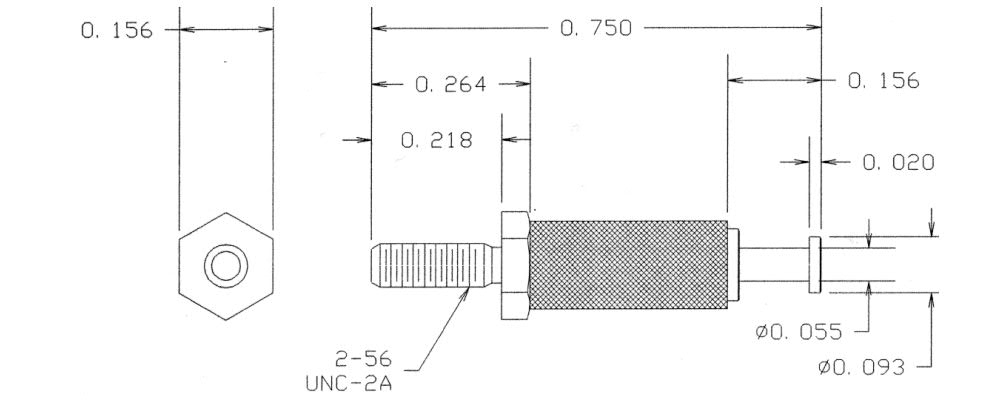

1127-69M-0510
1127-69M-0510
1127-69M-0510
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180H02 AA59126/180H02
1169-36M-09513
1169-36M-09513
1169-36M-09513
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Orange M55155/093I03 AA59126/093I03
1114-08M-08816
1114-08M-08816
1114-08M-08816
0.310" - Press Fit 3/32 0.108 PTFE Blue M55155/056J02 AA59126/056J02
1117-01M-09514
1117-01M-09514
1117-01M-09514
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Yellow M55155/024I01 AA59126/024I01
1102-31M-08813Z
1102-31M-08813Z
1102-31M-08813Z
0.431" - Press Fit 1/8 0.152 PTFE Orange M55155/073D02 AA59126/073D02
1110-40M-09511Z
1110-40M-09511Z
1110-40M-09511Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Brown M55155/031C03 AA59126/031C03
1125-46M-08814Z
1125-46M-08814Z
1125-46M-08814Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Yellow M55155/104D02 AA59126/104D02
1127-04M-09512Z
1127-04M-09512Z
1127-04M-09512Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202C01 AA59126/202C01
