Commercial
Non-Insulated
Terminals

Filter
10-103-1-095
10-103-1-095
10-103-1-095
0.312" - - Swage Mount 0.078" 1/32 0.116 Brass Hot Solder Dip NO
10-109-3-04
10-109-3-04
10-109-3-04
0.284" - - Swage Mount 0.125" 3/32 0.094 Brass Electro-Tin YES

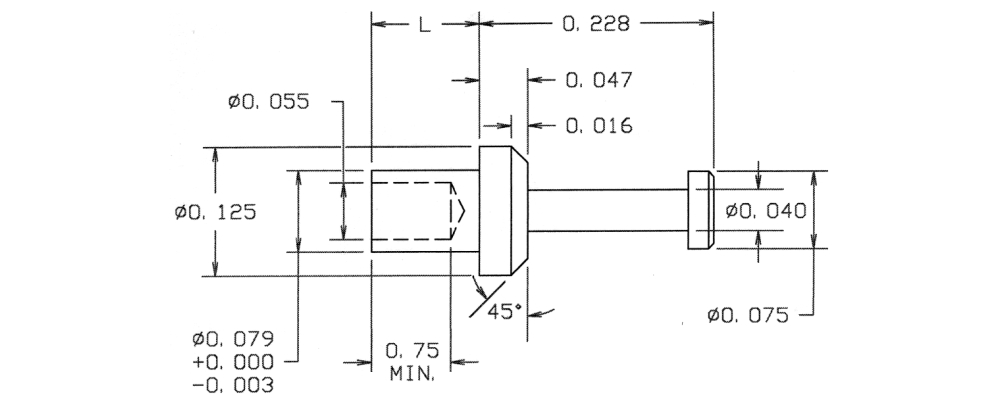

10-119-4-095
10-119-4-095
10-119-4-095
0.393" - - Swage Mount 0.165" 1/8 0.082 Brass Hot Solder Dip NO
10-201-2-035
10-201-2-035
10-201-2-035
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Gold YES

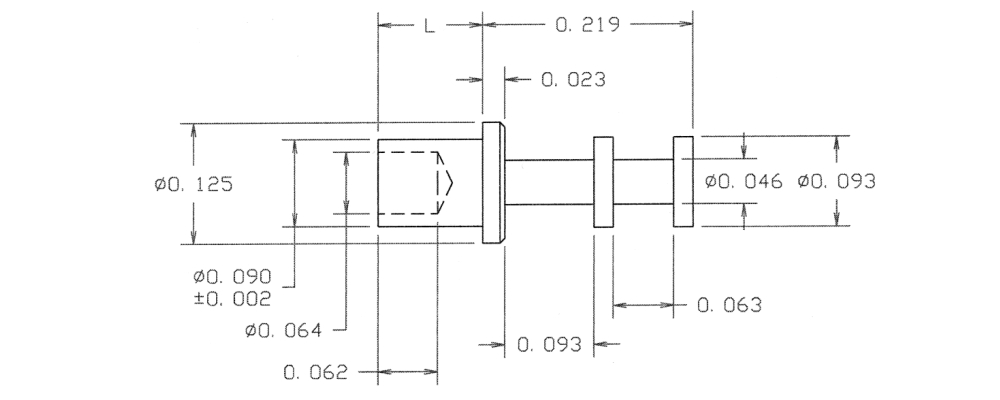

10-209-4-03
10-209-4-03
10-209-4-03
0.391" - - Swage Mount 0.172" 1/8 0.094 Brass Gold YES
10-216-2-05
10-216-2-05
10-216-2-05
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO

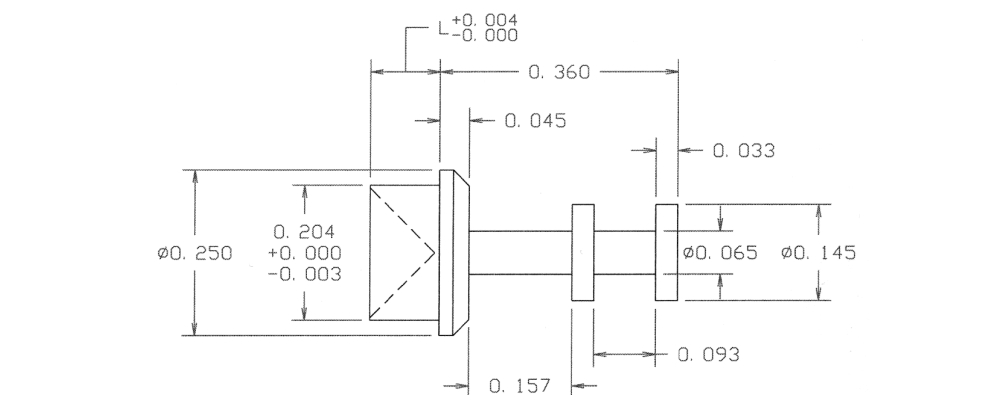

10-226-1-095
10-226-1-095
10-226-1-095
0.435" - - Swage Mount 0.075" 1/32 0.206 Brass Hot Solder Dip NO
10-240-5-04
10-240-5-04
10-240-5-04
0.555" - - Swage Mount 0.195" 5/32 0.116 Brass Electro-Tin YES
10-302-2-03
10-302-2-03
10-302-2-03
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Gold YES
10-310-4-03
10-310-4-03
10-310-4-03
0.368" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-320-2-05
10-320-2-05
10-320-2-05
0.295" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO
10-337-4-035
10-337-4-035
10-337-4-035
0.594" - - Swage Mount 0.172" 1/8 0.125 Brass Gold YES

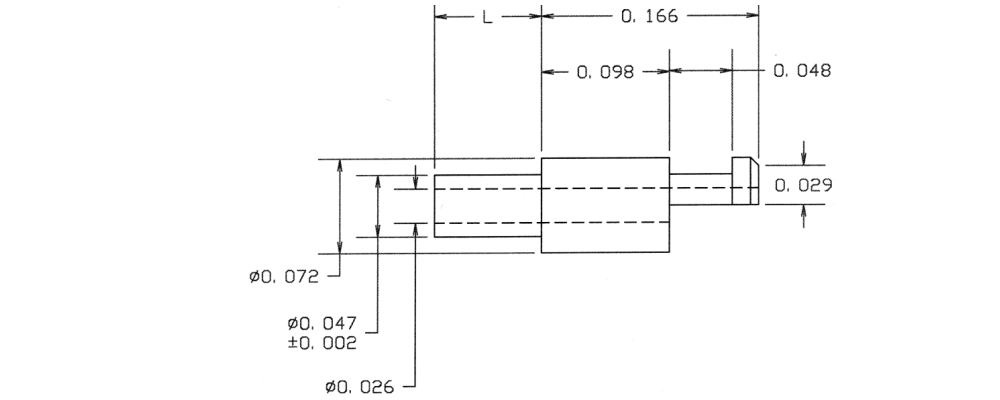

10-415-1-088
10-415-1-088
10-415-1-088
0.217" - - Swage Mount 0.051" 1/32 0.052 Brass Bright Tin-Lead NO

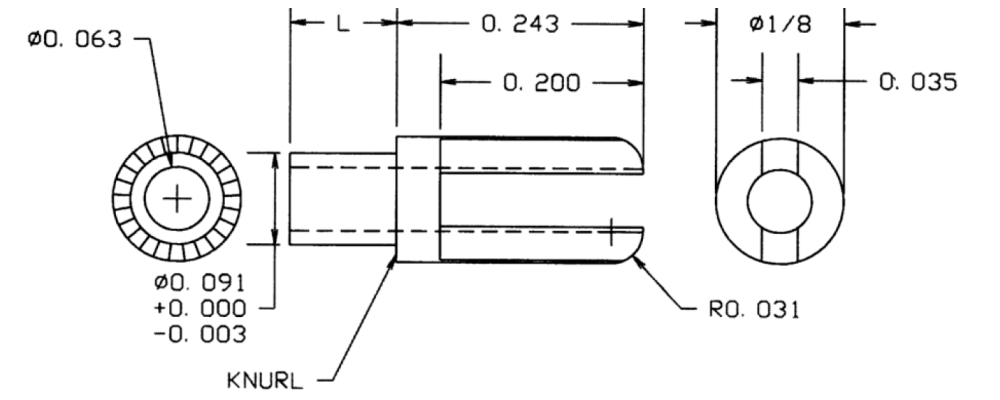

10-423-1-01
10-423-1-01
10-423-1-01
0.318" - - Swage Mount 0.075" 1/32 0.094 Brass Silver YES
10-441-6-01
10-441-6-01
10-441-6-01
0.574" - - Swage Mount 0.230" 3/16 0.1405 Brass Silver YES
10-458-3-044
10-458-3-044
10-458-3-044
0.313" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin YES
10-468-3-05
10-468-3-05
10-468-3-05
0.374" - - Swage Mount 0.135" 3/32 0.094 Brass Electro Solder NO
10-501-4A-01
10-501-4A-01
10-501-4A-01
0.356" - Turret/Turret Swage Mount 0.170" 1/8 0.076 Brass Silver YES

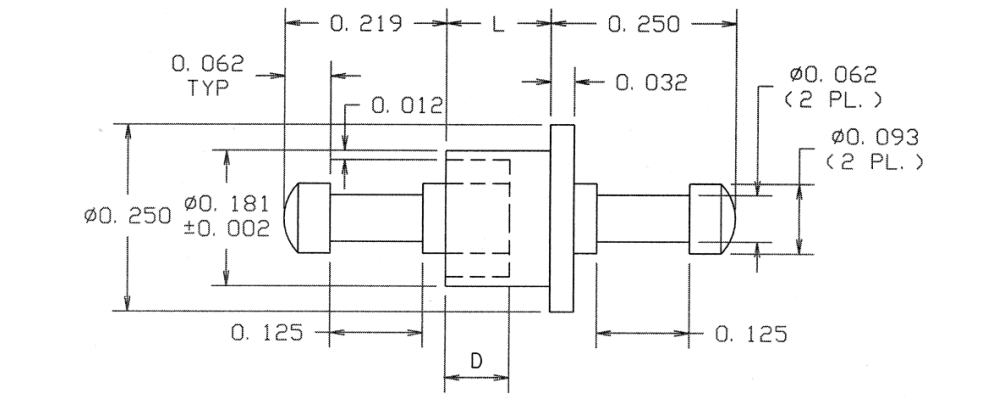

10-507-6-01
10-507-6-01
10-507-6-01
0.703" - Turret/Turret Swage Mount 0.234" 3/16 0.185 Brass Silver YES
10-513-4-01
10-513-4-01
10-513-4-01
0.484" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.129 Brass Silver YES
