Commercial
Non-Insulated
Terminals

Filter
09-8067-2-01
09-8067-2-01
09-8067-2-01
0.802" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
10-549-4-01
10-549-4-01
10-549-4-01
0.844" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.206 Brass Silver YES
10-418-3-01
10-418-3-01
10-418-3-01
0.666" - Turret/Turret Swage Mount 0.135" 3/32 0.120 Brass Silver YES

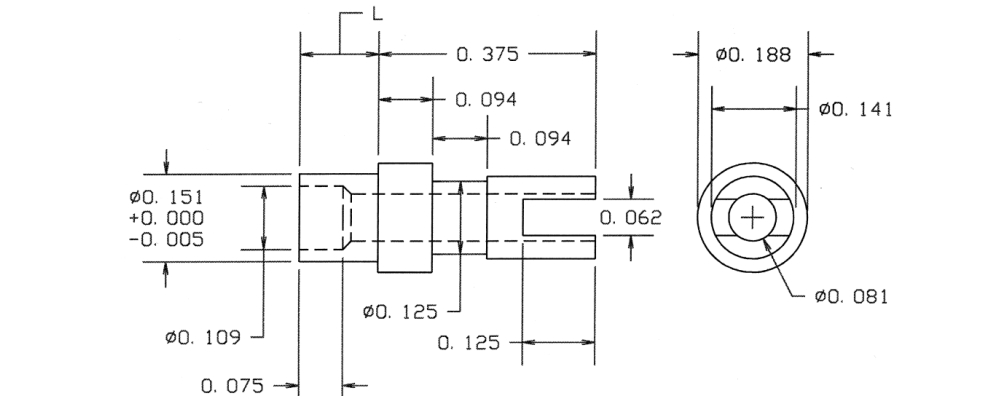

10-470-3-01
10-470-3-01
10-470-3-01
0.510" - - Swage Mount 0.135" 3/32 0.154 Brass Silver YES
10-439-5-01
10-439-5-01
10-439-5-01
0.676" - - Swage Mount 0.195" 5/32 0.1875 Brass Silver YES
10-507-2-01
10-507-2-01
10-507-2-01
0.578" - Turret/Turret Swage Mount 0.109" 1/16 0.185 Brass Silver YES
10-839-4-01
10-839-4-01
10-839-4-01
0.875" 0.050 Pin/Pin Swage Mount 0.156" 1/8 0.111 Brass Silver YES
09-8631-2-01
09-8631-2-01
09-8631-2-01
0.735" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Silver YES
09-0072-1-01
09-0072-1-01
09-0072-1-01
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Silver YES
10-104-1-01
10-104-1-01
10-104-1-01
0.145" - - Swage Mount 0.051" 1/32 0.052 Brass Silver YES
09-0180-1-01
09-0180-1-01
09-0180-1-01
0.289" - - Swage Mount 0.062" 1/32 0.062 Brass Silver YES
10-806-1-01
10-806-1-01
10-806-1-01
0.505" - - Swage Mount 0.078" 1/32 0.094 Brass Silver YES
10-861-3-01
10-861-3-01
10-861-3-01
0.297" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Silver YES
10-615-4-01
10-615-4-01
10-615-4-01
0.505" - - Swage Mount 0.165" 1/8 0.090 Brass Silver YES
10-315-2-01
10-315-2-01
10-315-2-01
0.433" - - Swage Mount 0.105" 1/16 0.082 Brass Silver YES
10-938-1-03
10-938-1-03
10-938-1-03
0.385" 0.038 - Swage Mount 0.060" 1/32 0.042 Brass Gold YES
09-0259-1-01
09-0259-1-01
09-0259-1-01
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Silver YES
10-858-4-01
10-858-4-01
10-858-4-01
0.625" 0.040 Pin/Pin Swage Mount 0.156" 1/8 0.094 Brass Silver YES
10-857-4-01
10-857-4-01
10-857-4-01
0.484" 0.040 Pin/Pin Swage Mount 0.156" 1/8 0.094 Brass Silver YES
10-821-4-01
10-821-4-01
10-821-4-01
0.498" 0.040 Pin/Pin Swage Mount 0.165" 1/8 0.094 Brass Silver YES
