Commercial
Non-Insulated
Terminals

Filter

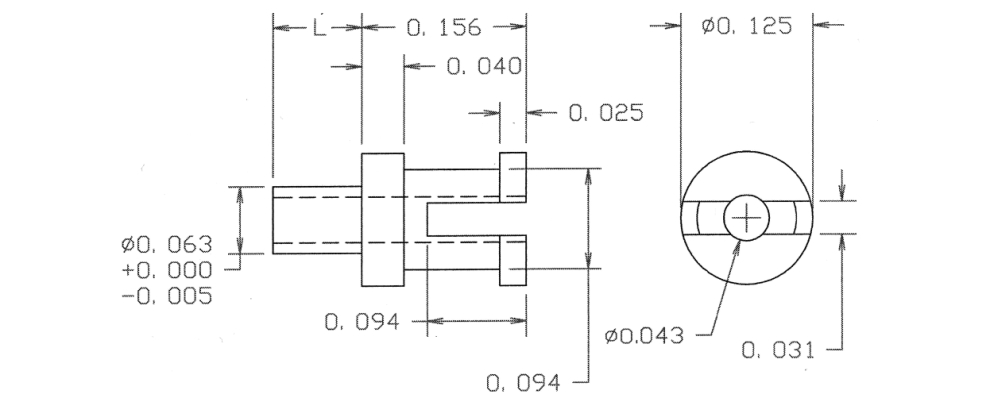

10-430-4-044
10-430-4-044
10-430-4-044
0.303" - - Swage Mount 0.147" 1/8 0.064 Brass Bright Tin YES

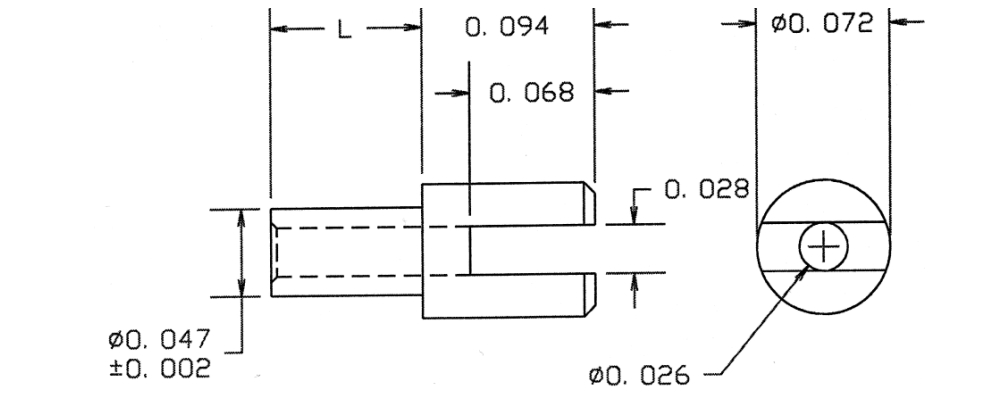

10-453-6-03
10-453-6-03
10-453-6-03
0.301" - - Swage Mount 0.207" 3/16 0.052 Brass Gold YES

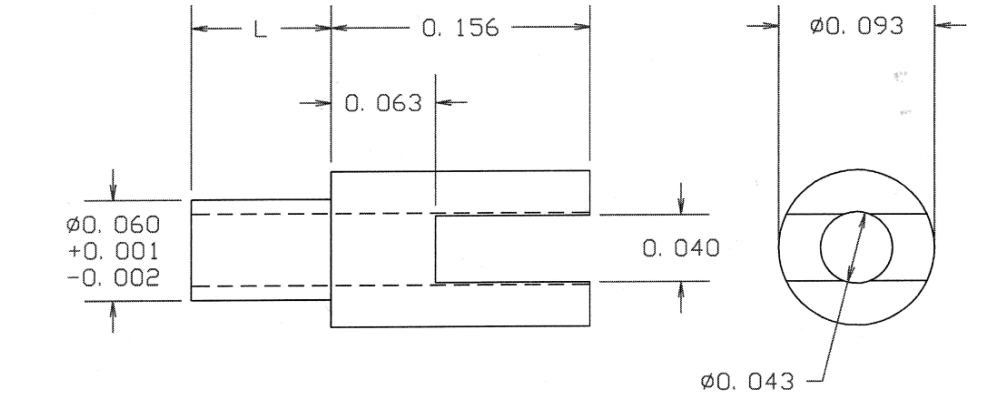

10-477-4-05
10-477-4-05
10-477-4-05
0.303" - - Swage Mount 0.147" 1/8 0.063 Brass Electro Solder NO

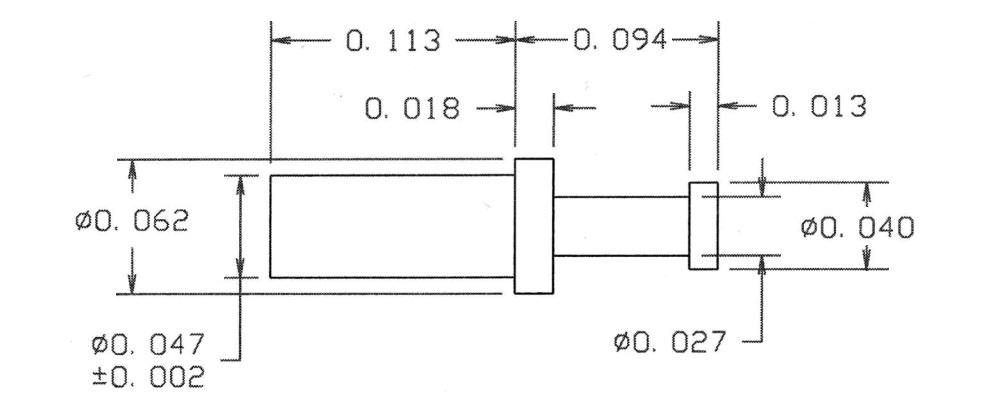

09-0012-3-03
09-0012-3-03
09-0012-3-03
0.207" - - Solder 0.113" 3/32 0.052 Beryllium Copper Gold YES

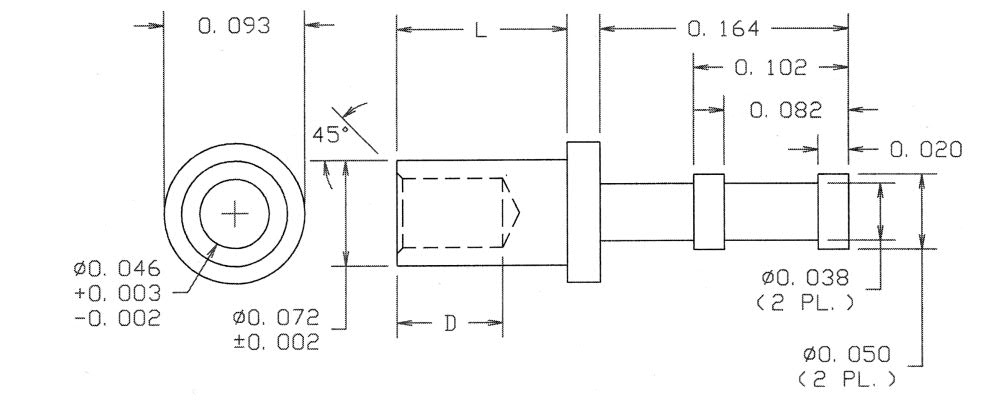

09-0067-4-095
09-0067-4-095
09-0067-4-095
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Hot Solder Dip NO

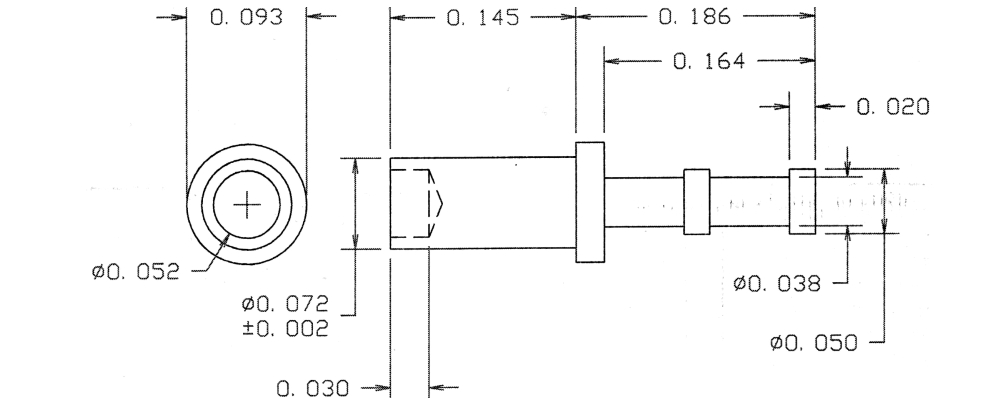

09-0155-4-03
09-0155-4-03
09-0155-4-03
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Gold YES
09-0185-1-088
09-0185-1-088
09-0185-1-088
0.438" - - 4-40 - - 4-40 THREAD Brass Bright Tin-Lead NO

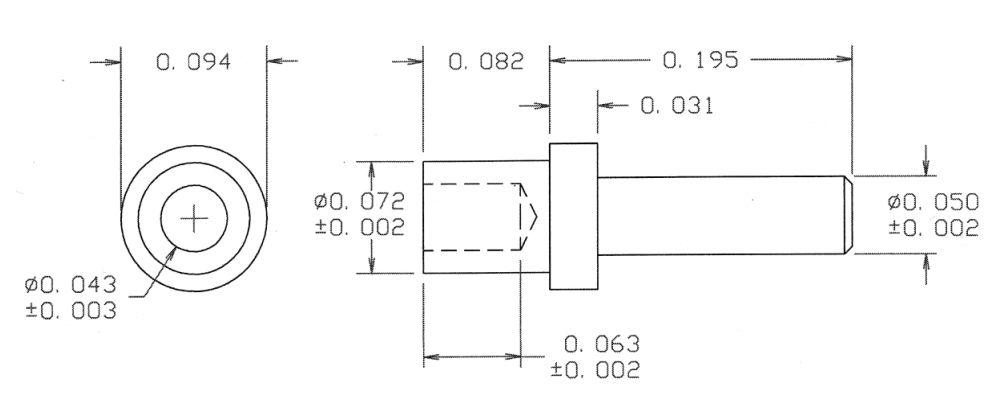

09-0233-2-05
09-0233-2-05
09-0233-2-05
0.277" 0.050 - Swage Mount 0.082" 1/16 0.076 Brass Electro Solder NO

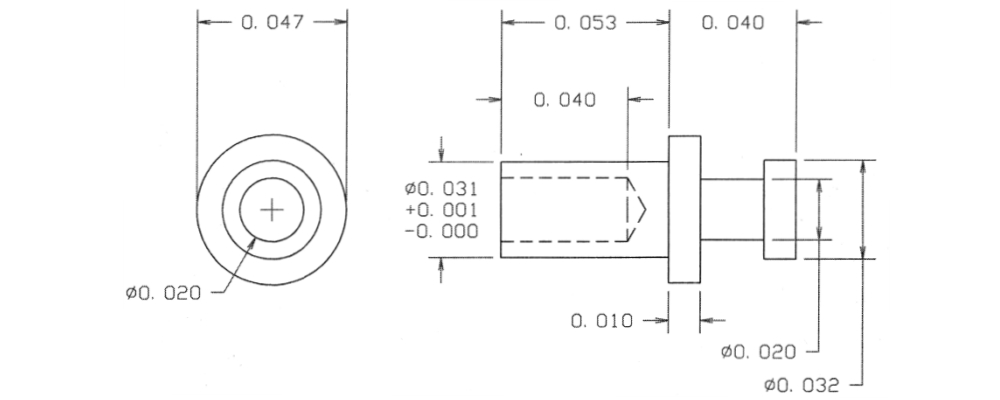

09-0274-1-04
09-0274-1-04
09-0274-1-04
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Electro-Tin YES

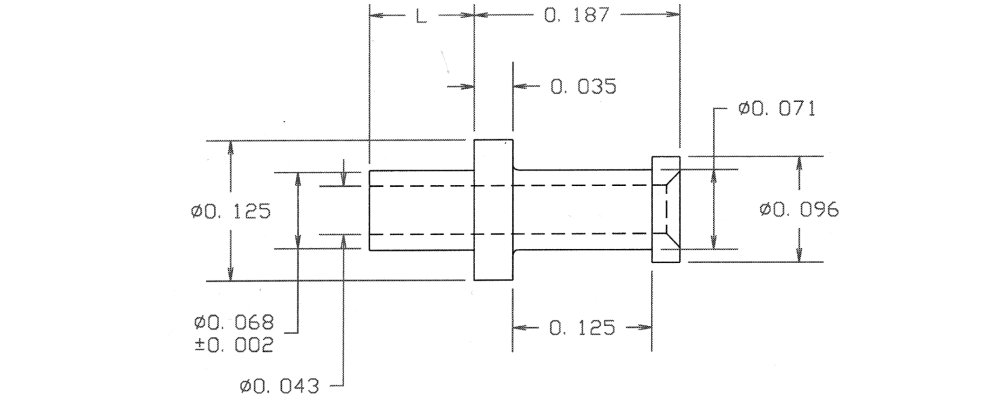

09-0342-2-035
09-0342-2-035
09-0342-2-035
0.281" - - Swage Mount 0.094" 1/16 0.073 Brass Gold YES

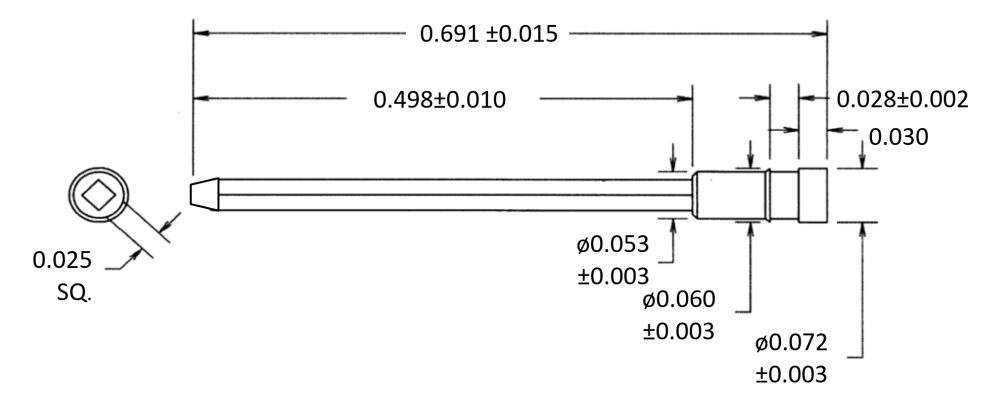

09-6032-1-05
09-6032-1-05
09-6032-1-05
0.691" 0.025 SQ. - Press Fit/Solder 0.163" 3/32 0.052 Brass Electro Solder NO

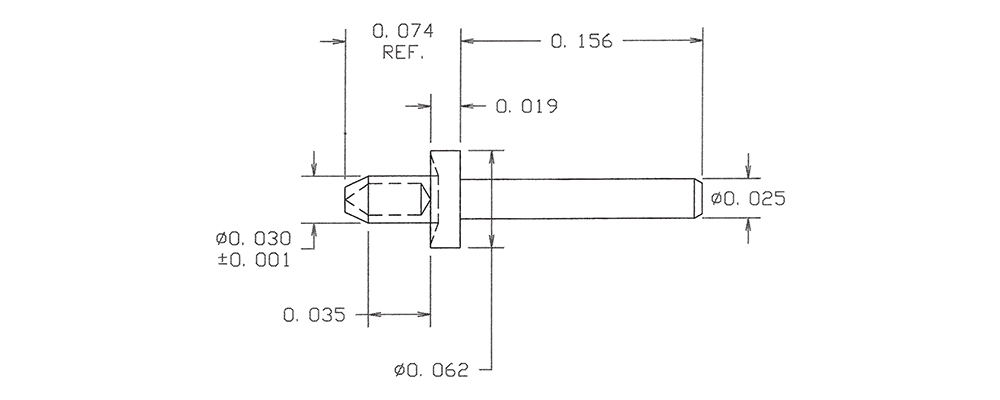

09-7107-1A-03
09-7107-1A-03
09-7107-1A-03
0.230" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Gold YES

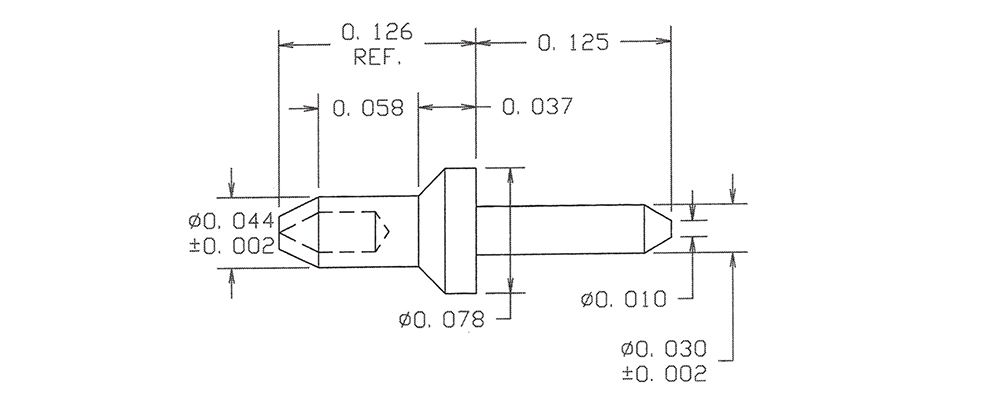

09-7145-1-05
09-7145-1-05
09-7145-1-05
0.251" 0.030 - RIVET MOUNT 0.058" 1/32 0.048 Brass Electro Solder NO

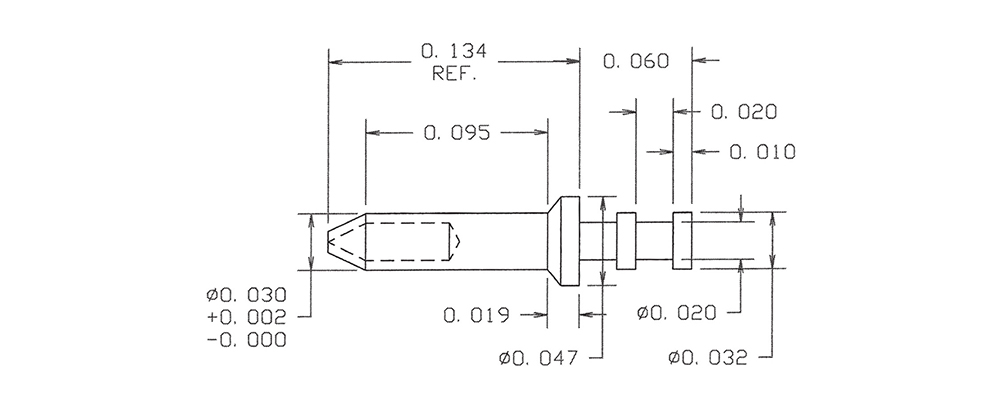

09-7170-2B-035
09-7170-2B-035
09-7170-2B-035
0.194" - - RIVET MOUNT 0.095" 19/256 0.035 Brass Gold YES

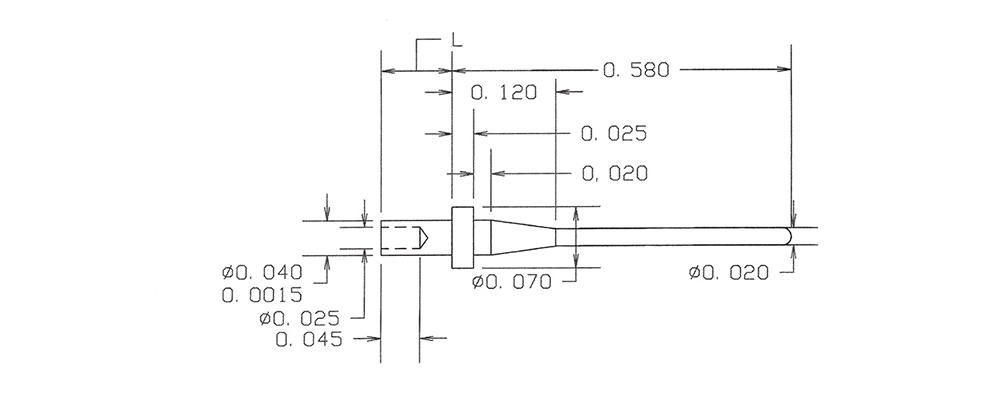

09-8012-1-088
09-8012-1-088
09-8012-1-088
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

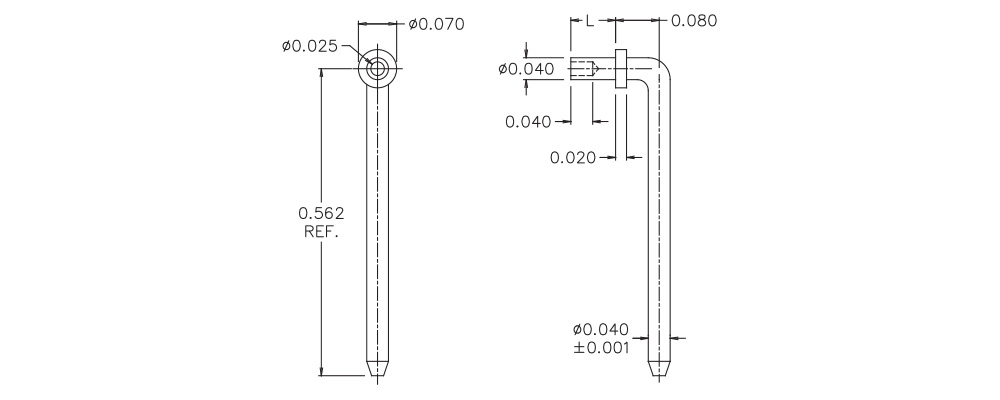

09-8048-1-04
09-8048-1-04
09-8048-1-04
0.597" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

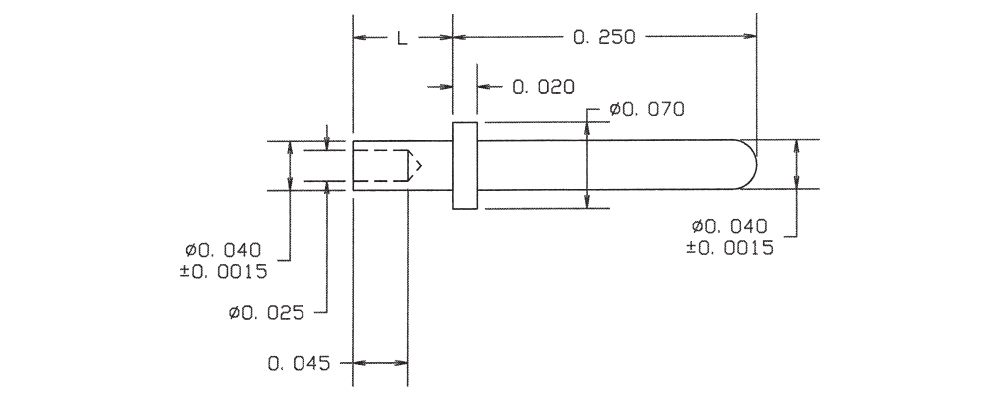

09-8084-2-088
09-8084-2-088
09-8084-2-088
0.332" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

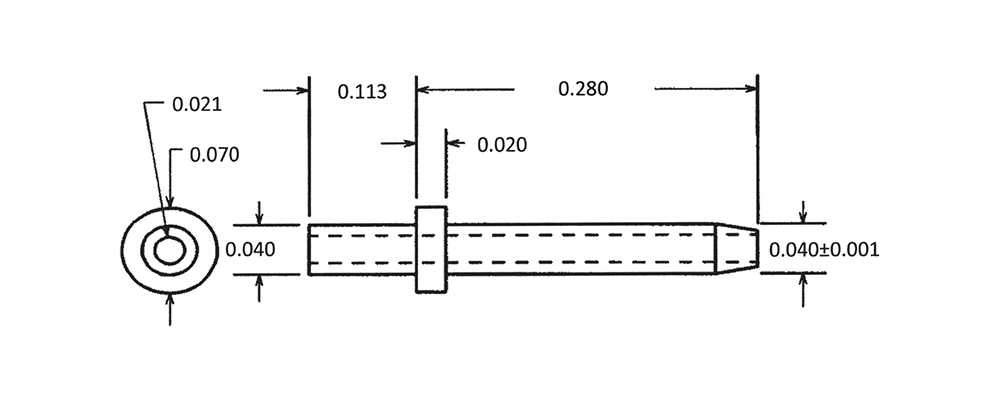

09-8144-3-04
09-8144-3-04
09-8144-3-04
0.393" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES

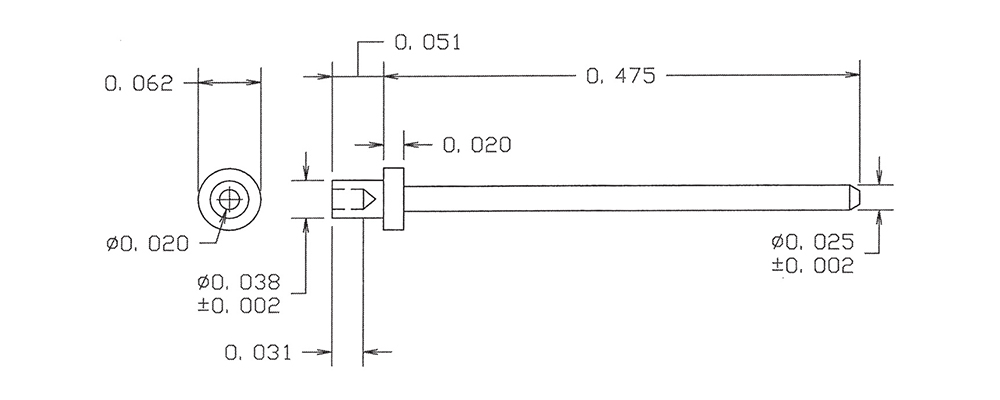

09-8175-1-01
09-8175-1-01
09-8175-1-01
0.526" 0.025 - Swage Mount 0.051" 1/32 0.042 Brass Silver YES

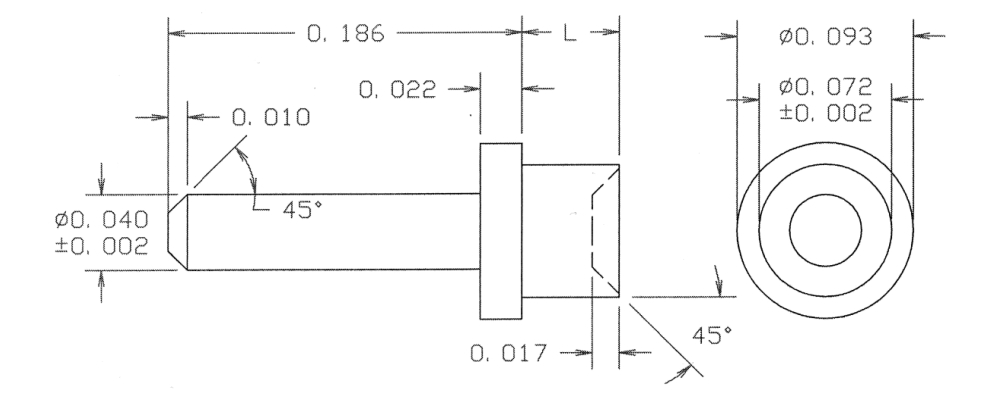

09-8311-1-01
09-8311-1-01
09-8311-1-01
0.237" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Silver YES
