Commercial
Non-Insulated
Terminals

Filter

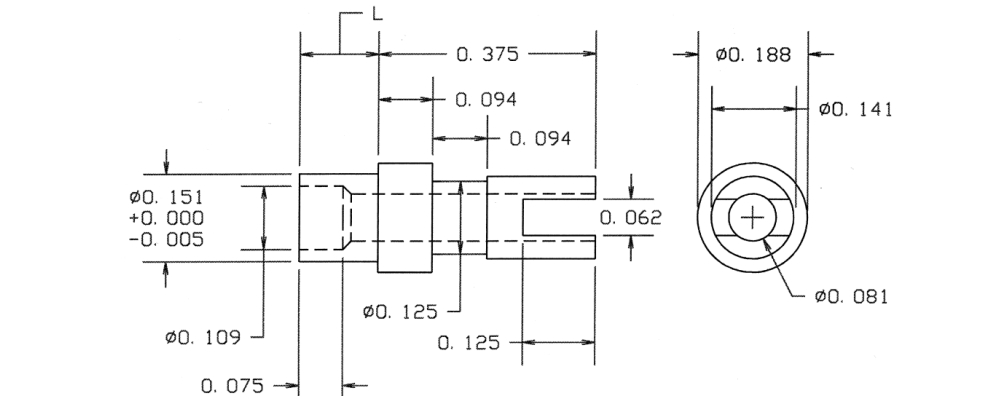

10-470-4-01
10-470-4-01
10-470-4-01
0.540" - - Swage Mount 0.165" 1/8 0.154 Brass Silver YES
10-502-6-01
10-502-6-01
10-502-6-01
0.475" - TURRET/DOUBLE TURRET Swage Mount 0.207" 3/16 0.076 Brass Silver YES

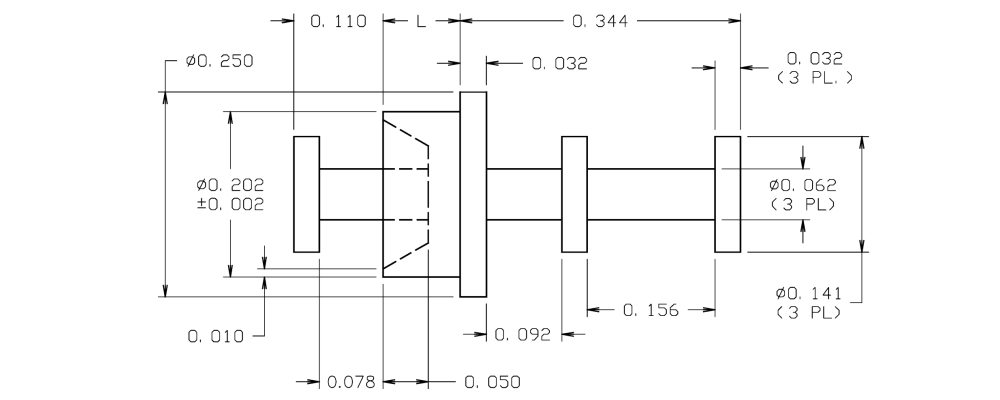

10-508-4A-01
10-508-4A-01
10-508-4A-01
0.609" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Silver YES
10-515-2-01
10-515-2-01
10-515-2-01
0.871" 0.094 TURRET/PIN Swage Mount 0.105" 1/16 0.185 Brass Silver YES
10-526-3-01
10-526-3-01
10-526-3-01
0.656" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.206 Brass Silver YES
10-544-2-01
10-544-2-01
10-544-2-01
0.335" - Turret/Turret Swage Mount 0.094" 1/16 0.094 Brass Silver YES
10-562-3-01
10-562-3-01
10-562-3-01
0.603" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.159 Brass Silver YES
10-606-2-044
10-606-2-044
10-606-2-044
0.421" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES

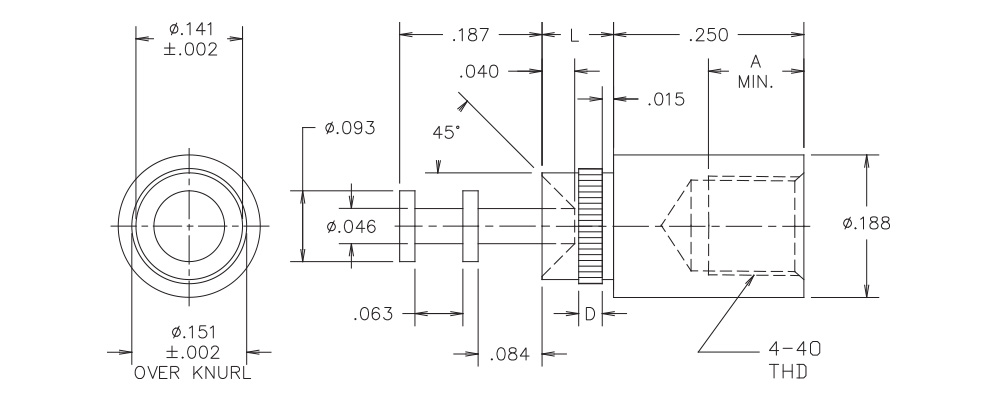

10-710-8-044
10-710-8-044
10-710-8-044
0.722" - DOUBLE TURRET/THREAD Swage Mount 0.285" 1/4 0.144 Brass Bright Tin YES
10-8015-1-044
10-8015-1-044
10-8015-1-044
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES
10-8025-1-035
10-8025-1-035
10-8025-1-035
0.348" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Gold YES
10-808-1-04
10-808-1-04
10-808-1-04
0.549" - - Swage Mount 0.078" 1/32 0.094 Brass Electro-Tin YES
10-815-1-03
10-815-1-03
10-815-1-03
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Gold YES

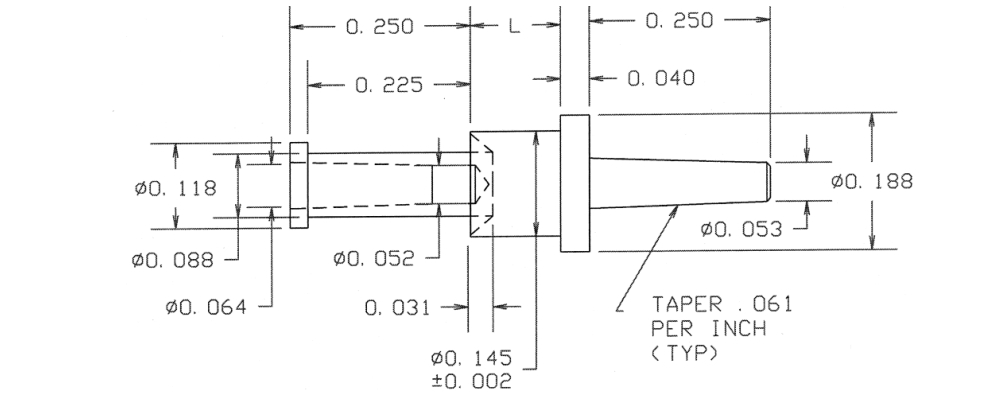

10-824-6-044
10-824-6-044
10-824-6-044
0.759" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.219" 3/16 0.147 Brass Bright Tin YES
10-834-6-04
10-834-6-04
10-834-6-04
0.594" 0.050 - Swage Mount 0.219" 3/16 0.064 Brass Electro-Tin YES
10-846-1-01
10-846-1-01
10-846-1-01
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Silver YES

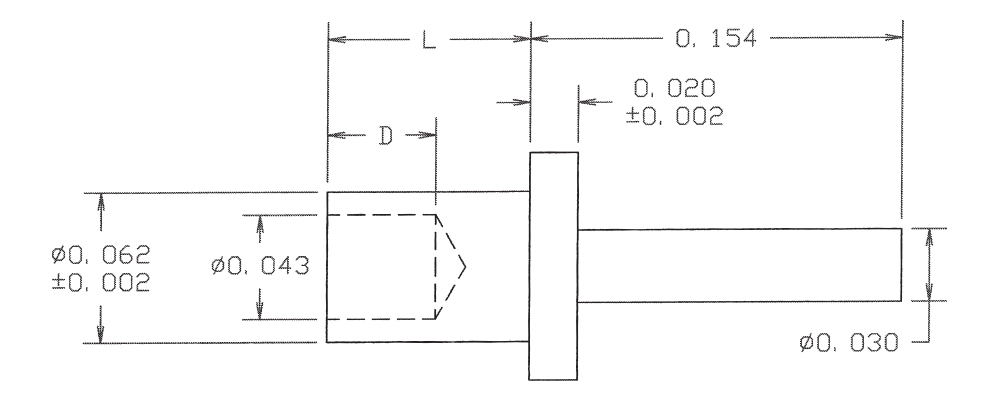

10-867-4-044
10-867-4-044
10-867-4-044
0.301" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin YES

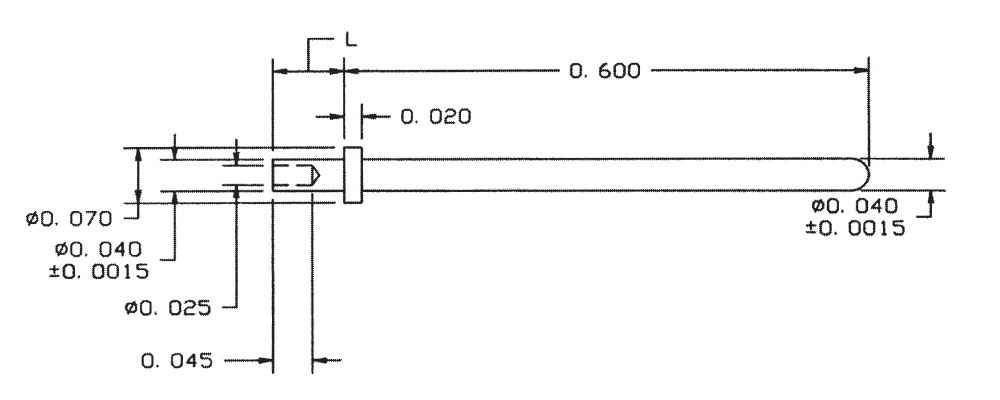

10-892-1-035
10-892-1-035
10-892-1-035
0.651" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

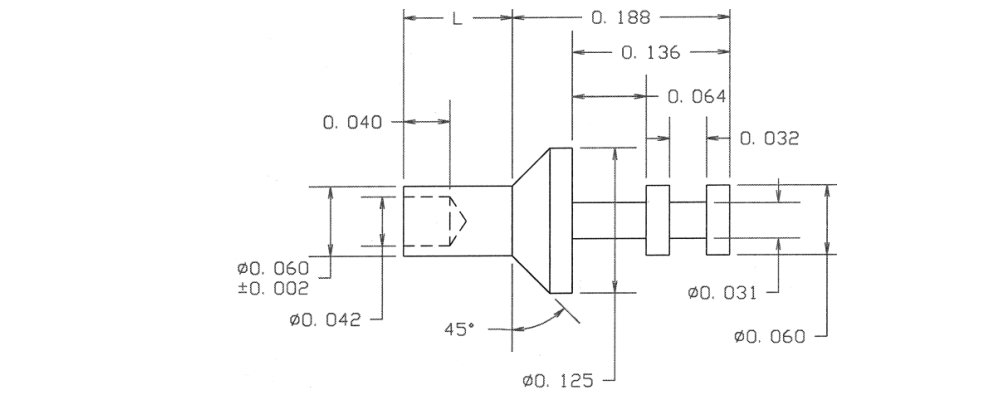

10-905-3-035
10-905-3-035
10-905-3-035
0.313" - - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES

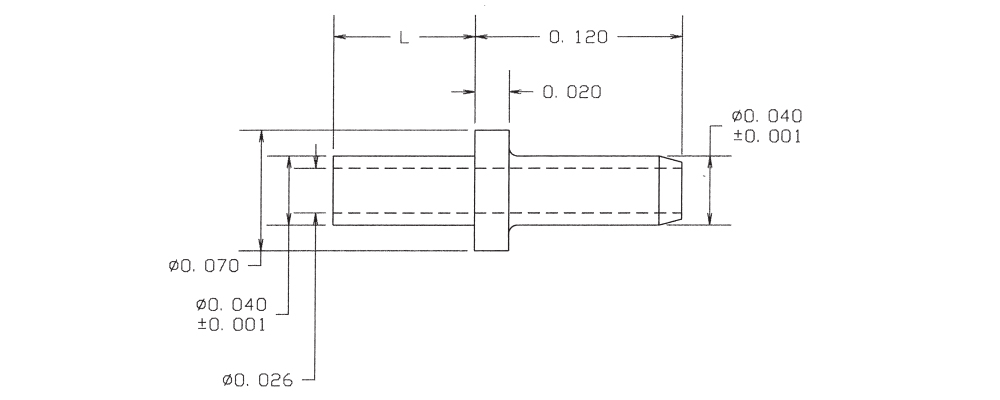

10-920-3-01
10-920-3-01
10-920-3-01
0.233" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES
