Commercial
Non-Insulated
Terminals

Filter

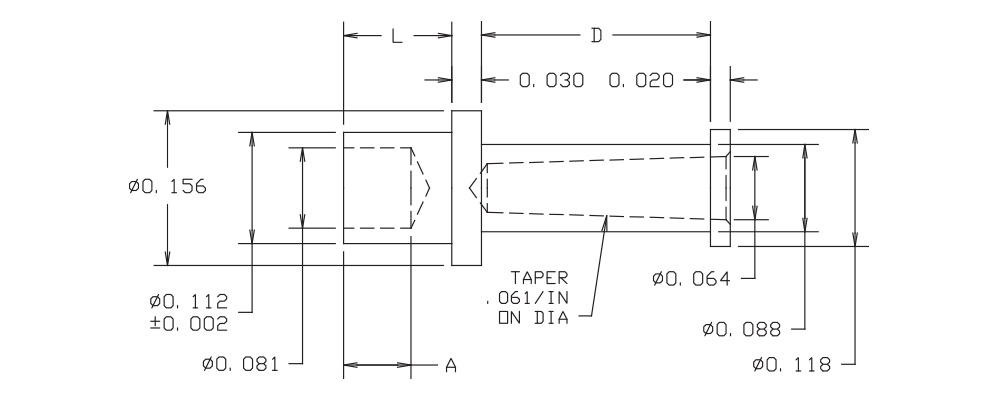

10-814-8-05
10-814-8-05
10-814-8-05
0.547" - - Swage Mount 0.297" 1/4 0.116 Brass Electro Solder NO

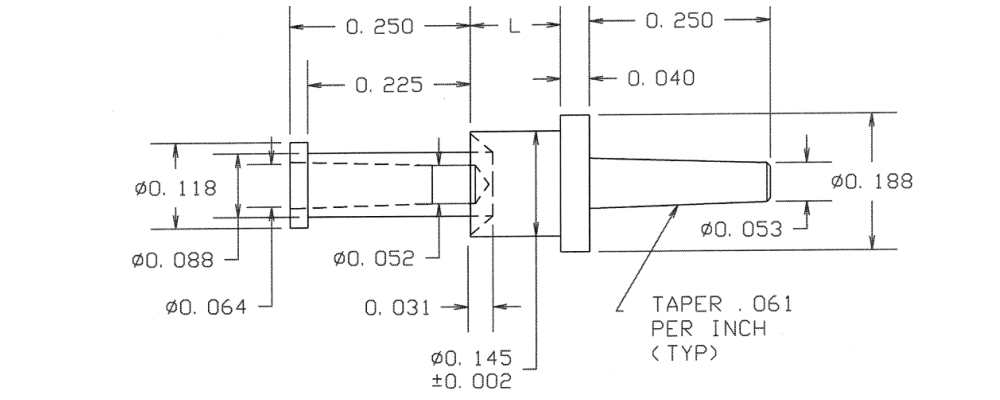

10-824-6-03
10-824-6-03
10-824-6-03
0.759" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.219" 3/16 0.147 Brass Gold YES

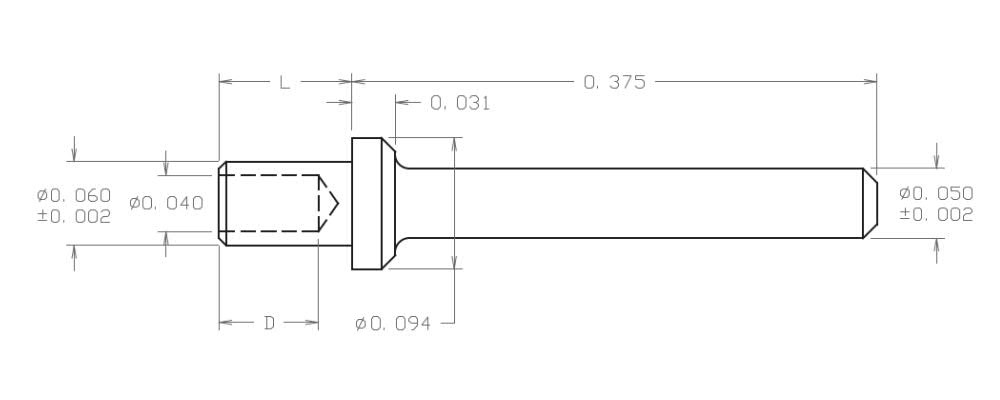

10-834-6-01
10-834-6-01
10-834-6-01
0.594" 0.050 - Swage Mount 0.219" 3/16 0.064 Brass Silver YES
10-845-6-044
10-845-6-044
10-845-6-044
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Bright Tin YES

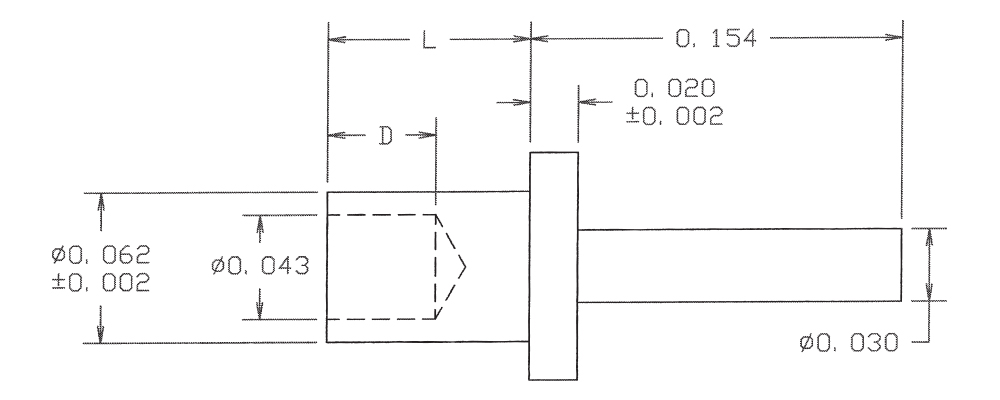

10-867-4-03
10-867-4-03
10-867-4-03
0.301" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Gold YES

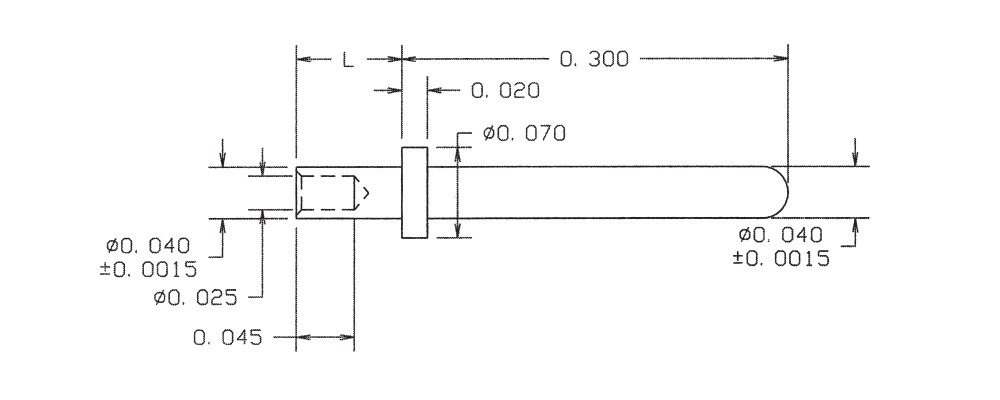

10-891-2-088
10-891-2-088
10-891-2-088
0.382" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

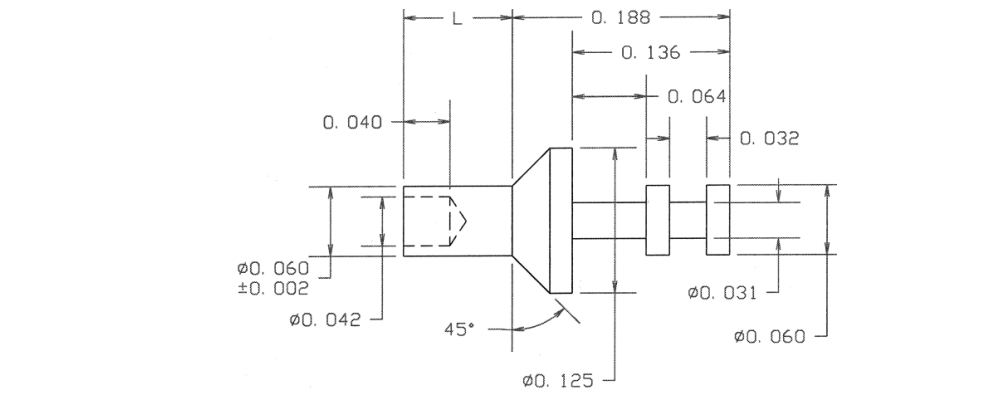

10-905-2-095
10-905-2-095
10-905-2-095
0.282" - - Swage Mount 0.094" 1/16 0.0635 Brass Hot Solder Dip NO

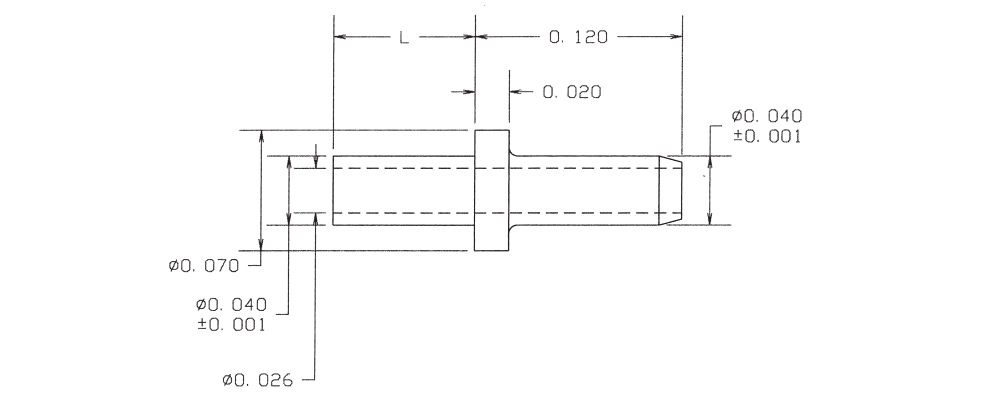

10-920-2-044
10-920-2-044
10-920-2-044
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

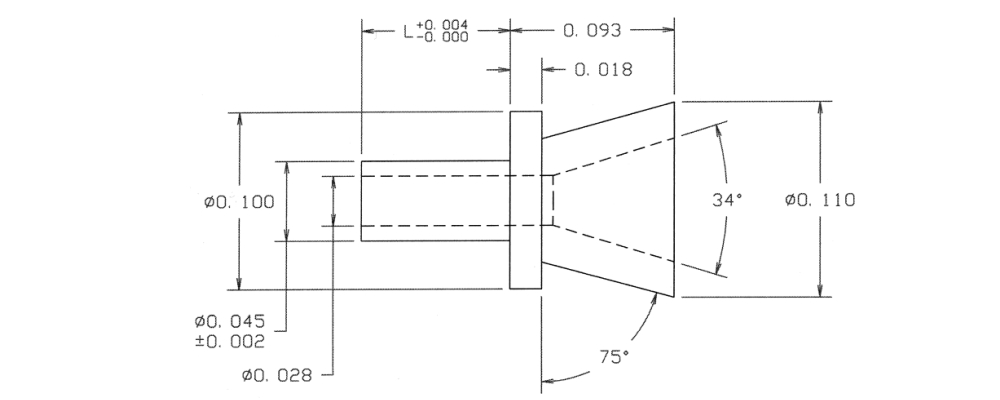

10-936-2-01
10-936-2-01
10-936-2-01
0.177" - - Swage Mount 0.084" 1/16 0.052 Brass Silver YES
14-345-3-03
14-345-3-03
14-345-3-03
0.462" - - Swage Mount 0.135" 3/32 0.116 LEADED Red Brass Gold YES
14-947-4-05
14-947-4-05
14-947-4-05
0.329" - - Swage Mount 0.156" 1/8 0.063 LEADED Red Brass Electro Solder NO
10-408-1-05
10-408-1-05
10-408-1-05
0.387" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
10-430-4-035
10-430-4-035
10-430-4-035
0.303" - - Swage Mount 0.147" 1/8 0.064 Brass Gold YES
10-453-4-088
10-453-4-088
10-453-4-088
0.239" - - Swage Mount 0.145" 1/8 0.052 Brass Bright Tin-Lead NO

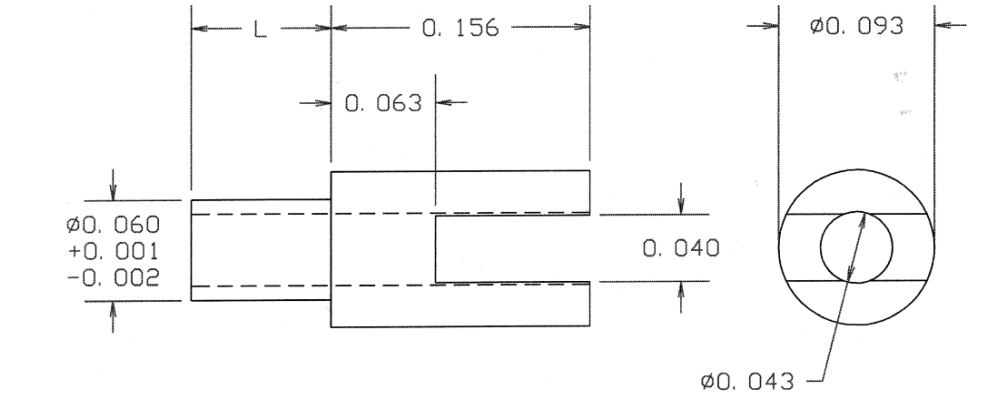

10-477-4-04
10-477-4-04
10-477-4-04
0.303" - - Swage Mount 0.147" 1/8 0.063 Brass Electro-Tin YES

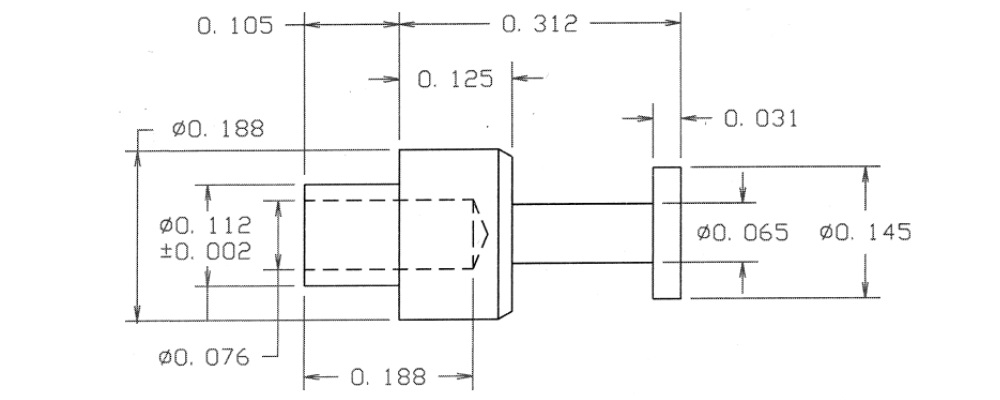

09-0011-2-095
09-0011-2-095
09-0011-2-095
0.417" - - Swage Mount 0.105" 1/16 0.116 Brass Hot Solder Dip NO

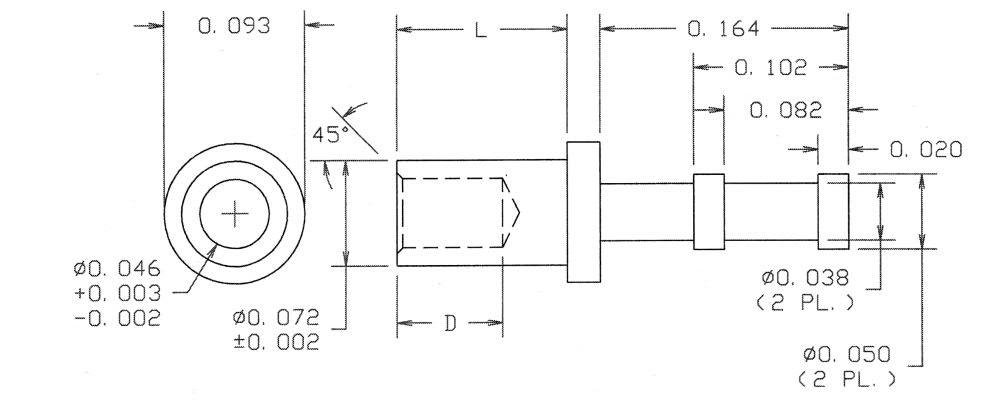

09-0067-4-05
09-0067-4-05
09-0067-4-05
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO

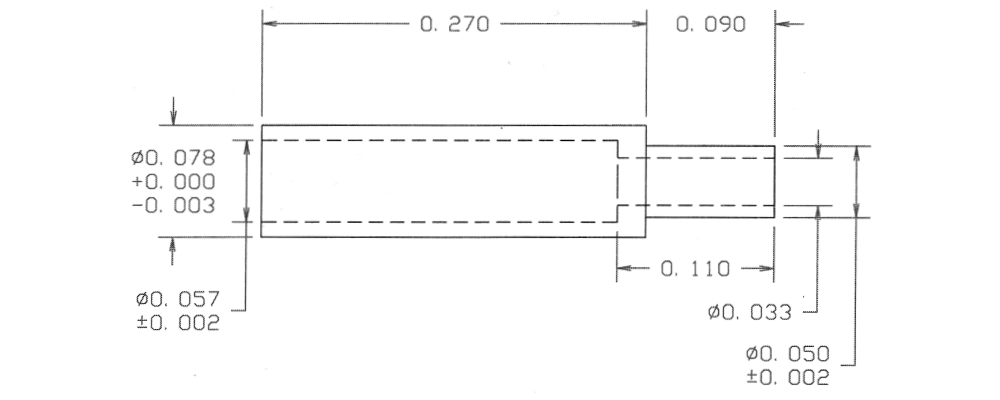

09-0152-2-088
09-0152-2-088
09-0152-2-088
0.360" - - Swage Mount 0.090" 1/16 0.055 Brass Bright Tin-Lead NO

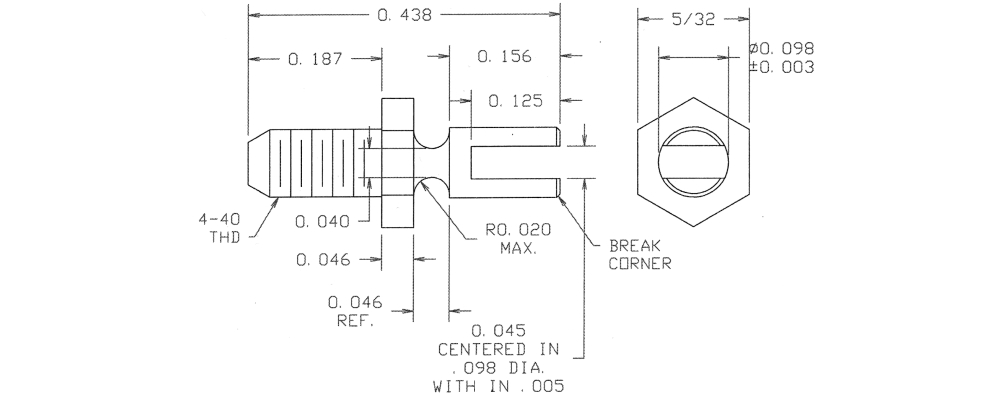

09-0185-1-044
09-0185-1-044
09-0185-1-044
0.438" - - 4-40 - - 4-40 THREAD Brass Bright Tin YES

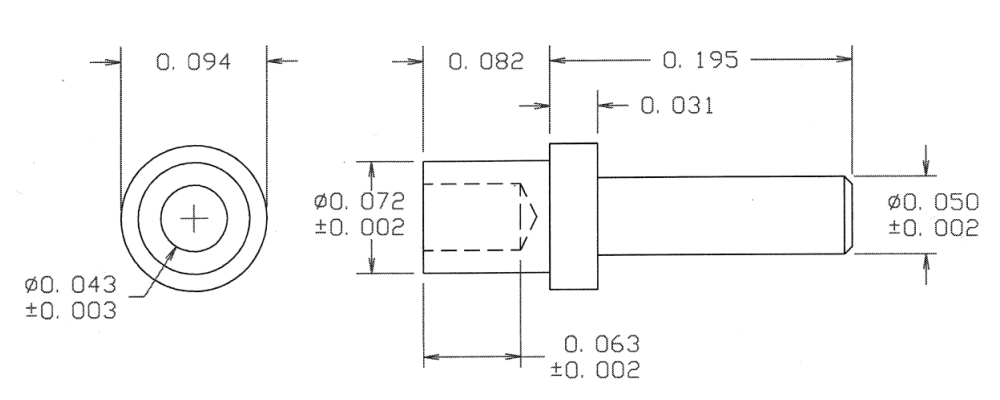

09-0233-2-04
09-0233-2-04
09-0233-2-04
0.277" 0.050 - Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES
